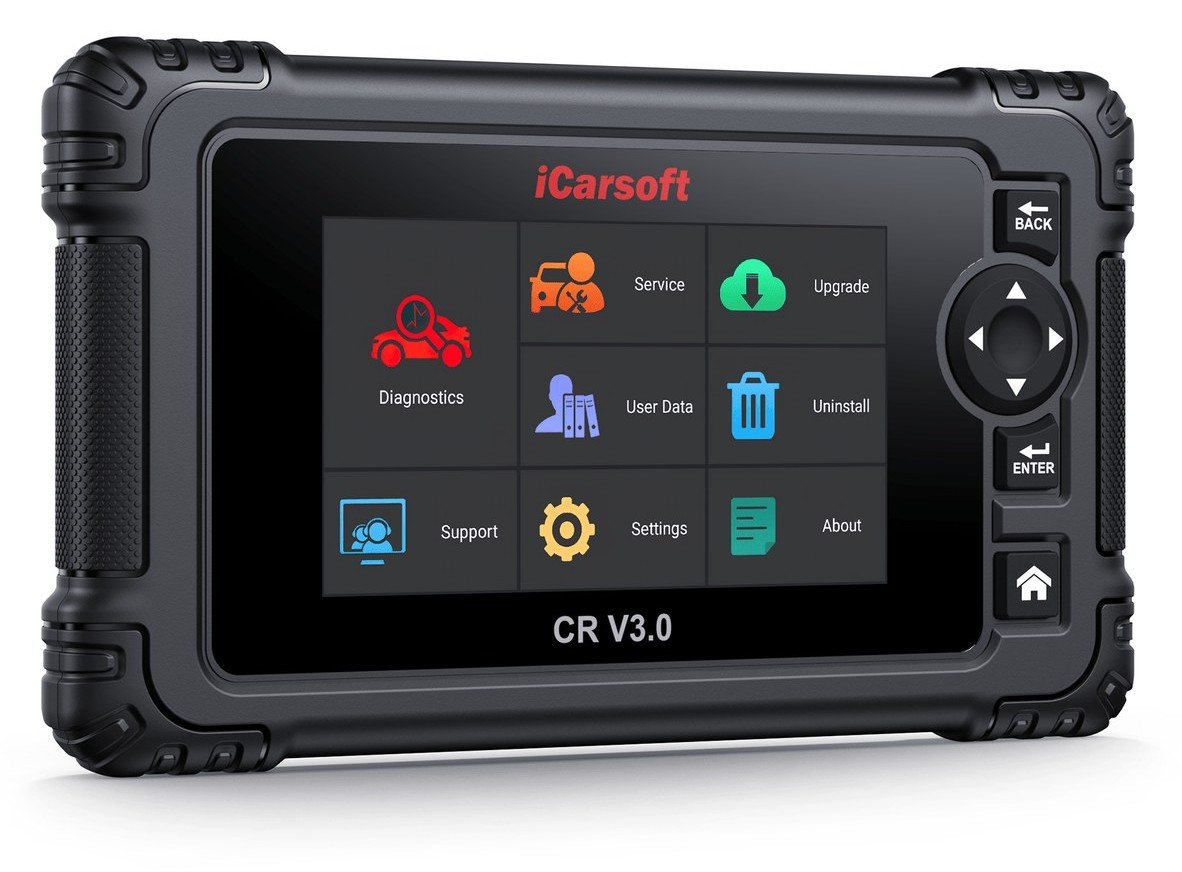

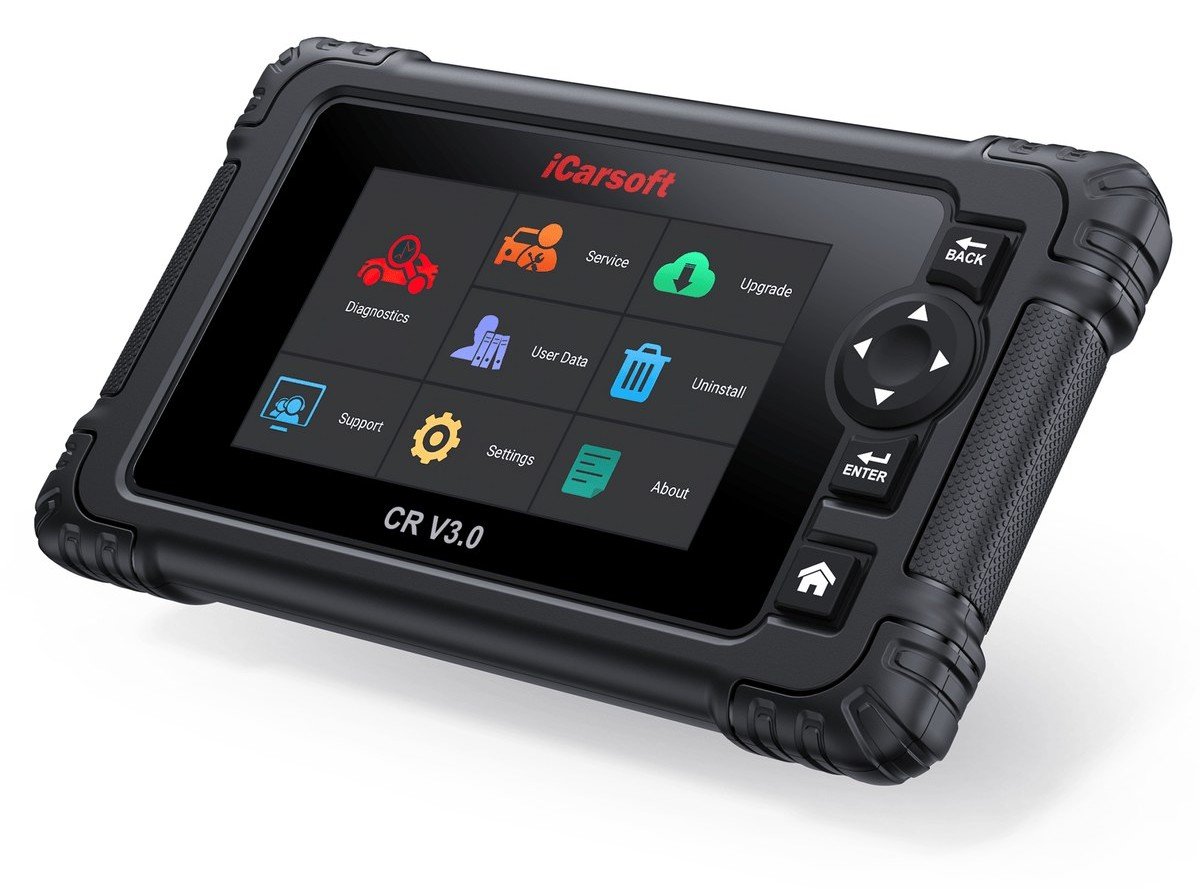

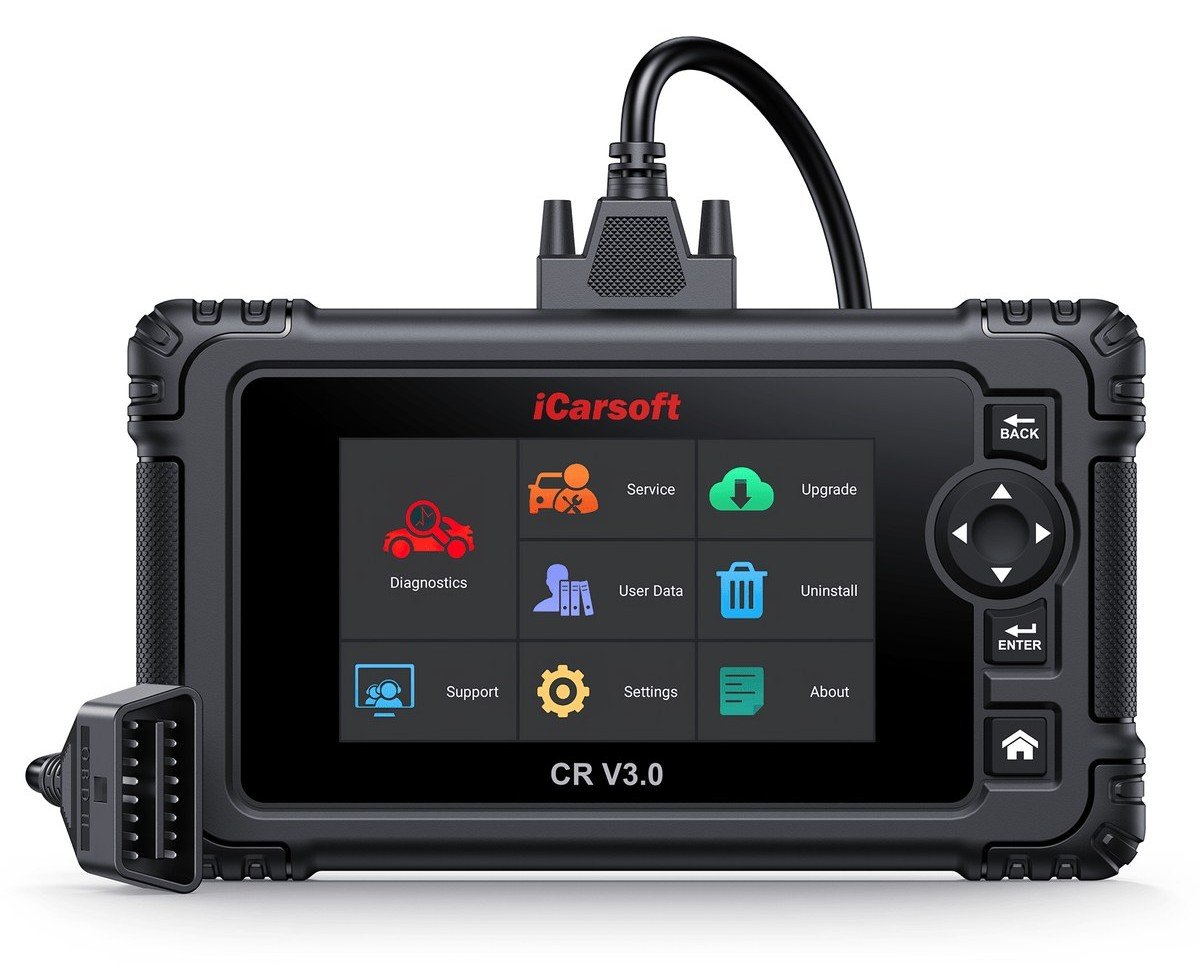

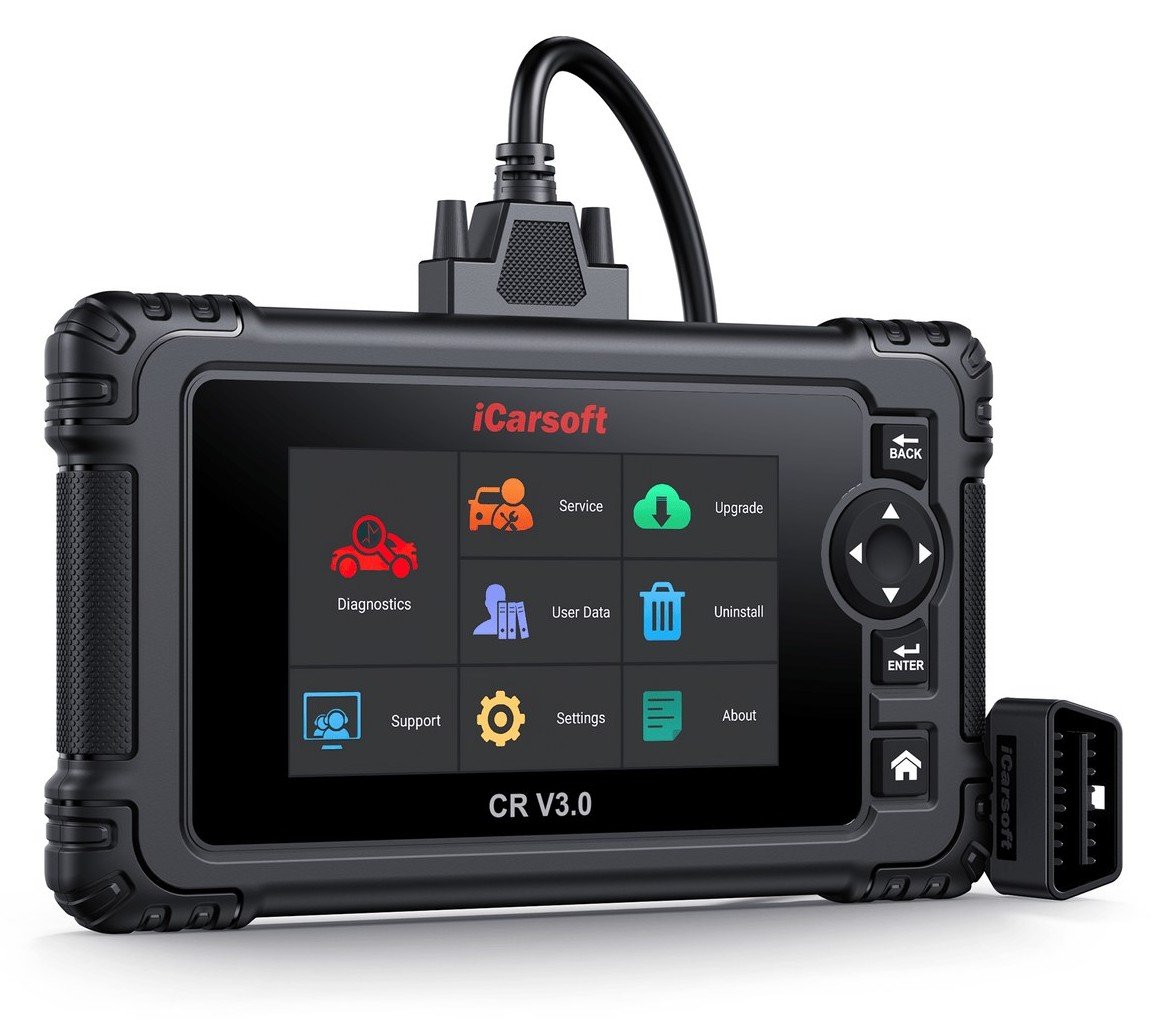

Skaner OBD2 iCarsoft CR V3.0

Modern successor to iCarsoft CR V2.0

iCarsoft CR V3.0 is a compact, multi-brand diagnostic tester designed for professional mechanics, independent workshops, users with multiple cars, and demanding hobbyists.

Compared to CR V2.0, the V3.0 model features a 5-inch touchscreen, Android system, Wi-Fi updates, and full bi-directional control / active tests.

The most important feature of this version is the ability to freely choose any 10 out of 27 available vehicle brand groups. This allows the user to tailor the device to the cars they actually service.

Select any 10 out of 27 brand groups

CR V3.0 allows the user to select and download 10 out of 27 available vehicle brand groups for free. This enables the tester to be configured for a specific workshop profile or personal set of cars.

The manufacturer states that the available 27 groups cover a total of 58 vehicle brands:

• 36 European brands,
• 5 American brands,
• 17 brands from the Asia-Pacific region.

Important: the device does not automatically activate all 27 groups simultaneously. The standard configuration includes 10 groups selected by the user.

Key advantages of iCarsoft CR V3.0

• Any 10 out of 27 vehicle brand groups
• Full diagnostics of all supported systems
• Advanced active tests / bi-directional control
• 48 service functions – 9 popular and 39 advanced
• Support for CAN-FD
• Support for DoIP
• AutoVIN – automatic vehicle identification
• 5″ HD touchscreen
• Android operating system
• 1.3 GHz Quad-Core processor
• 64 GB internal memory
• 5000 mAh battery
• Approximately 6 hours of continuous operation
• Lifetime free updates via Wi-Fi
• No mandatory subscription for updates
• 15 language versions, including Polish
• Full 10 OBDII modes
• Diagnostic history and reports

Full diagnostics of vehicle systems

CR V3.0 provides access not only to basic systems but also to more advanced electronic modules available in the car.

• engine control unit,
• automatic transmission,
• ABS and braking systems,
• SRS airbags,
• steering system,
• suspension systems,
• air conditioning and heating,
• body and comfort modules,
• power supply and energy management systems,
• other supported ECU modules.

Advanced diagnostic functions

• reading DTC fault codes from all available modules,
• clearing fault codes after repairs,
• reading ECU information, part numbers, and software versions,
• viewing LIVE DATA parameters in real-time,
• reading and clearing Freeze Frame data,
• accessing supported modules via standard 16-pin OBDII connector,
• saving diagnostic history,
• saving, sharing, and printing reports.

Advanced active tests and bi-directional control

CR V3.0 allows sending commands directly to supported controllers and actuators, enabling the mechanic to check the response of the component without disassembly.

The manufacturer lists, among other things, the ability to:

• activate the ABS pump,
• control window lifters,
• activate the fuel pump,
• open the throttle,
• perform output tests in many vehicle modules.

The availability of specific active tests depends on the brand, model, year, and version of the controller.

48 service functions

CR V3.0 integrates a total of 48 service functions:

• 9 popular service functions for daily maintenance and servicing,
• 39 advanced functions designed for professional technicians.

The range includes resets, adaptations, and service procedures available for specific vehicles. The manufacturer cites examples such as Oil Reset, DPF, TPMS, ABS, BMS, Injector, and other functions available in the service section.

Not every one of the 48 functions is available in every car.

CAN-FD and DoIP – ready for new vehicles

CR V3.0 supports modern communication protocols CAN-FD and DoIP.

• CAN-FD – the manufacturer indicates support for selected GM and Chrysler models from around 2020.
• DoIP – supported in compatible Volvo, Land Rover / Jaguar, and BMW models with F and G chassis.

The manufacturer declares that the standard kit includes an RJ45 cable, a network cable, and a cable required for selected BMW F chassis to support DoIP.

AutoVIN – automatic vehicle identification

The AutoVIN function allows for automatic reading of the VIN number and recognition of the vehicle in supported models.

If AutoVIN does not recognize the car, the vehicle can be selected manually. The lack of automatic identification does not automatically mean a lack of diagnostic support.

Full 10 OBDII / EOBD modes

CR V3.0 supports all 10 standard OBDII diagnostic modes for compatible vehicles from 1996 onwards.

• reading fault codes,
• clearing codes,
• I/M Readiness,
• LIVE DATA,
• Freeze Frame,
• vehicle information,
• O2 sensor monitor test,
• on-board monitor tests,
• EVAP system test,
• Pending Codes.

Supported standards include OBDII, EOBD, JOBD, KOBD, CAN, and CAN-FD in compatible vehicles.

Lifetime free Wi-Fi updates

The manufacturer provides for CR V3.0 lifetime free software updates with no annual fees, renewals, or paid unlocks.

Updates are delivered wirelessly via Wi-Fi. The device does not require a computer for standard vehicle and software database updates.

15 language versions, including Polish

CR V3.0 supports 15 languages:

• Polish,
• English,
• German,
• French,
• Dutch,
• Spanish,
• Czech,
• Swedish,
• Russian,
• Hungarian,
• Norwegian,
• Portuguese,
• Italian,
• Danish,
• Finnish.

Diagnostic history and reports

CR V3.0 allows for the documentation of tests performed.

• quick access to previously diagnosed vehicles and systems,
• saving diagnostic reports,
• sharing reports,
• printing data when connected to a Windows computer via USB,
• Feedback function for reporting issues to the iCarsoft technical team.

Technical specifications

• Operating system: Android
• Processor: Quad-Core 1.3 GHz
• Internal memory: 64 GB
• Screen: 5″ LCD, capacitive touchscreen
• Resolution: 854 × 480 px
• Connectivity: USB 2.0 / Wi-Fi 2.4 GHz / OBDII
• Battery: 3.7 V / 5000 mAh / 18.5 Wh
• Operating time: approximately 6 hours of continuous use
• USB Type-C input: 5 V / 2 A
• Current consumption: approximately 500 mA at 3.7 V with LCD and Wi-Fi on
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Operating humidity: 5–95%, non-condensing
• Dimensions: 210 × 120 × 31 mm
• Net weight: approximately 510 g

Supported communication protocols

• ISO 9141-2,
• ISO 14230-2,
• ISO 15765,
• K-Line and L-Line,
• Flashing Code,
• SAE J1850 VPW,
• SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN-FD,
• SAE J2610,
• GM UART,
• UART Echo Byte Protocol,
• Honda Diag-H Protocol,
• TP2.0,
• TP1.6.

CR V3.0 vs CR V2.0 – key differences

CR V3.0 is the direct successor to CR V2.0. Both devices support full system diagnostics, AutoVIN, and allow the selection of 10 out of 27 brand groups.

• CR V2.0: 4″ screen, physical buttons, USB updates via computer.
• CR V3.0: 5″ touchscreen, Android, Wi-Fi updates, and full active tests / bi-directional control.

CR V3.0 also features 39 advanced service functions, which the manufacturer does not declare for CR V2.0 to a comparable extent.

Who is iCarsoft CR V3.0 intended for?

• for professional automotive mechanics,
• for independent workshops servicing specific brand groups,
• for users with multiple cars from different manufacturers,
• for services requiring full diagnostics of all systems,
• for workshops performing active tests and service functions,
• for mobile diagnosticians,
• for demanding private users looking for a compact tester with Android.

Why choose iCarsoft CR V3.0?

iCarsoft CR V3.0 is particularly attractive for users who do not need a full package of all brands but expect the functionality of a professional tester.

The ability to select any 10 out of 27 brand groups allows tailoring the device to the needs of a specific workshop. At the same time, the tester offers full system diagnostics, active tests, 48 service functions, CAN-FD, DoIP, AutoVIN, and all 10 OBDII modes.

The 5-inch touchscreen, Android, 64 GB memory, and lifetime free Wi-Fi updates make CR V3.0 a clear step forward compared to the button-operated CR V2.0.

Important information regarding compatibility

The standard configuration of CR V3.0 allows selecting 10 out of 27 available brand groups. The device should not be described as a tester with all 27 groups active simultaneously.

The scope of diagnostics, active tests, and service functions depends on the specific brand, model, year, target market, and the controllers used. Before purchasing for a specific car, we recommend checking compatibility by VIN number.

Not every one of the 48 service functions or bi-directional control functions is available in every car.

On the manufacturer's current website in the FAQ section, there is a mention of "advanced ECU coding" as one of the differences compared to CR V2.0, however, the main product function section does not define the scope of ECU coding for CR V3.0. Therefore, in this description, we do not declare ECU coding as a standard function without additional confirmation of compatibility.
