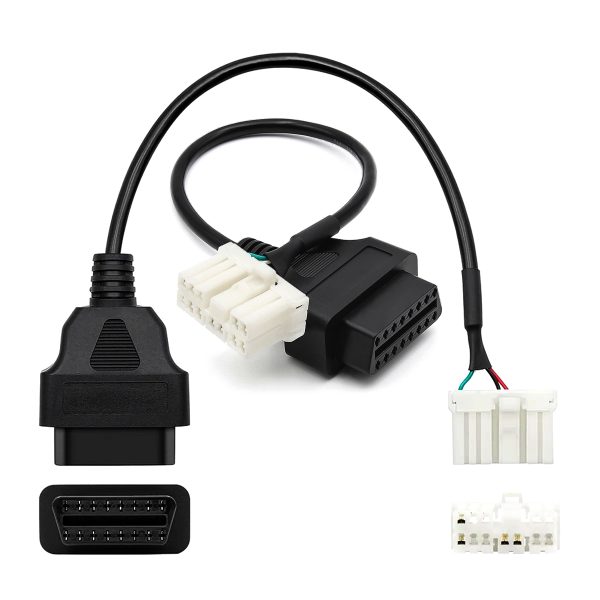

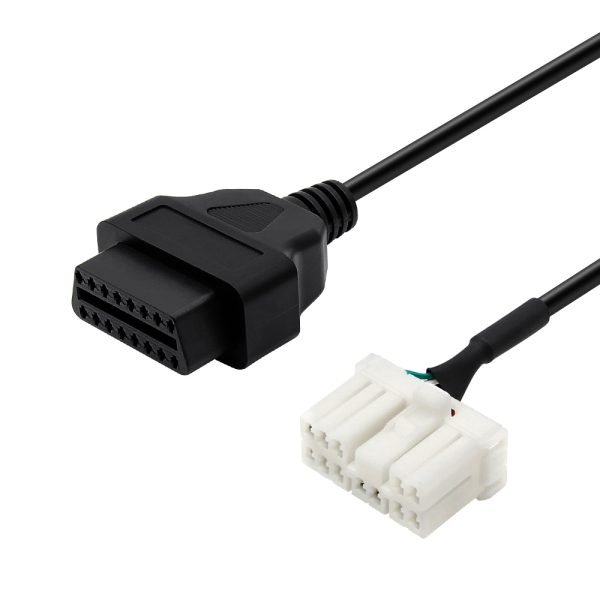

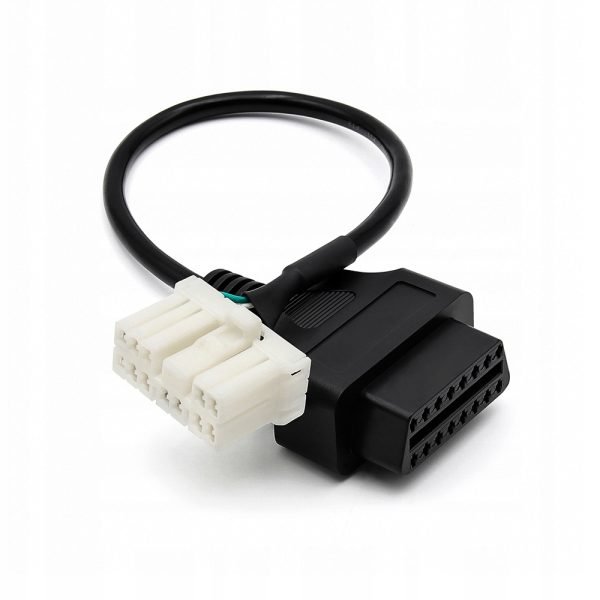

Adapter Tesla 12 pin - model S, X - 2012-2015

Wired connection adapter, without its own screen and self-diagnostic functions.
Allows the use of a compatible CAN/OBD2 reader with USB, Bluetooth, or Wi-Fi communication, provided that the reader and application work together.
Does not require separate software for the operation of the adapter itself; the diagnostic application and any drivers depend on the reader used.
Does not actively convert communication protocols and does not provide access to Tesla Toolbox service functions.

Compatibility Details

• Tesla Model S (2012–2015): compatibility requires confirmation of the factory 12 PIN socket and signal outputs in the specific vehicle.
• Tesla Model X: among the specified range of model years, it applies to selected units from 2015; Model X was not produced in 2012–2014.
• Later model years of Model S and Model X: may use different connectors or diagnostic solutions; compatibility should be verified individually.
• Model 3 and Model Y: are not covered by the declared use of this adapter.

Sample Parameters:

The range of data depends on the vehicle version, reader, and program capabilities. The following may be available:

• Temperatures of selected traction battery components.
• Voltage, current intensity, and other provided electrical values.
• Selected information about charging, energy management, and energy consumption.
• Parameters of the electric drive and auxiliary systems.
• Data used by the application to estimate battery condition, if supported.
• Preview and recording of selected parameters in real-time.

The adapter does not guarantee reading or clearing all faults, coding, programming, driver software updates, or access to all vehicle modules.

NOTE

If you plan to purchase an OBD2 / 12-pin adapter for Tesla S and Tesla X models from 2012-2015, it is advisable to check in advance whether your diagnostic socket in the vehicle is compatible with this adapter.

The OBDII 12-pin adapter for Tesla S and X models produced in 2012-2015 allows the connection of an OBD2 Diagnostic Interface to the socket in the car, which will facilitate monitoring and diagnosing its condition.

Reader and Application Selection

To read data, a tester that supports the signals provided by the car and a compatible application are needed. Examples of solutions used for analyzing Tesla data include selected OBDLink readers and the Scan My Tesla and TM-SPY applications. Mentioning names does not imply confirmation of compatibility for every version of the device or program.

A universal OBD2 scanner or a cheap ELM327 interface does not guarantee communication with this car. Before purchasing, check the list of supported interfaces in the chosen application.

Package Contents

• 1 × Tesla 12 PIN diagnostic adapter – OBD2 16 PIN.
