The set is suitable for all installations using LPG hoses between the reducer and injectors with a diameter of 12mm. The liquid phase filter protects the installation from solid contaminants that could negatively affect the system's operation. The filter is located between the reducer (vaporizer) and the gas injector rail. The filter's task is to protect the injector rail from solid contaminants present in the vapor phase of the gas, and its role is to protect against operational disturbances caused by impurities in the gas. We recommend replacing the filters every 10,000 kilometers. Replacing the filters as recommended significantly extends the lifespan of the entire gas system.

Contents of the set:

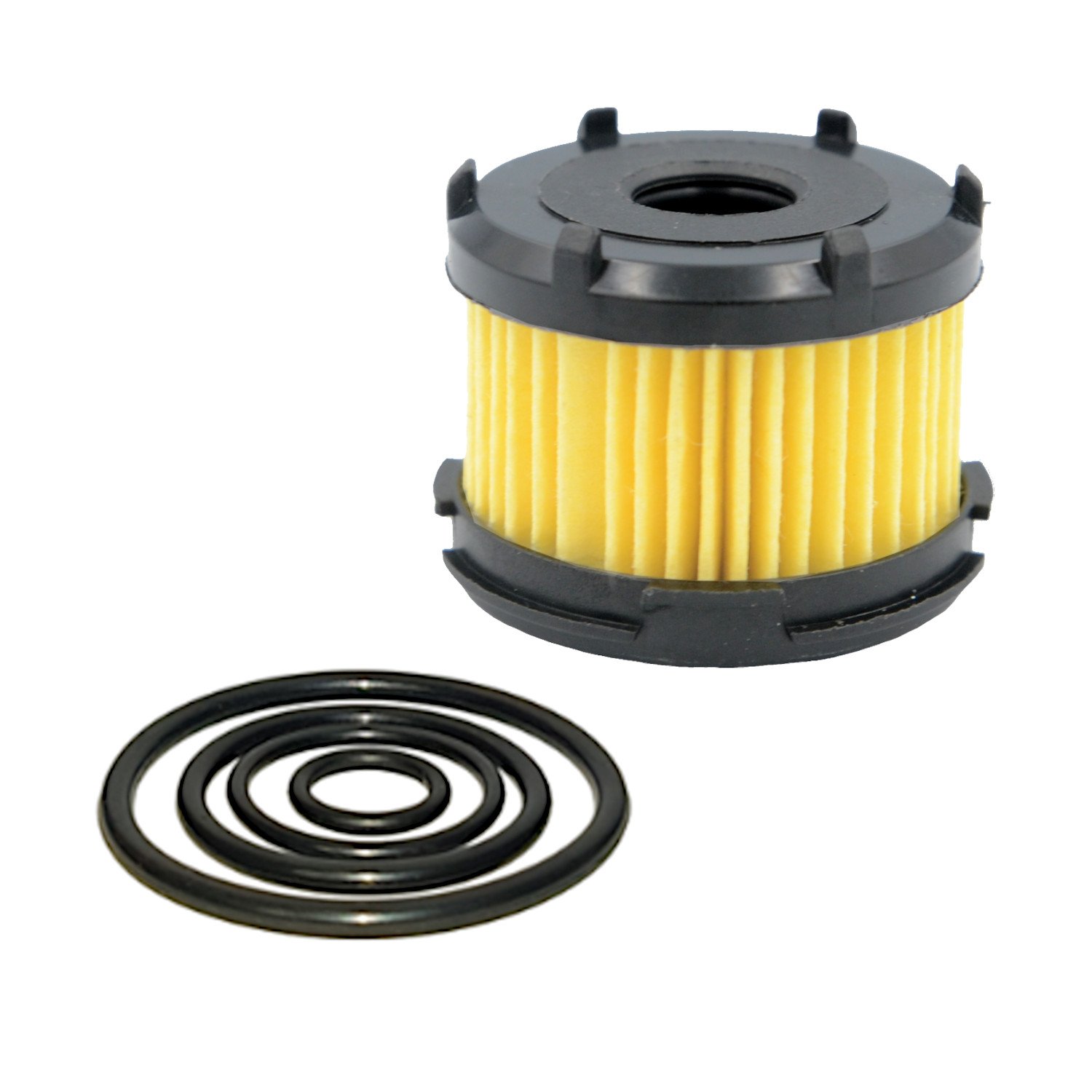

• BRC liquid phase filter
• 4 O-rings (including one built-in)
• FL01S vapor phase filter 12/12
• Access to a comprehensive database of LPG diagnostic programs on our website

Technical specifications:

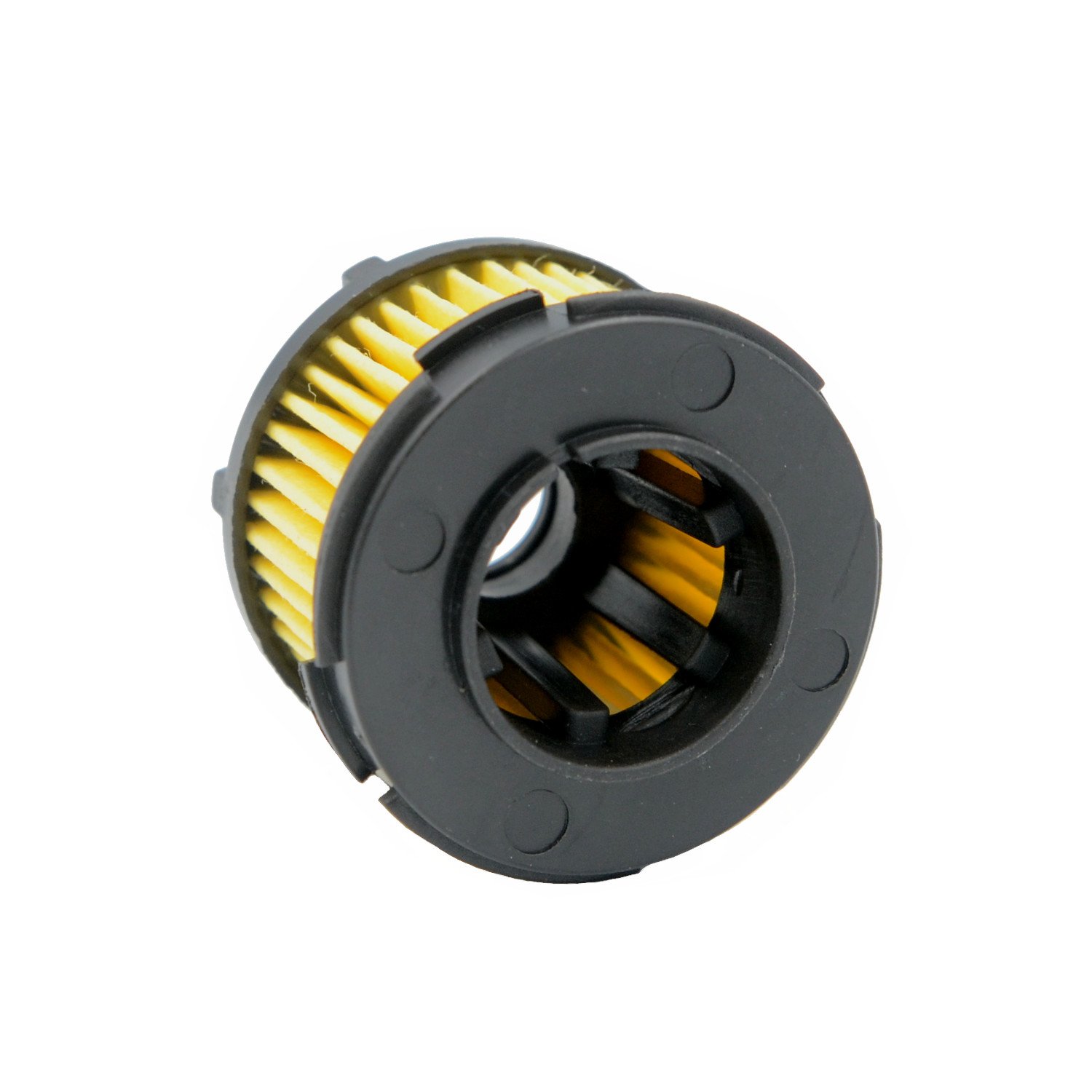

BRC Liquid Phase Filter

• Height: 28.8 mm
• Upper outer diameter: 33.5 mm
• Lower outer diameter: 33 mm
• Inner hole diameter: 21 mm
• Inner hole diameter: 19 mm
• Filtering material: paper

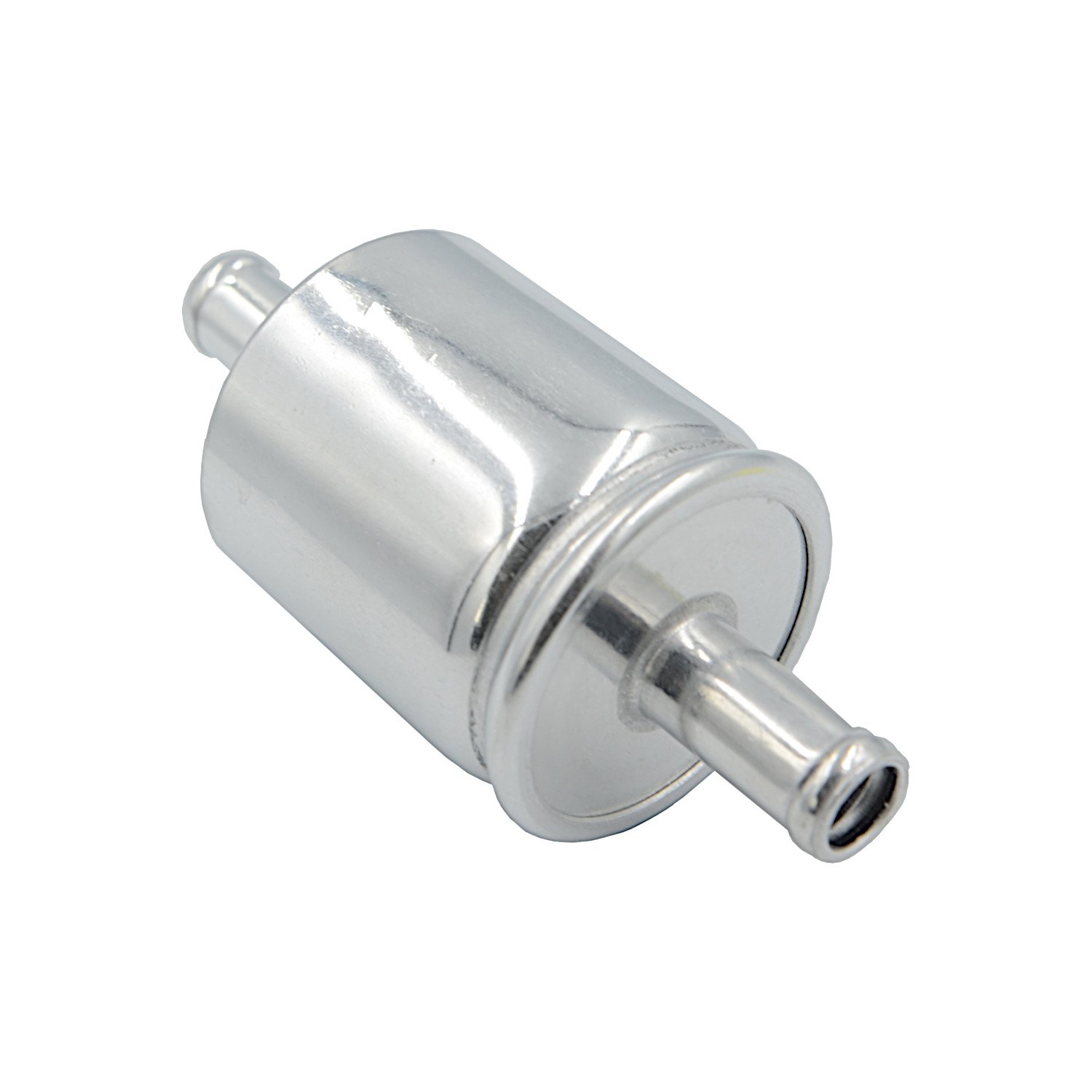

FL01S Vapor Phase Filter 12/12

• Length including fittings - 110 mm
• Outer diameters of fittings - 12 mm
• Filter housing diameter - 45 mm
• Sensor socket diameter - 12mm
• Housing material- aluminum
• Type of insert- paper
• Operating temperature -20°C - +105°C
• Filtering surface- 0.031 m2
• Flow rate- 12 l/s

IMPORTANT INFORMATION: We offer a wide selection of filters for most LPG installations!
