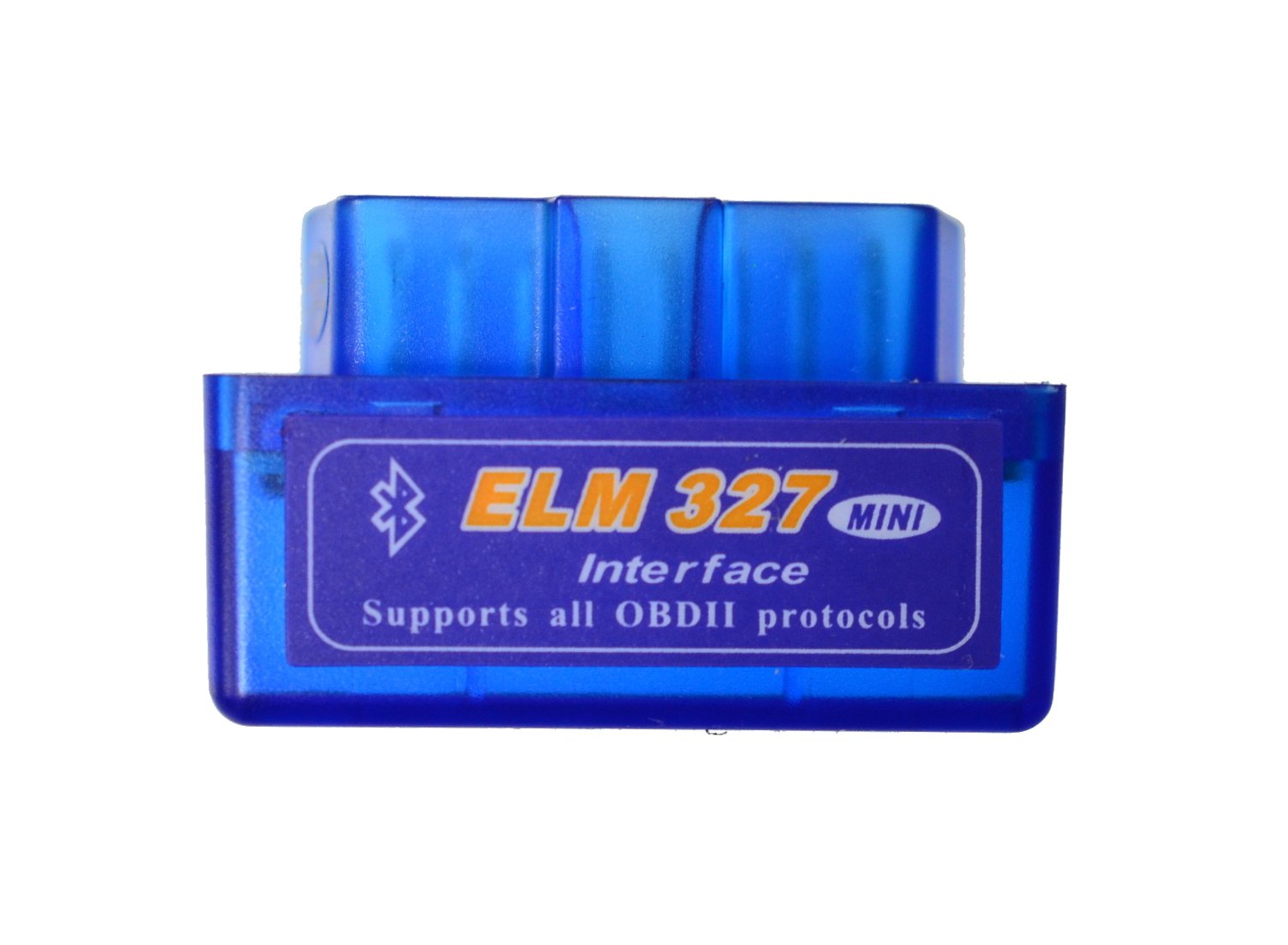

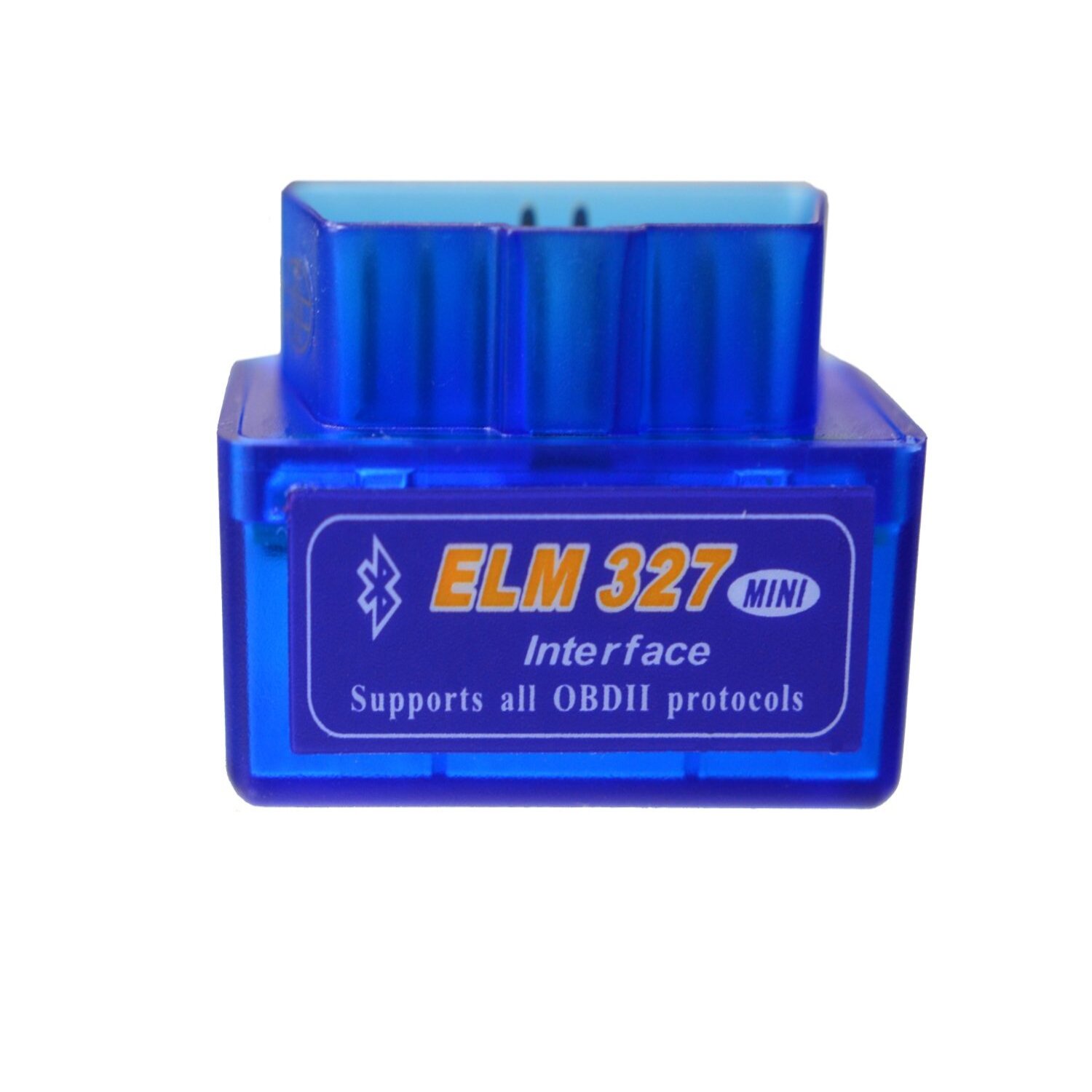

OBD2 interface ELM327 Bluetooth Mini

We are offering a professional diagnostic interface ELM 327 BLUETOOTH MINI. You can use it with any computer with bluetooth module or mobile device with android, Symbian or Windows Mobile system. The device works with all Windows systems.

This interface is fully compliant with OBD2 communication standard. It supports most of the popular communication protocols. The device is designed for engine electronics diagnostics in cars of all manufacturers

• DIAGNOSTICS OF ENGINE ELECTRONICS
• Reading and deleting errors
• LIVE DATA READING
• Reading of frozen frames

DEVICE FEATURES

• Reading/deleting errors in OBD2 / EOBD / JOBD / CAN
• Reading of pending trouble codes
• Read manufacturer specific trouble codes
• Read freeze frames (FREEZE FRAMES)
• Clearing the CHECK ENGINE and MIL lights
• Monitoring of engine operating parameters in real time (LIVE DATA), e.g.: boost pressure, lambda probe signal, temp. sensor signal, flow meter, throttle position, etc.)
• Monitoring of engine power (LIVE DATA)
• Measurement of engine power (KM)Measurement of other parameters from 0-100 km/h

SUPPORTED MODELS

• GENERAL MOTORS FROM 1996 CURRENT TO CURRENT
• FORD FROM 1996 TO CURRENT
• GENERAL MOTORS FROM 1996 TO CURRENT
• CHRYSLER FROM 1996 CURRENT
• TOYOTA FROM 1996 CURRENTLY
• HONDA FROM 1996 CURRENT
• NISSAN FROM 1996 CURRENT
• ALL OTHER EUROPEAN AND ASIAN BRANDS WITH OBD2 CONNECTORS FROM 1996 CURRENT
• ALL NEW CARS WITH CAN PROTOCOL
.

DIESEL ENGINE CARS, regardless of their make and origin, have only been serviced since 2004 (OBD2 became compulsory)

TO BenzINES OBD2 STANDARD WAS INTRODUCED IN 2000, MANY BenzINES HAVE ALREADY HAVE IT EARLY AND WITH THESE CARS WE CAN CONNECT TO THIS INTERFACE.

SUPPORTED PROTOCOLS

• SAE J1850 PWM(41.6KBAUD)
.
• SAE J1850 VPW(10.4KBAUD)
.
• ISO9141-2(5 BAUD INIT,10.4KBAUD)
.
• ISO14230-4 KWP(5 BAUD INIT,10.4 KBAUD)
.
• ISO14230-4 KWP(FAST INIT,10.4 KBAUD)
.
• ISO15765-4 CAN(11BIT ID,500 KBAUD)
.
• ISO15765-4 CAN(29BIT ID,500 KBAUD)
.
• ISO15765-4 CAN(11BIT ID,250 KBAUD)
.
• ISO15765-4 CAN(29BIT ID,250 KBAUD)
.

IS YOUR VEHICLE OBDII/EOBD COMPLIANT ?

The OBDII system is the current standard for cars sold

• since 1 January 1996 in the USA
• since 1 January 2001 in the European Union
• since 1 January 2002 in Poland
• all with DIESEL engine after 1 January 2004

Some cars had OBDII connector even before OBDII compliance was imposed on manufacturers.

Conditions that OBDII compliant cars must meet

• 16-pin connector
• two or more oxygen sensors
• emissions sticker - usually placed under the bonnet or by the radiator. The sticker indicates whether the vehicle is OBDII certified.

PACKAGE CONTENT

• Interface ELM 327 mini
• Access to free software - downloadable from our server
