Interfejs OBD2 ELM327 ICarPRO Vgate BLUETOOTH 4.0

Vgate iCar Pro Bluetooth 4.0 – Car Diagnostics on Your Smartphone

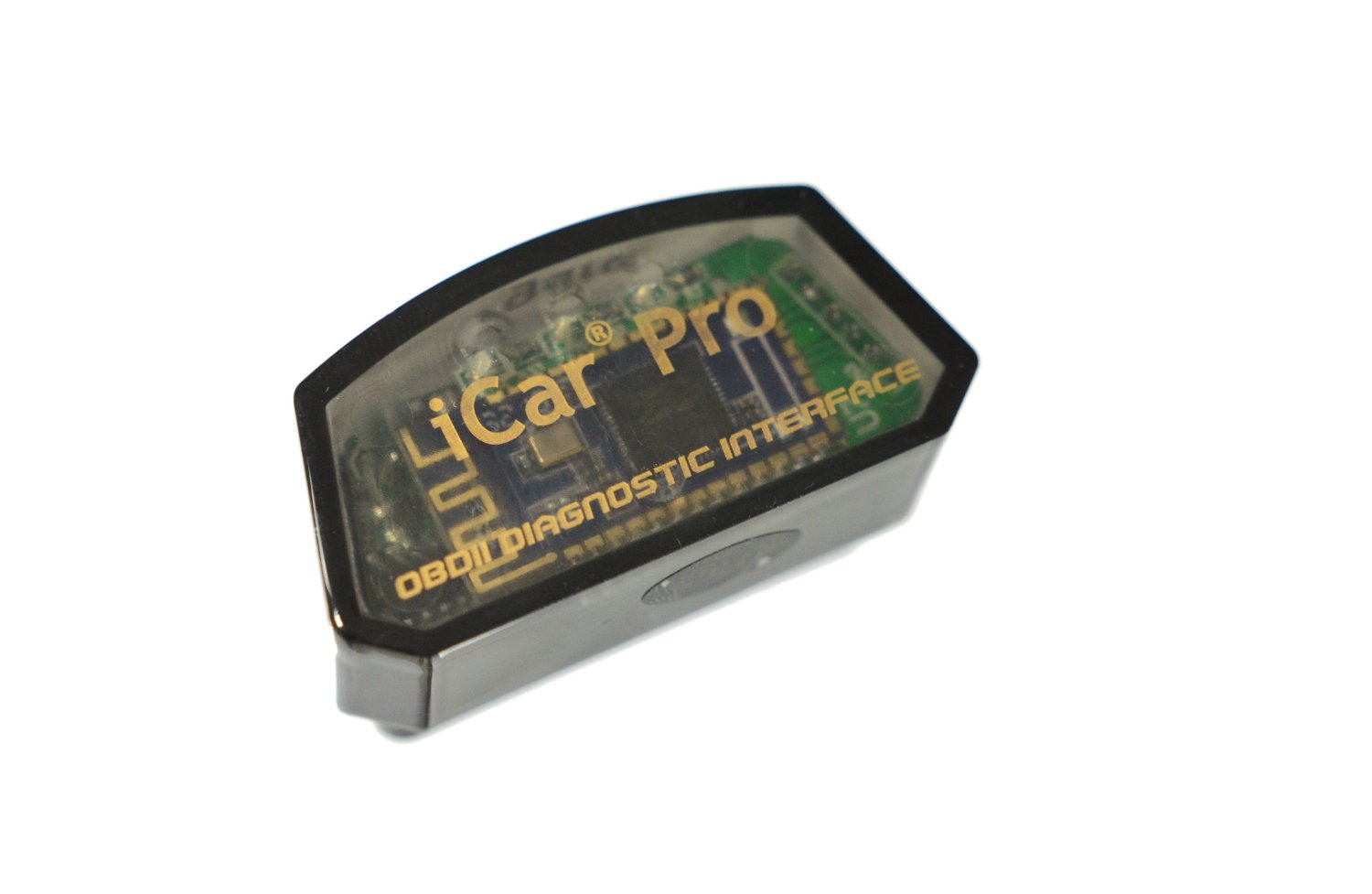

Vgate iCar Pro Bluetooth 4.0 BLE is a compact OBD2/EOBD diagnostic interface that uses communication compliant with ELM327 commands. It allows you to connect your car's electronics to the appropriate app on your smartphone or tablet and read the information provided by the onboard diagnostic system.

The Bluetooth 4.0 Low Energy (BLE) version is designed for both Android devices and iPhones and iPads (iOS), as long as the app used supports this type of interface. It should not be confused with the older Bluetooth 3.0 version or the newer iCar Pro 2S.

The device is powered from the car's 16 PIN OBD2 diagnostic socket. It does not require a separate USB cable, external battery, or subscription for using the interface.

Key Advantages of Vgate iCar Pro BT 4.0

• Bluetooth 4.0 BLE – wireless communication with supported phones and tablets.
• Android and iOS – compatibility with iPhone using an app that supports BLE.
• OBD2 / EOBD Diagnostics – basic data and codes primarily related to the engine and emissions.
• ELM327 – compatibility with popular apps using standard diagnostic commands.
• Live Data – real-time view of parameters provided by the vehicle's controller.
• Reading and clearing errors – within the standard OBD2 range, after the cause of the fault has been resolved.
• Freeze Frame – reading data saved during specific faults, if supported by the vehicle and app.
• Automatic sleep mode – reducing power consumption during inactivity.
• Compact size – the interface does not require running wires throughout the cabin.

Standard OBDII Diagnostic Functions

• Reading DTC fault codes for the engine and systems covered by the OBD2 standard.
• Clearing selected DTC codes and the associated CHECK ENGINE light, if allowed by the controller.
• Reading current Live Data parameters (PID), such as engine RPM, coolant temperature, vehicle speed, or selected sensor values.
• Reading Freeze Frame data when saved by the ECU.
• Checking I/M Readiness monitors and the status of selected emission tests.
• Reading vehicle information, such as VIN, if available in OBD2 modes.
• Displaying gauges, graphs, and logging parameters – depending on the capabilities of the selected app.

Note: The availability of specific data and modes depends on the car, its ECU, and the software. The interface itself does not add functions that the vehicle does not provide.

What is iCar Pro Useful For?

The interface is useful for preliminary diagnostics of the CHECK ENGINE light, checking basic engine parameters, verifying errors before visiting a workshop, and monitoring the readiness of emission systems. It also facilitates observing the vehicle's performance after repairs.

This solution is for drivers, DIY enthusiasts, and users who want to use parameter displays on their phones. However, it does not replace a specialized service tester designed for all modules of a specific brand.

Which Cars Does It Work With?

Vgate iCar Pro BLE 4.0 is designed for passenger cars and light vehicles with a 12 V electrical system compliant with OBD2/EOBD standards. Approximate requirements for the diagnostic system:

• Europe – gasoline: typically from the model year 2001.
• Europe – diesel: typically from the model year 2004.
• USA: vehicles covered by OBD2 typically from the model year 1996.

The provided dates are approximate reference points for OBD2/EOBD regulations and not a guarantee of support for every brand, engine version, or function. Older vehicles requiring non-standard protocols or adapters, as well as 24 V trucks, may not be supported. The mere presence of a 16 PIN connector does not confirm full compatibility.

Supported Standard OBDII Protocols

• ISO 15765-4 CAN
• ISO 9141-2
• ISO 14230-4 KWP2000
• SAE J1850 PWM
• SAE J1850 VPW

The interface automatically works with the standard protocol used by the supported vehicle and diagnostic application. It is not a universal interface for all buses and vehicle manufacturer controllers.

Android, iOS, and Selected Computer Programs

• Android: phone or tablet equipped with Bluetooth and an app that supports Vgate iCar Pro BLE / ELM327.
• iOS (iPhone / iPad): app with support for Bluetooth Low Energy 4.0; the connection is usually configured within the app.
• Windows / macOS: support is only possible with a compatible Bluetooth LE adapter and a program that supports this interface; this does not guarantee the operation of all ELM327 programs.

Important for iPhone: do not expect the device to appear on the standard list of traditionally paired Bluetooth accessories. In the app, select the Bluetooth LE (4.0+) type and search for the correct adapter, e.g., IOS-Vlink.

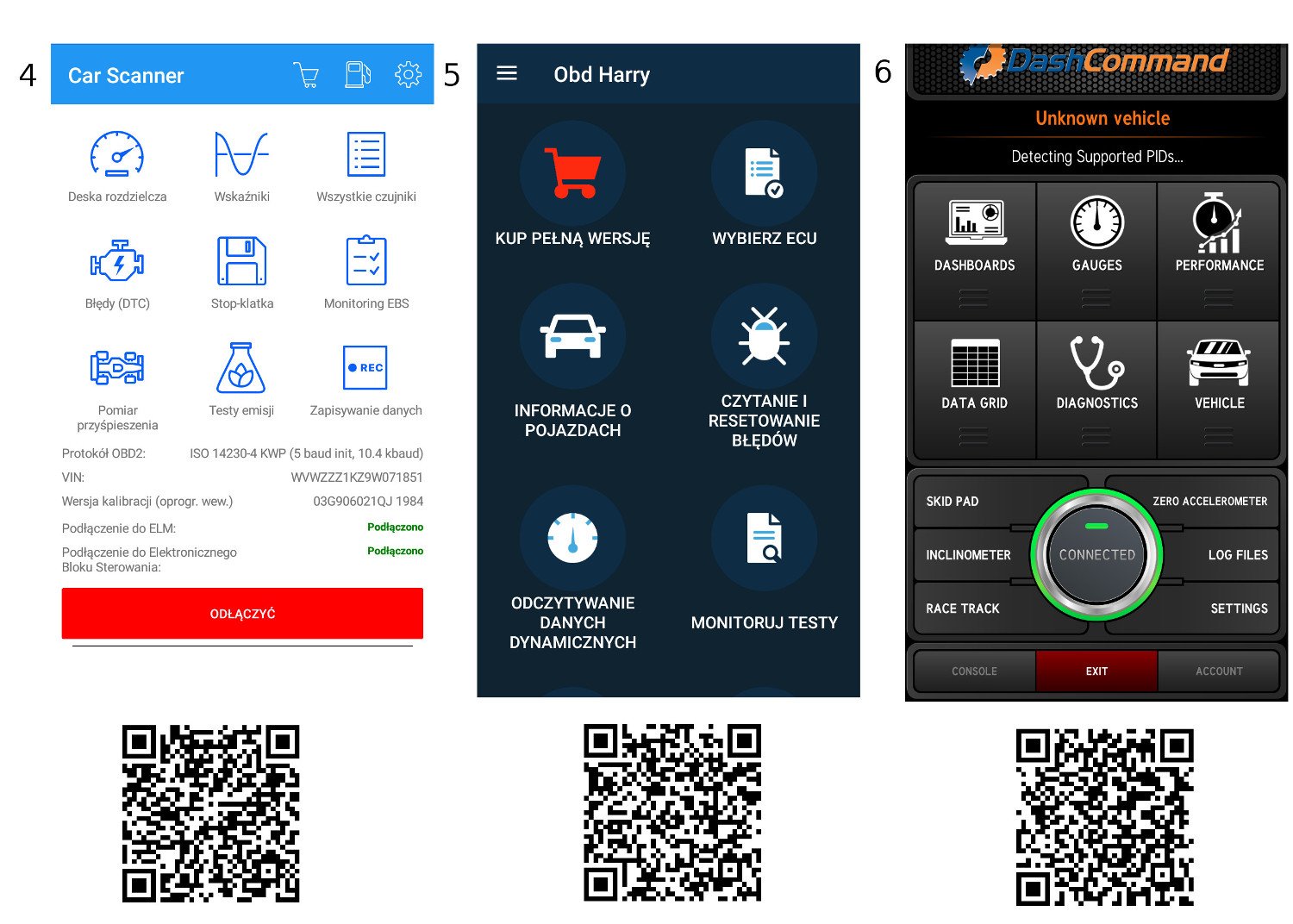

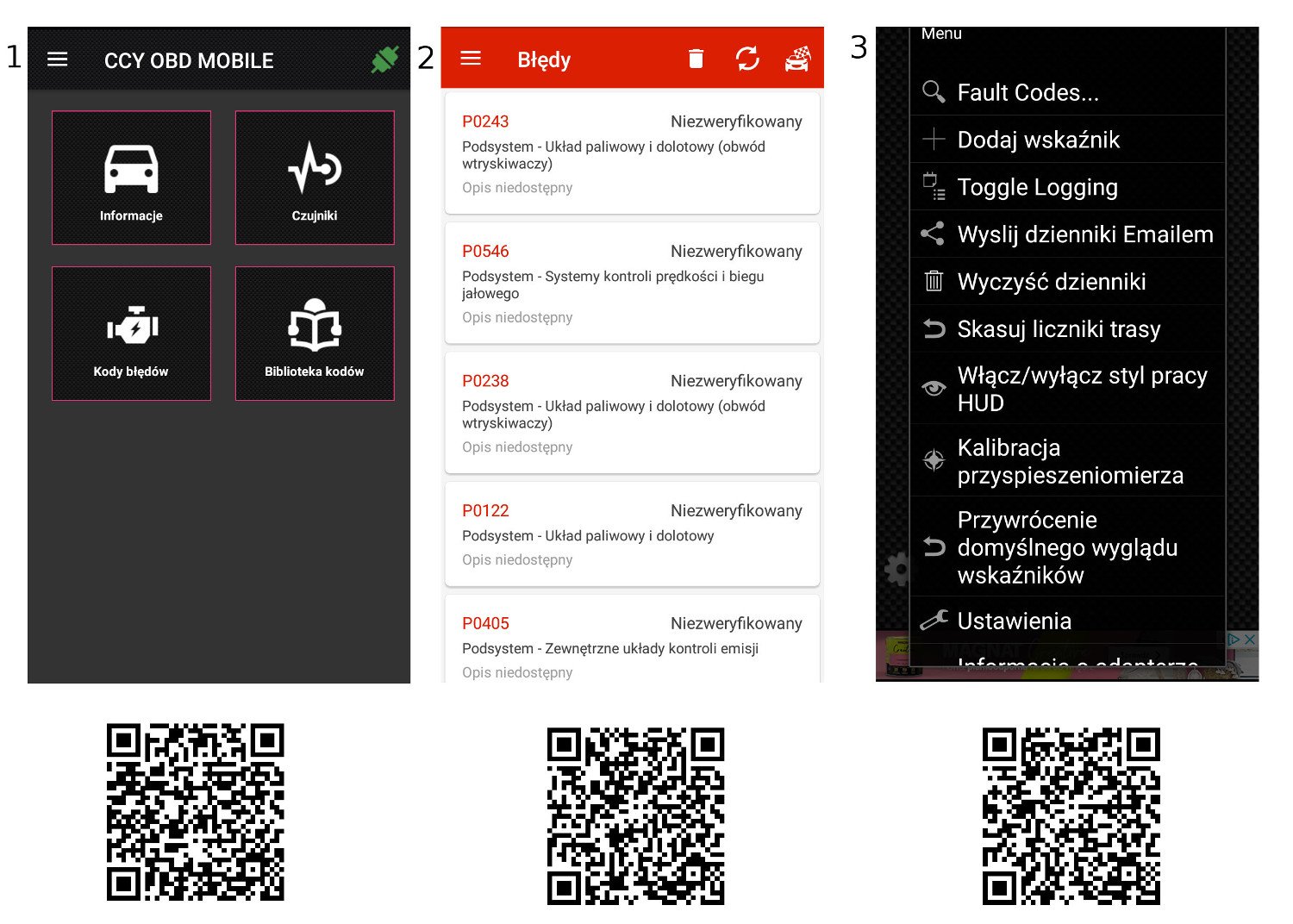

Example Applications for Collaboration

• Car Scanner ELM OBD2 – Android / iOS; diagnostics of standard parameters and codes, with functions dependent on the vehicle.
• OBD Auto Doctor – Android / iOS; app recommended in the manufacturer's instructions.
• OBD Fusion – supported platforms and functions depend on the version of the app.
• Torque Lite / Torque Pro – Android; the appropriate type of adapter must be selected.

The list is for illustrative purposes. Before choosing an app, check if the current version supports Vgate iCar Pro Bluetooth 4.0 BLE and the expected functions. Some programs and extensions are paid. Diagnostic software is not built into the interface.

How to Connect Vgate iCar Pro Bluetooth 4.0 to Your Car?

1. Check if the car supports the OBD2/EOBD standard and has a 16 PIN OBD2 socket.
2. Connect the interface to the diagnostic socket – it is usually located under the dashboard.
3. Turn on the ignition (in some tests, start the engine, according to the app's instructions).
4. Install an app that supports ELM327 Bluetooth 4.0 BLE, such as Car Scanner or OBD Auto Doctor.
5. Android: turn on Bluetooth; if the app requires it, pair the Android-Vlink device (code 1234), then select the adapter in the app.
6. iPhone / iPad: turn on Bluetooth, and start the connection directly in the app by selecting Bluetooth LE 4.0 and the IOS-Vlink device; traditional pairing in system settings is usually not needed.
7. Once connected, select error reading, Live Data, or another available function.

If the connection does not work, check the Bluetooth permissions in the app, the correctness of the selected device, and whether the adapter is not already in use by another phone or program.

What to Expect from the ELM327 OBD2 Interface?

Vgate iCar Pro Bluetooth 4.0 is not a full multi-brand workshop tester. Standard OBD2 access primarily concerns diagnostics of the powertrain and emissions.

• ABS, SRS (airbag), ESP, comfort, and transmission: full support for these modules is not guaranteed. Some apps may offer additional functions for selected vehicles but require separate compatibility confirmation.
• ECU programming, key coding, immobilizer, adaptations, and advanced service: these are not standard functions of this kit.
• DPF service, EPB, inspection reset: availability does not stem from the interface itself; the app, model, and year of the car should be checked separately.
• LPG installations: the OBD2 interface does not replace a dedicated cable for direct adjustment of the gas controller.
• Older vehicles and manufacturer networks: may require additional equipment or a different tester.

Technical Specifications

• Brand: Vgate
• Model: iCar Pro Bluetooth 4.0 BLE
• Product type: wireless OBDII / EOBD diagnostic interface compliant with ELM327 commands
• Connectivity: Bluetooth 4.0 Low Energy (BLE)

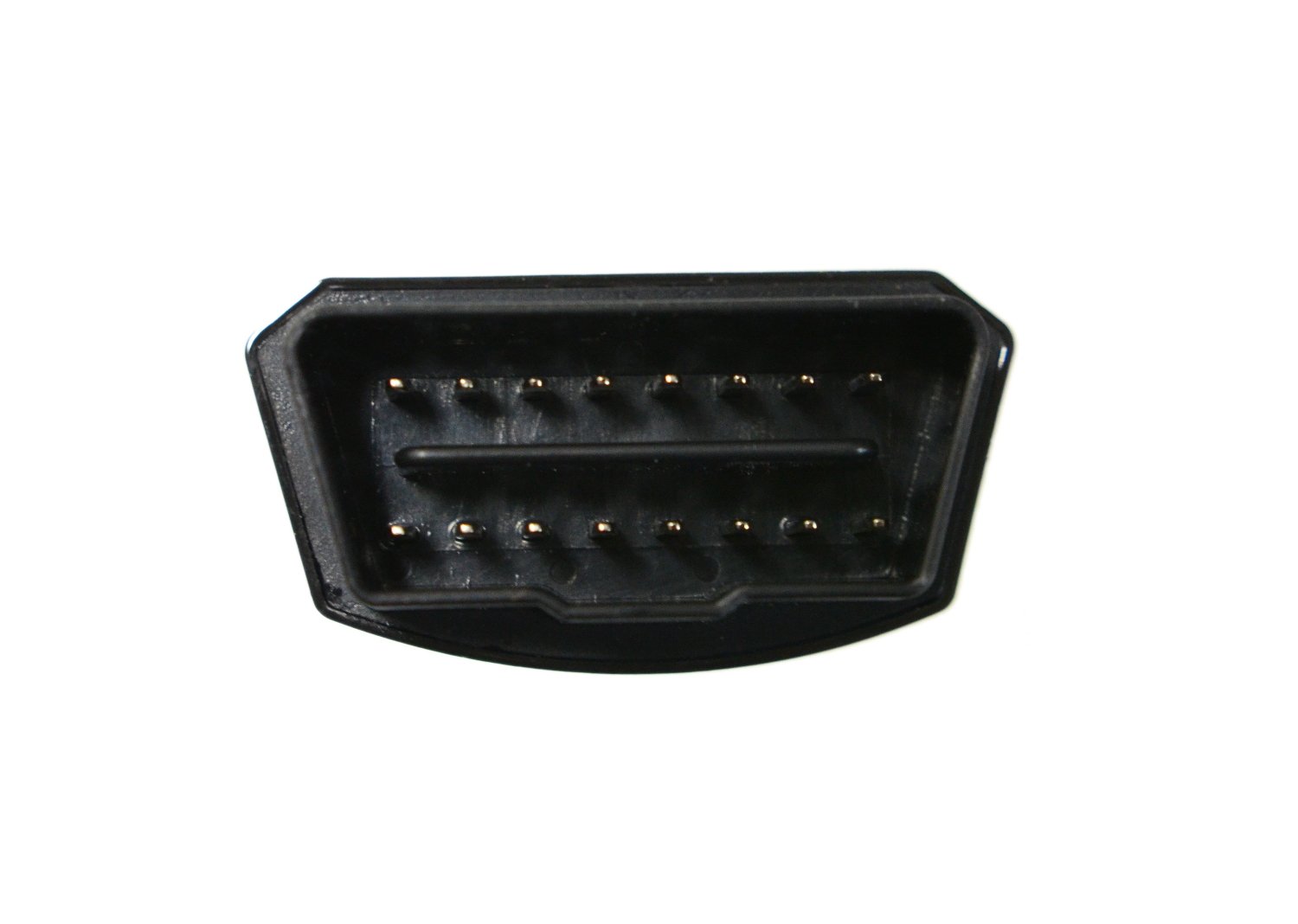

• Car connector: OBD2 / EOBD, 16 PIN
• Power supply: from the car's OBD2 socket (typical 12 V installations)
• Supported platforms: Android, iOS; selected Windows / macOS programs supporting BLE
• OBD2 transmission standards: ISO 15765-4 CAN, ISO 9141-2, ISO 14230-4 KWP2000, SAE J1850 PWM and VPW
• Power-saving feature: automatic sleep/wake-up
• Supported vehicle voltage: passenger and light vehicles 12 V; do not use as an interface for 24 V trucks

Package Contents

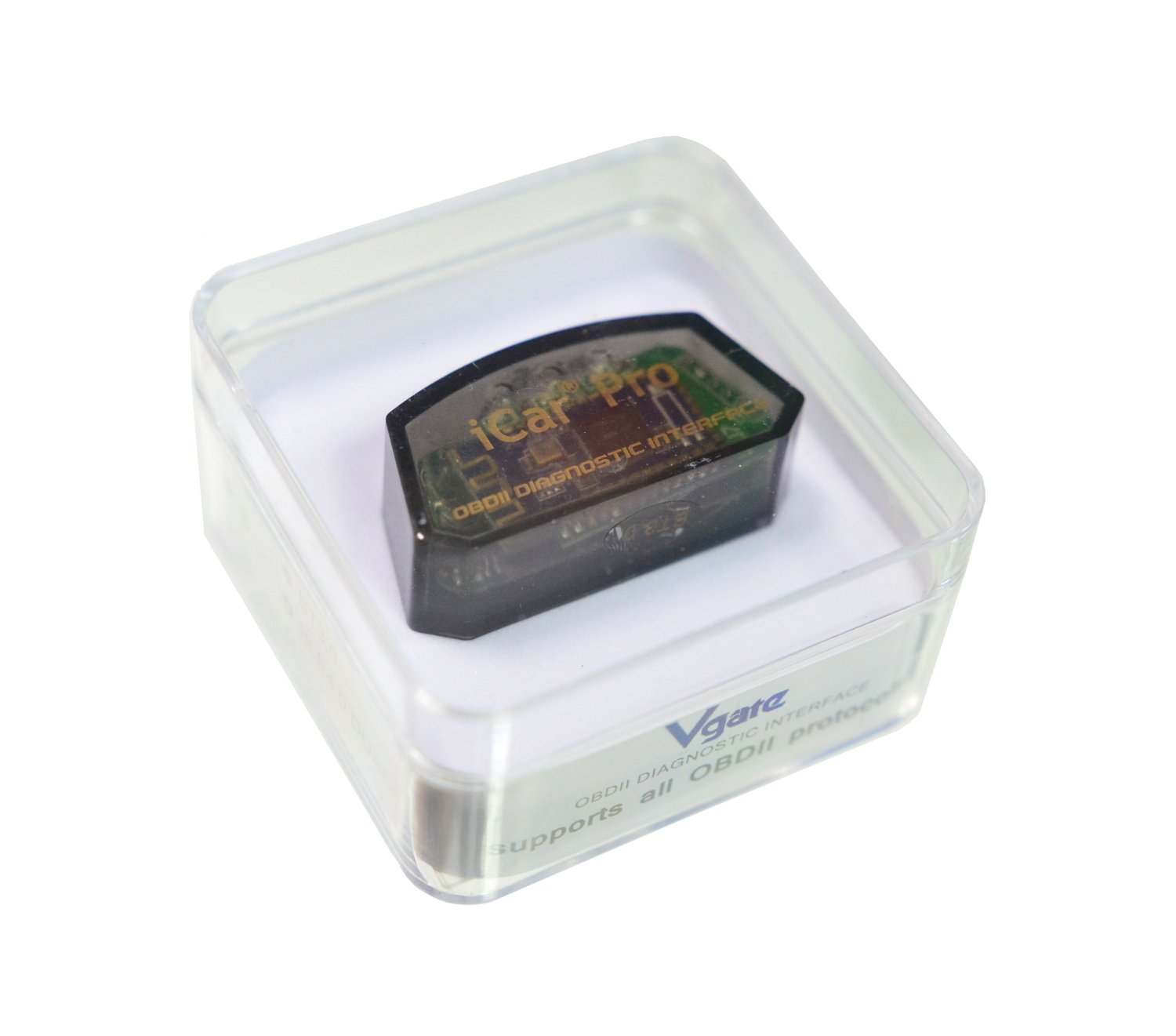

• 1 × Vgate iCar Pro Bluetooth 4.0 BLE diagnostic interface with a 16 PIN OBD2 connector.

Important: smartphone, tablet, and diagnostic app are not part of the interface itself. The app must be installed separately; any fees and licenses depend on the software provider.

Frequently Asked Questions

Does the interface work with iPhone?
Yes, the Bluetooth 4.0 BLE version is also intended for iOS, provided a compatible app is used. The adapter is usually selected directly in the program, not in the system pairing list.

Can CHECK ENGINE be cleared?
It is possible to clear the relevant OBD2 errors if the vehicle's controller allows the operation. If the cause of the fault remains, the light may come on again.

Does it work with diesel?
Yes, if the vehicle supports the OBD2/EOBD standard; for passenger cars sold in the EU, this is usually model year 2004 or newer.

Does it enable diagnostics of ABS or airbags?
There is no guarantee of support for these modules by the standard OBD2 app. The range of extended functions should be confirmed separately for the car and software.

Does it require a paid license?
Not for the device itself; selected apps may require a paid version or in-app purchases.

Vgate iCar Pro Bluetooth 4.0 BLE – Convenient Engine Status Monitoring

Vgate iCar Pro BT 4.0 is a practical, compact OBD2 adapter for Android and iOS users. It allows the use of popular diagnostic apps, reading and clearing standard engine errors, monitoring operational parameters, and checking the CHECK ENGINE status. It is best suited where basic OBDII/EOBD diagnostics are needed without an extensive workshop tester.
