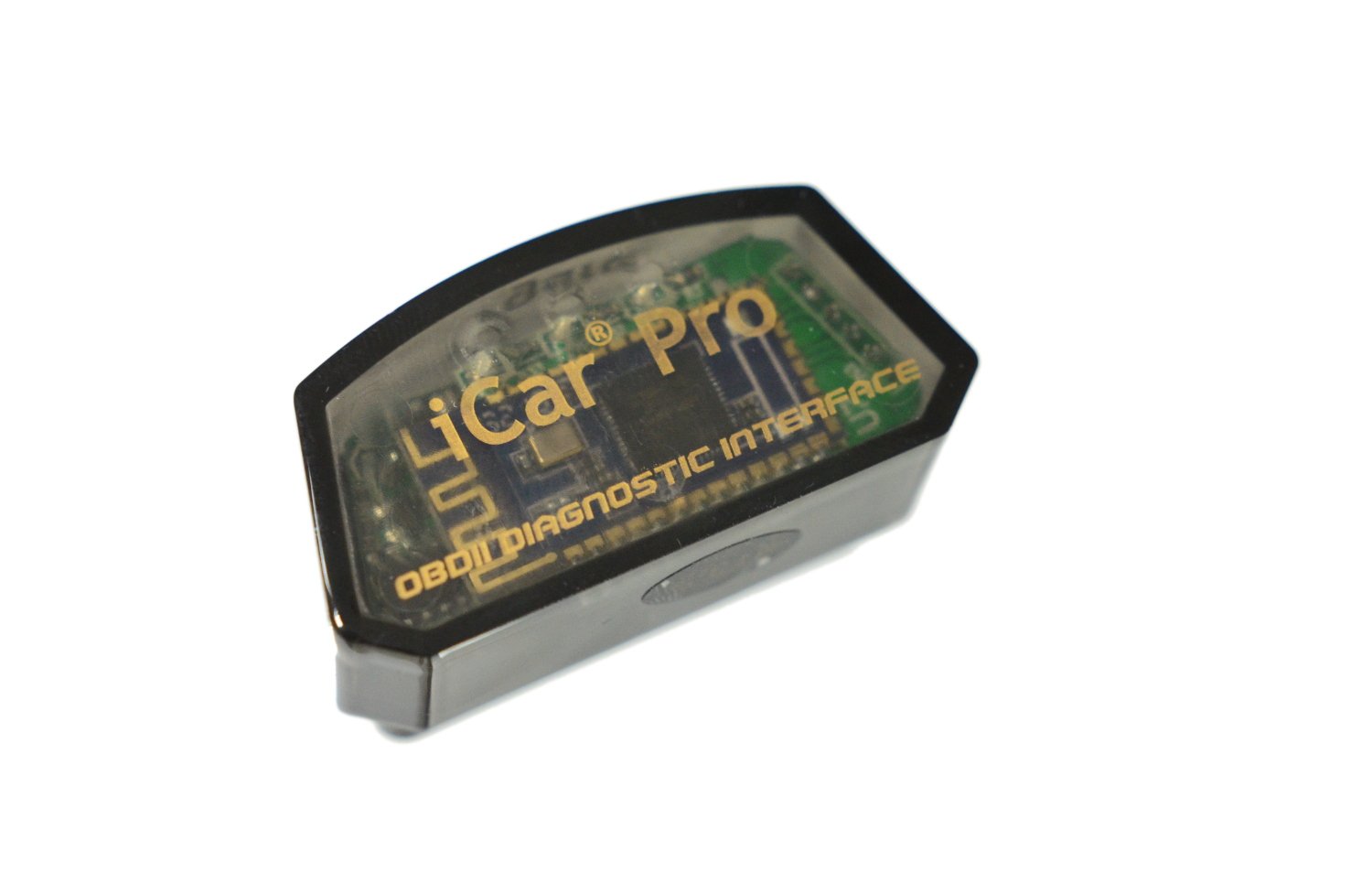

Interfejs OBD2 ELM327 ICarPRO Vgate WiFi

We are offering new, professional, high quality diagnostic interface ICAR PRO WIFI from VGATEwhich is the current novelty on the market. The interface is designed for diagnostics of all vehicles equipped with the OBD2 standard communication connector. To use this interface all you need is PC with WIFI module or mobile device with android or apple system.

This interface is fully compatible with OBD2 communication standard and support almost all communication protocols. Device is designed to diagnose the engine electronics in all cars. Furthermore we can connected to airbag, ABS, immobilizer, gearbox or power steering

THIS INTERFACE IS FOR PEOPLE WANTING TO TAKE IT ON THE CAR FOR "FIXED". TO TURN THE DEVICE OFF, PLEASE PUSH THE BUTTON ON COVER. IF WE DON’T DO THIS, THE INTERFACE SWITCH OFF AFTER 30MIN. THANKS TO THEM WE ARE SAFE THAT DEVICE WILL NOT DISCHARGE THE BATTERY!

• Small size
• Hight quality – original VGATE
• Automatic turn off after 30minutes
• Automatic turn on with engine
• Compatible with WINDOWS, ANDROID and IOS (APPLE)

IMPORTANT PRODUCT FEATURES

• Read and clear diagnostic trouble codes on OBDII/EOBD/JOBD/CAN
• Read LIVE DATA
• Reset CHECK ENGINE
• Erase MIL
• Read expectant fault code
• Read manufacturer's specific faulty code
• Read freeze frame
• Motor power measurement

SUPPORTED MODELS

• GENERAL MOTORS SINCE 1996
• FORD SINCE 1996
• CHRYSLER SINCE
• TOYOTA SINCE
• HONDA SINCE
• NISSAN SINCE
• ALL EUROPEAN AND ASIAN CAR’S BRAND WITH OBD2 SINCE 1996
• ALL NEW CARS WITH CAN PROTOCOL
• ATTENTION ! INTERFACE CONNECT WITH DIESEL ENGINE AFTER 2004

SUPPORTED PROTOCOLS

• SAE J1850 PWM(41.6KBAUD)
• SAE J1850 VPW(10.4KBAUD)
• ISO9141-2(5 BAUD INIT,10.4KBAUD)
• ISO14230-4 KWP(5 BAUD INIT,10.4 KBAUD)
• ISO14230-4 KWP(FAST INIT,10.4 KBAUD)
• ISO15765-4 CAN(11BIT ID,500 KBAUD)
• ISO15765-4 CAN(29BIT ID,500 KBAUD)
• ISO15765-4 CAN(11BIT ID,250 KBAUD)
• ISO15765-4 CAN(29BIT ID,250 KBAUD)
• SAE J1939 CAN(29BIT ID,250* KBAUD)
• USER1 CAN(11* BIT ID,125* KBAUD)
• USER2 CAN(11* BIT ID,50* KBAUD)

WORKS WITH FREE APPLICATION

Interface works with popular application from Google Play

• CCY OBD MOBILE - our app
• PISTON
• TORQUE - na ANDROID SYMBIAN WINDOWS MOBILE,
• OBD ARNY
• OBD CAR DOCTOR
• CAR SCANNER
• OBD HARRY SCAN
• OLIVIA STAR
• DASHCOMMAND
• PCMSCAN,
• Maxitest,
• MAXIECU,
• ScanXL-ELM,
• GM Mode 22 Scan Tool by Terry,
• OBD Gauge for PalmOS and Pocket PC by Dana Peters,
• OBD Logger by Jonathan Senkerik,
• OBD-II ScanMaster by Wladimir Gurskij,
• obd2crazy.com,
• ScanTool.net,
• OBD Gauge for Palm OS,
• ScanTest for Pocket PC,
• ScanMaster-ELM, ScanXL,
• FiatEcuScan, MultiEcuScan,
• OPELtestPL,
• SDPROG PL
• much more

1. CCY OBD MOBILE 2. PISTON 3. TORQUE

4. CAR SCANNER 5. OBD HARRY 6. DASH COMMAND

ADDITIONAL CAPABLITES

Using additional software, we can expand the capabilities of the device to diagnose additional modules such as airbags, ABS, meter, immobilizer, power steering or automatic transmission!

PROGAM MAXITEST PL

• in FORD:- Engine, ABS, AirBag, Automatic transmission, Counters
• in OPLA:- Engine, ABS, Immobilizer, Automatic transmission
• in RENAULT:- Engine, ABS, AirBag, Indicators, Air conditioning, Body and others
• in FIATS:- Engine, ABS, Airbag, Immobilizer, Transmission, Power steering and other
• in NISSAN:- Engine, ABS, Airbag, AT, BCM, 4WD

FIATECUSCAN, MULTIECUSCAN, FESMOBILE software

• in FIAT, ALFA ROMEO, LANCIA:- Engine, Indicators, Body, Air conditioning

VAUXCHECK PROGRAMME

• in OPEL, VAUXHALL: - Engine, ABS, Immobilizer, Transmission - also Vectra C diesel '02-'03

The above programs are not supplied as a set, they must be purchased on your own

PACKAGE CONTENT

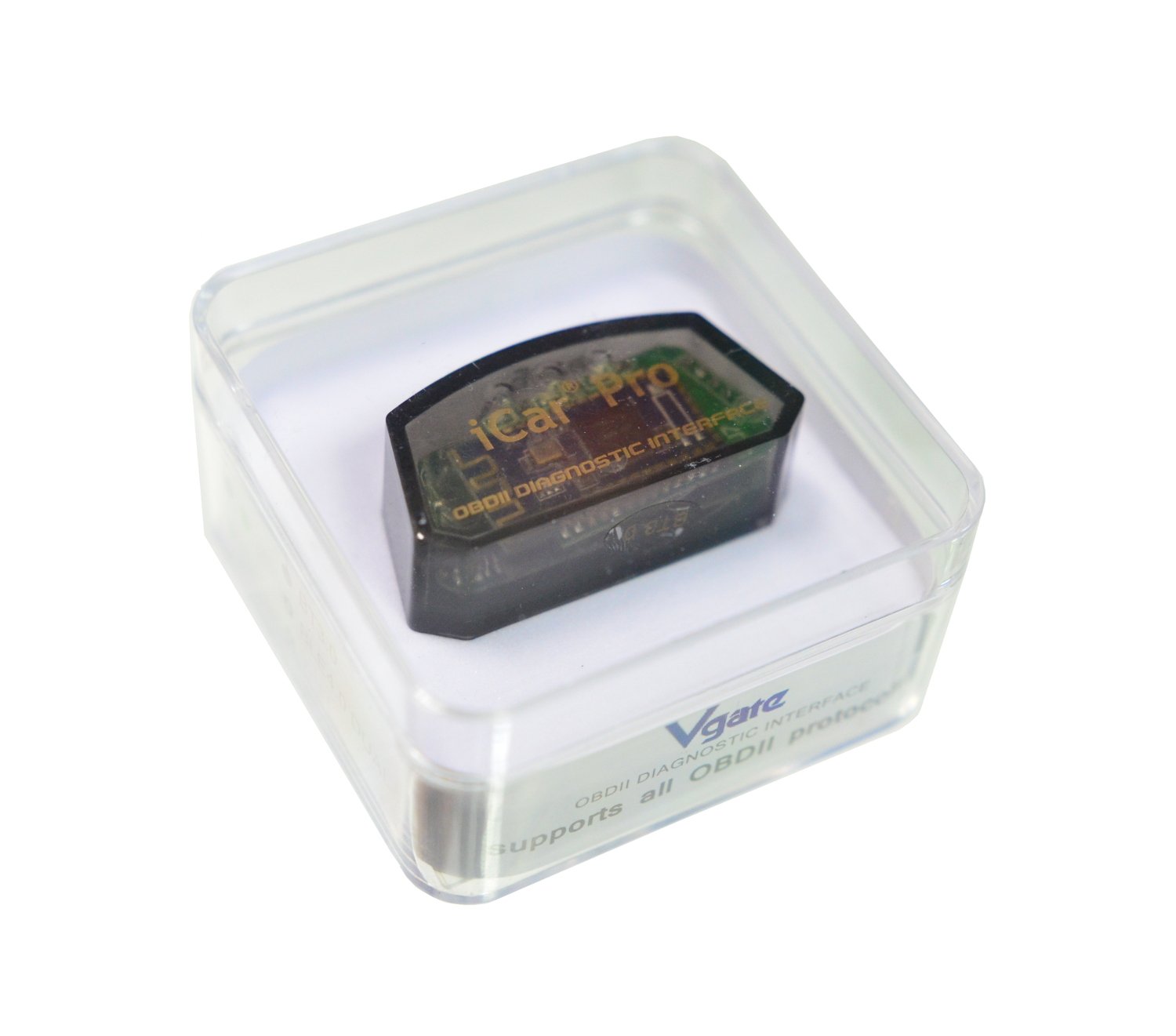

• Interface ICAR PRO WIFI

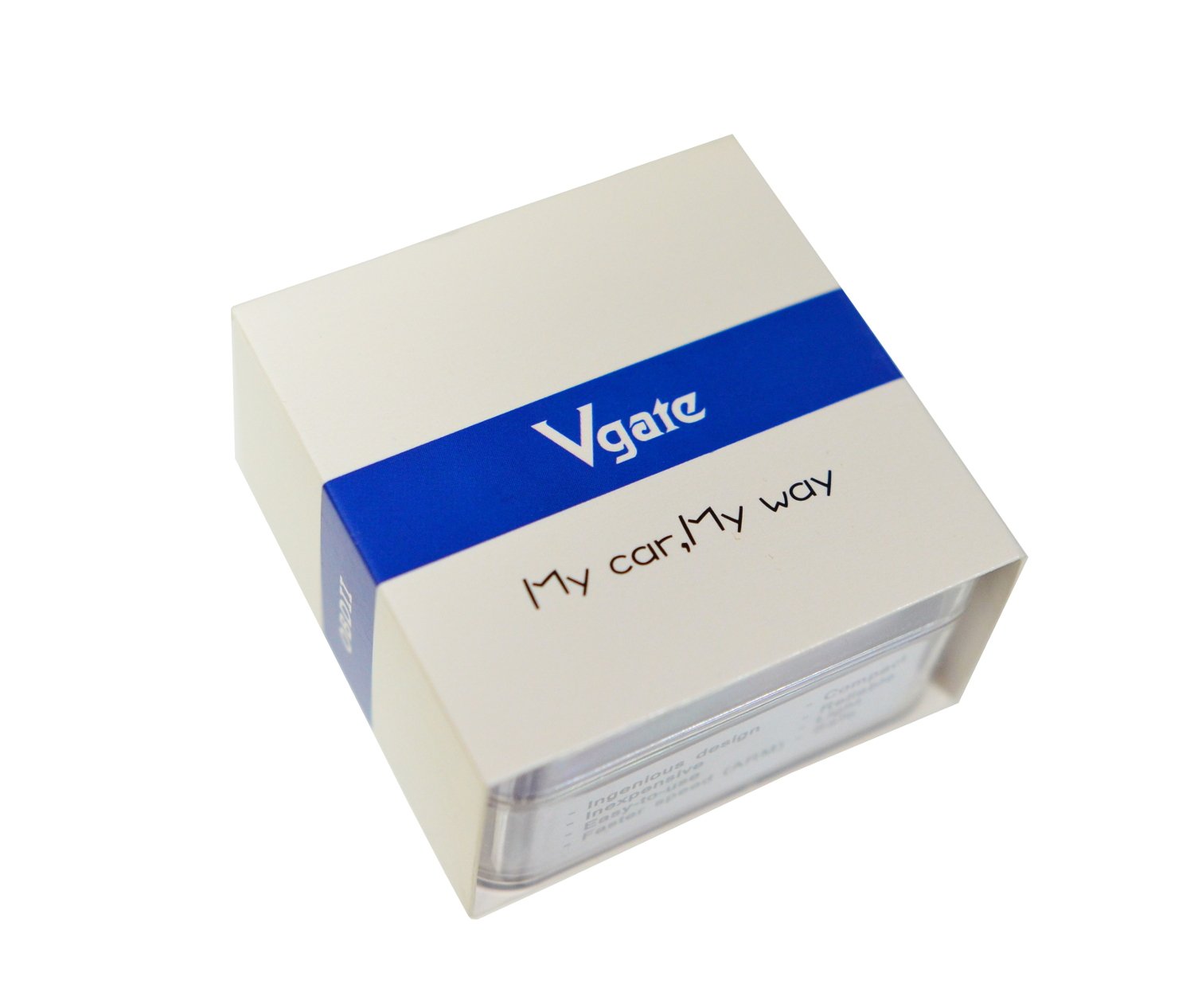

• Box for storage interface
• English user's guide and online support
