Interface OBD2 ELM327 USB

We are offering new, professional diagnostic interface ELM 327 USB v.1.5a

Supported Function: Oil Service Light resets, read and erase error from engine drive read LIVE DATA, freeze frame

Interface was built with new CHIP ELM 1.5a, thanks to this it supports all protocols of communication with cars. It work well in home and in professional use. This interface is compatible with all Windows systems.

INTERFACE WITH CHIP IN VERSION 2.1 OR 2.0 IS CHEAPER BUT DON’T SUPPORT HALF COMMUNICATION PROTOCOLS AND HAS CONTINIOUS PROBLEMS WITH CONNECTED. CHIP IN VERSION1.5A IT’S THE BEST OPTION.

SUPPORTED ENGINES

• DIESEL - 2004+
• GASOLINE - 2000+

SUPPORTED MODELS

• GENERAL MOTORS SINCE 1996
• FORD SINCE 1996
• CHRYSLER SINCE 1996
• TOYOTA SINCE 1996
• HONDA SINCE 1996
• NISSAN SINCE 1996
• ALL EUROPEAN AND ASIAN CAR’S BRAND WITH OBD2 SINCE 1996
• ALL NEW CARS WITH CAN PROTOCOL
• ATTENTION !> INTERFACE CONNECT WITH DIESEL ENGINE AFTER 2004

IMPORTANT PRODUCT FEATURES

• Read and clear diagnostic trouble codes on OBDII/EOBD/JOBD/CAN
• Read LIVE DATA
• Reset CHECK ENGINE
• Erase MIL
• Read expectant fault code
• Read manufacturer's specific faulty code
• Read freeze frame
• Motor power measurement

SUPPORTED PROTOCOLS

• SAE J1850 PWM(41.6KBAUD)
• SAE J1850 VPW(10.4KBAUD)
• ISO9141-2(5 BAUD INIT,10.4KBAUD)
• ISO14230-4 KWP(5 BAUD INIT,10.4 KBAUD)
• ISO14230-4 KWP(FAST INIT,10.4 KBAUD)
• ISO15765-4 CAN(11BIT ID,500 KBAUD)
• ISO15765-4 CAN(29BIT ID,500 KBAUD)
• ISO15765-4 CAN(11BIT ID,250 KBAUD)
• ISO15765-4 CAN(29BIT ID,250 KBAUD)
• SAE J1939 CAN(29BIT ID,250* KBAUD)
• USER1 CAN(11* BIT ID,125* KBAUD)
• USER2 CAN(11* BIT ID,50* KBAUD)

ADDITIONAL OPPORTUNITIES

Using additional software, we can extend the capabilities of the device with the diagnostics of additional modules such as airbag, ABS, counter, immobilizer, power steering and automatic transmission!

MAXITEST

• in FORD- Engine, ABS, AirBag, Automatic Transmission, Counter
• in OPEL- Engine, ABS, Immobilizer, Automatic Transmission
• in RENAULT - Engine, ABS, AirBag, Indicators, air conditioning, vehicle body and other
• in FIAT - Engine, ABS, Airbag, Immobilizer, Automatic Transmission, power steering and other
• in NISSAN- Engine, ABS, Airbag, AT, BCM, 4WD

FIATECUSCAN, MULTIECUSCAN, FESMOBILE

• in FIAT, ALFA ROMEO, LANCIA – Engine, Indicators, vehicle body, air conditioning

VAUXCHECK

• in OPEL, VAUXHALL - Engine, ABS, Immobilizer, Transmission - also Vectra C diesel '02-'03

THIS PROGRAM AREN’T SUPPLIED WITH THIS SET. YOU MUST BUY IT IN YOUR OWN EXTEND

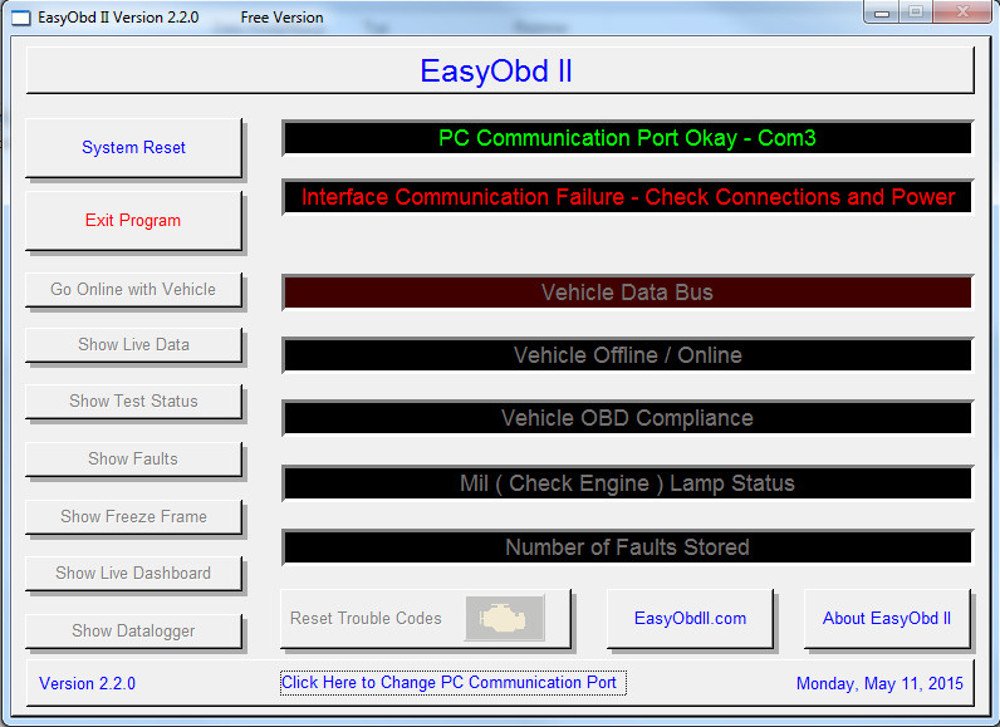

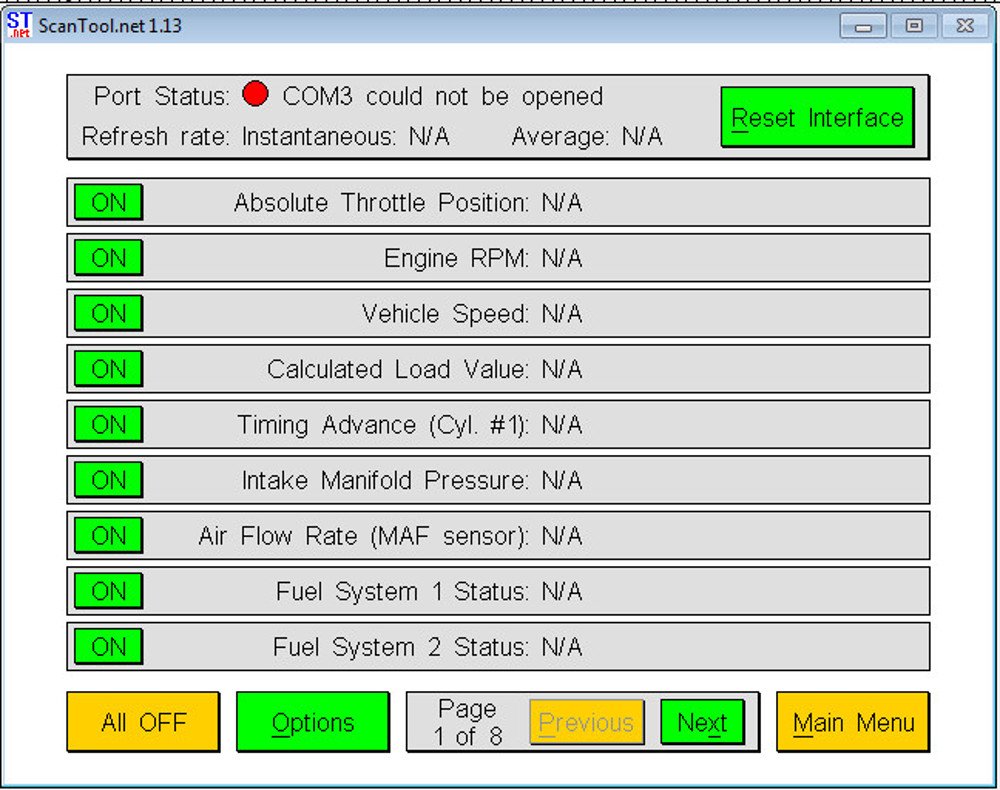

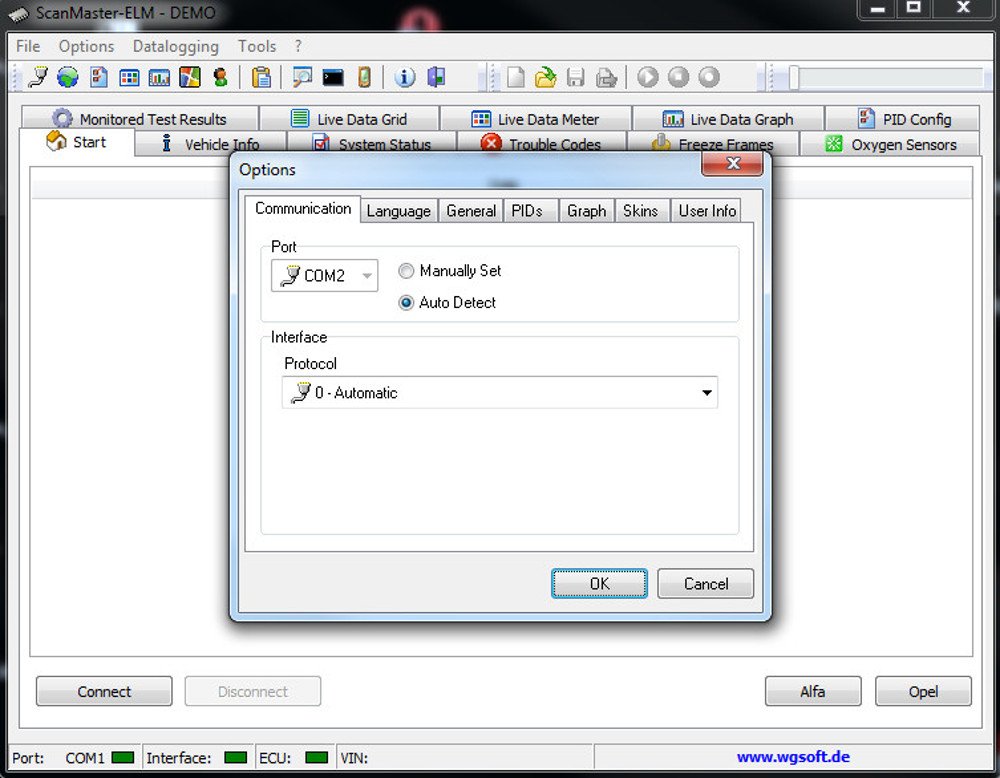

SCREENS OF EXAMPLE SOFTWARE

PACKAGE CONTENT

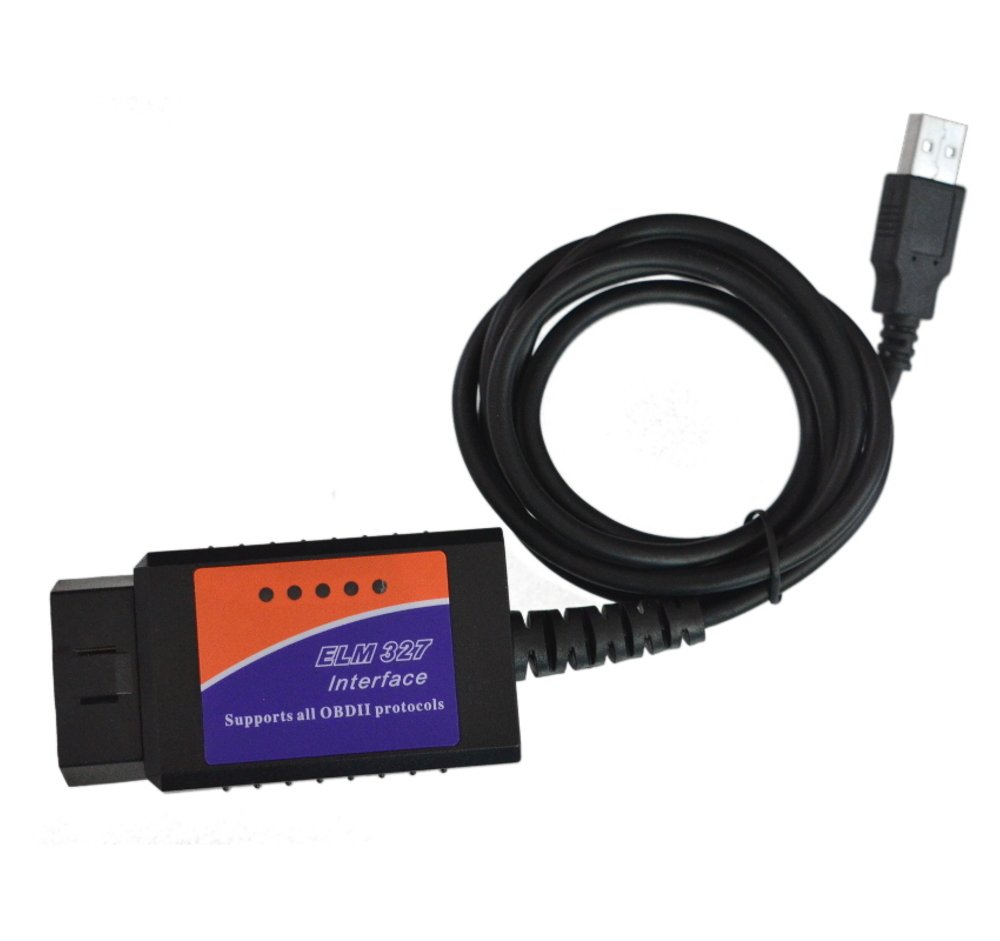

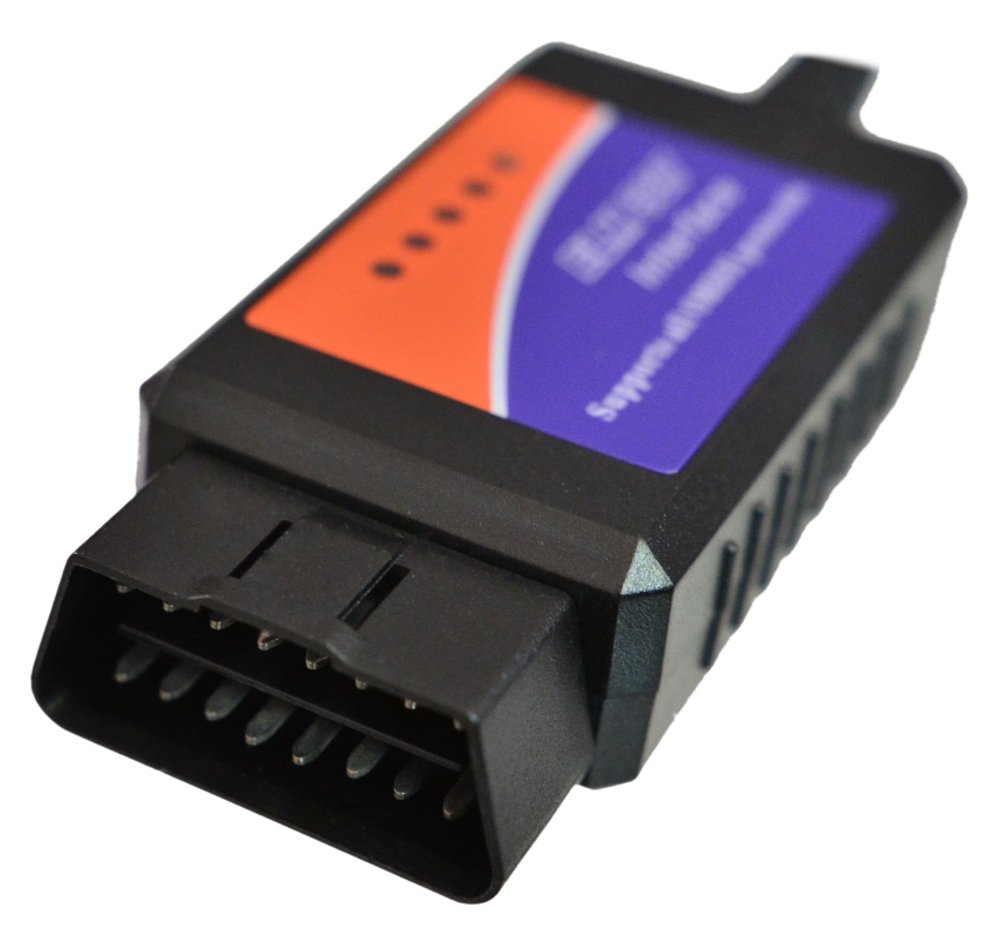

• Diagnostic interface ELM 327 1.5a USB
• English user's guide and online support
• Access for free software for LPG on our website
