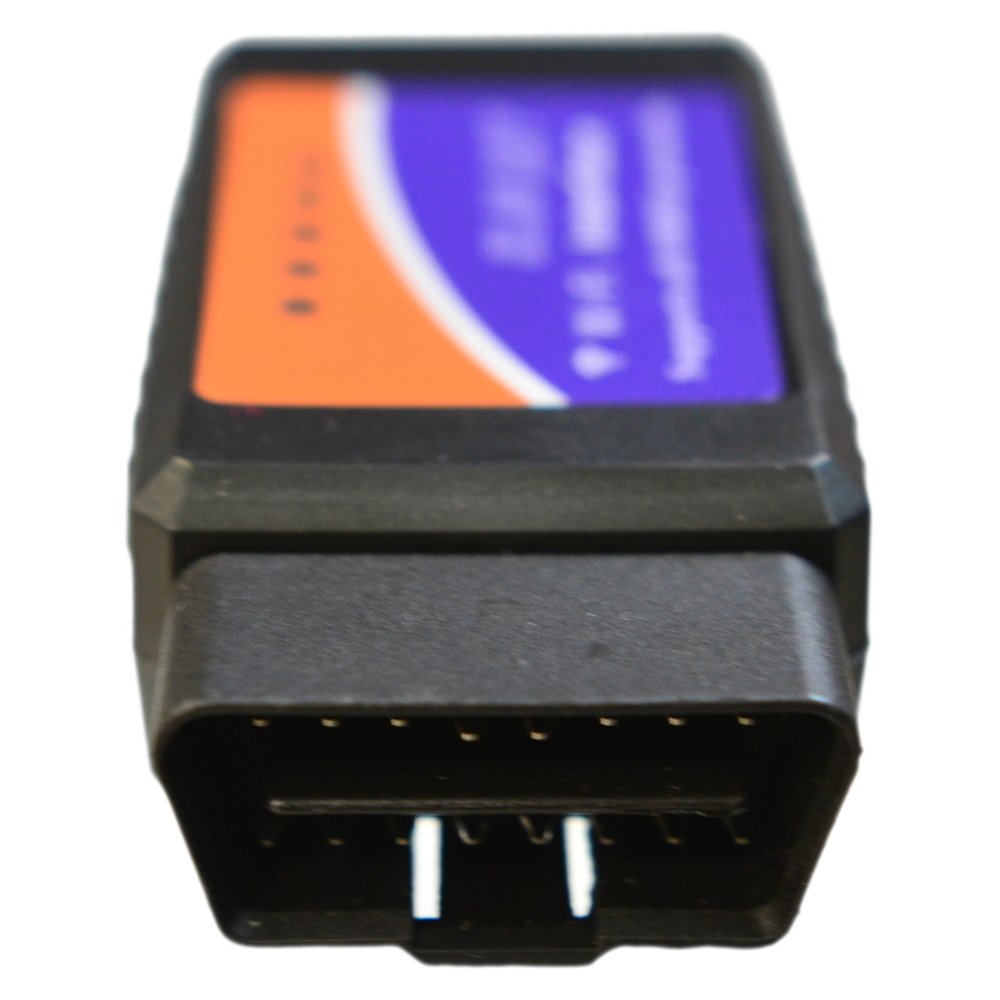

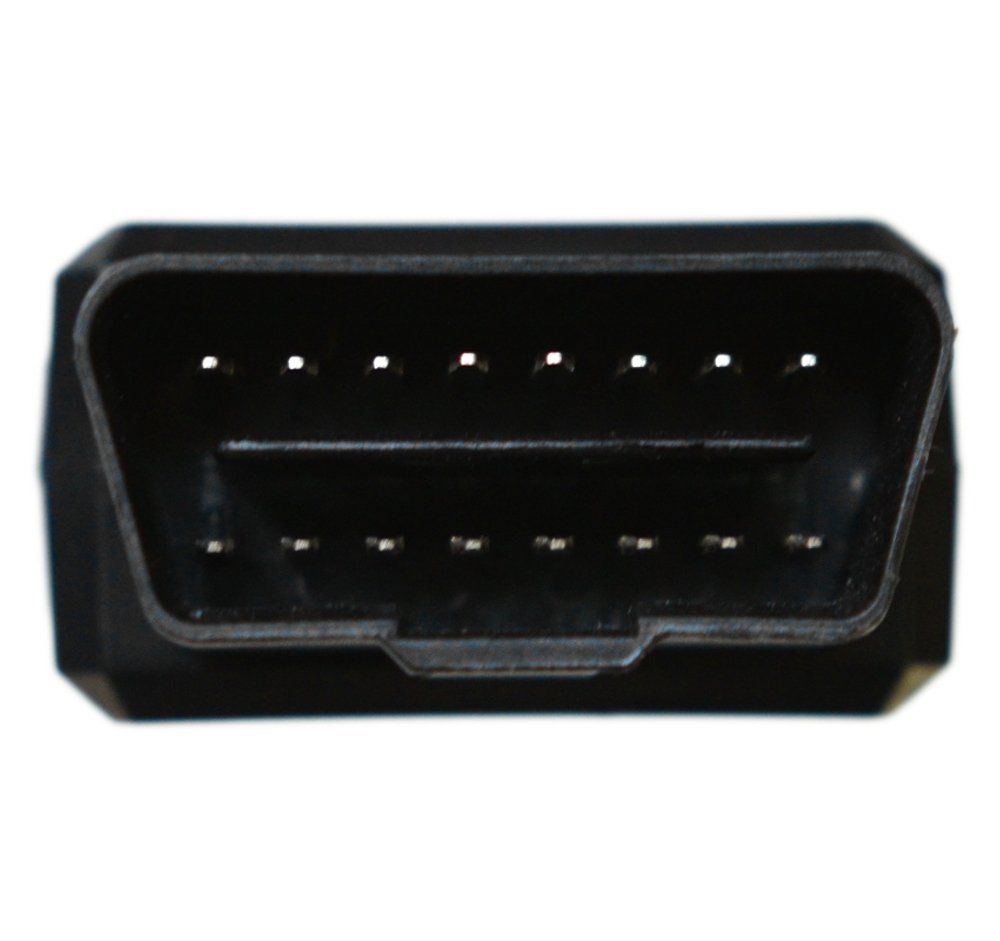

OBD2 ELM327 WIFI interface

We are offering new, professional diagnostic interface ELM 327 WIFI v.1.5a

Supported Function: Oil Service Light resets, read and erase error from engine drive read LIVE DATA, freeze frame

Interface was built with new CHIP ELM 1.5a, thanks to this it supports all protocols of communication with cars. It work well in home and in professional use.

SUPPORTED ENGINES

• DIESEL - 2004+
• GASOLINE - 2000+

COMPATIBILITY WITH ALL DEVICE

By using WIFI communication it is compatible with all systems

• Windows
• Android
• Linux
• Apple iOS

INTERFACE FUNCTION

• Read and clear diagnostic trouble codes on OBDII/EOBD/JOBD/CAN
• Read LIVE DATA
• Reset CHECK ENGINE
• Erase MIL
• Read expectant fault code
• Read manufacturer's specific faulty code
• Read freeze frame
• Motor power measurement

SUPPORTED CARS

• GENERAL MOTORS SINCE 1996
• FORD SINCE 1996
• CHRYSLER SINCE
• TOYOTA SINCE
• HONDA SINCE
• NISSAN SINCE
• ALL EUROPEAN AND ASIAN CAR’S BRAND WITH OBD2 SINCE 1996
• ALL NEW CARS WITH CAN PROTOCOL
• ATTENTION ! INTERFACE CONNECT WITH DIESEL ENGINE AFTER 2004

SUPPORTED PROTOCOLS

• SAE J1850 PWM(41.6KBAUD)
• SAE J1850 VPW(10.4KBAUD)
• ISO9141-2(5 BAUD INIT,10.4KBAUD)
• ISO14230-4 KWP(5 BAUD INIT,10.4 KBAUD)
• ISO14230-4 KWP(FAST INIT,10.4 KBAUD)
• ISO15765-4 CAN(11BIT ID,500 KBAUD)
• ISO15765-4 CAN(29BIT ID,500 KBAUD)
• ISO15765-4 CAN(11BIT ID,250 KBAUD)
• ISO15765-4 CAN(29BIT ID,250 KBAUD)
• SAE J1939 CAN(29BIT ID,250* KBAUD)
• USER1 CAN(11* BIT ID,125* KBAUD)
• USER2 CAN(11* BIT ID,50* KBAUD)

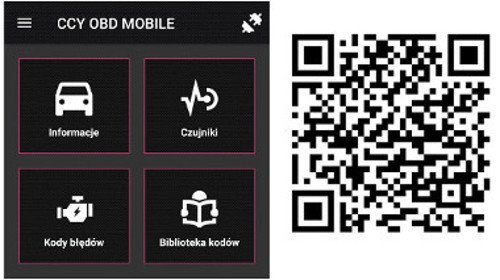

APPLICATION FROM CCY

We created our application for the android system, that allows you to diagnose the engine and its electronics, view current parameters in real time or read the information about the car

The application is designed for car diagnostics with:

• gasoline engine produced since 2000
• diesel engine produced since 2004
• Older models may work but don't have to

Applications can be downloaded from the Google Play Store : https://play.google.com/store/apps/details?id=pl.ccy.ccyobdmobile

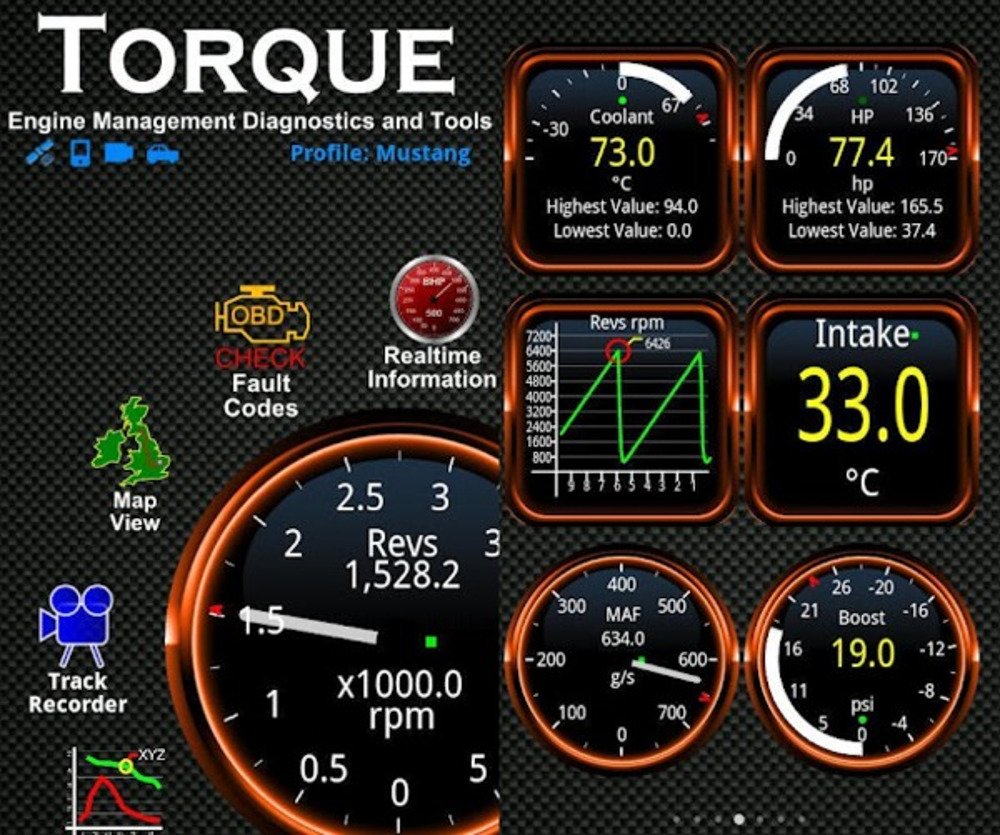

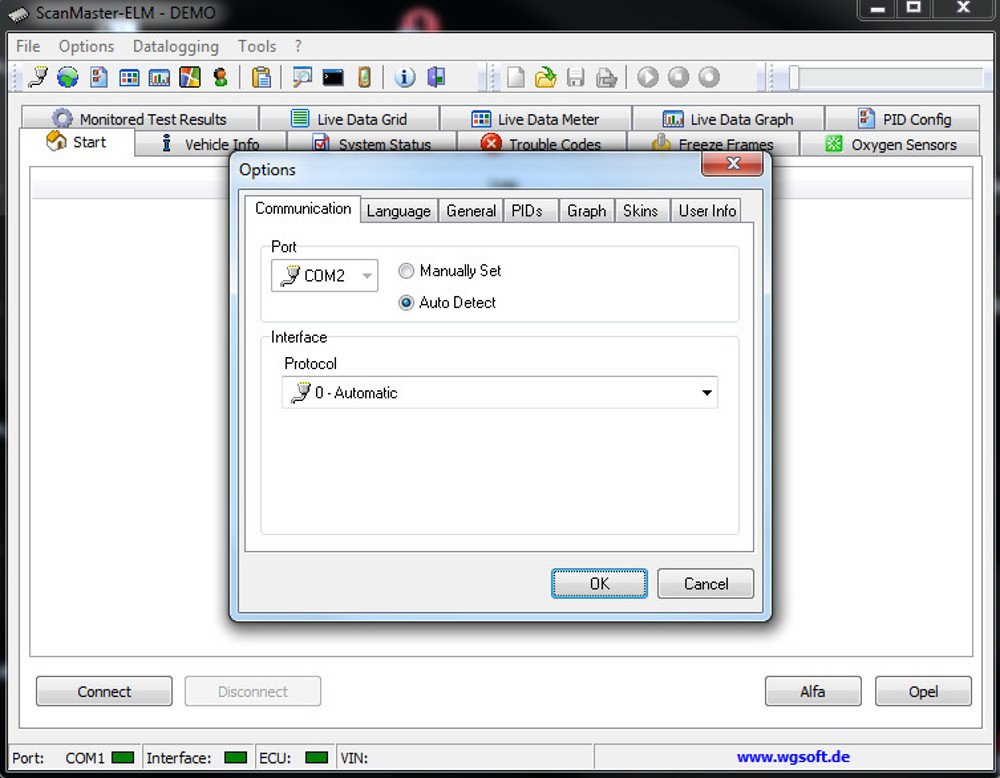

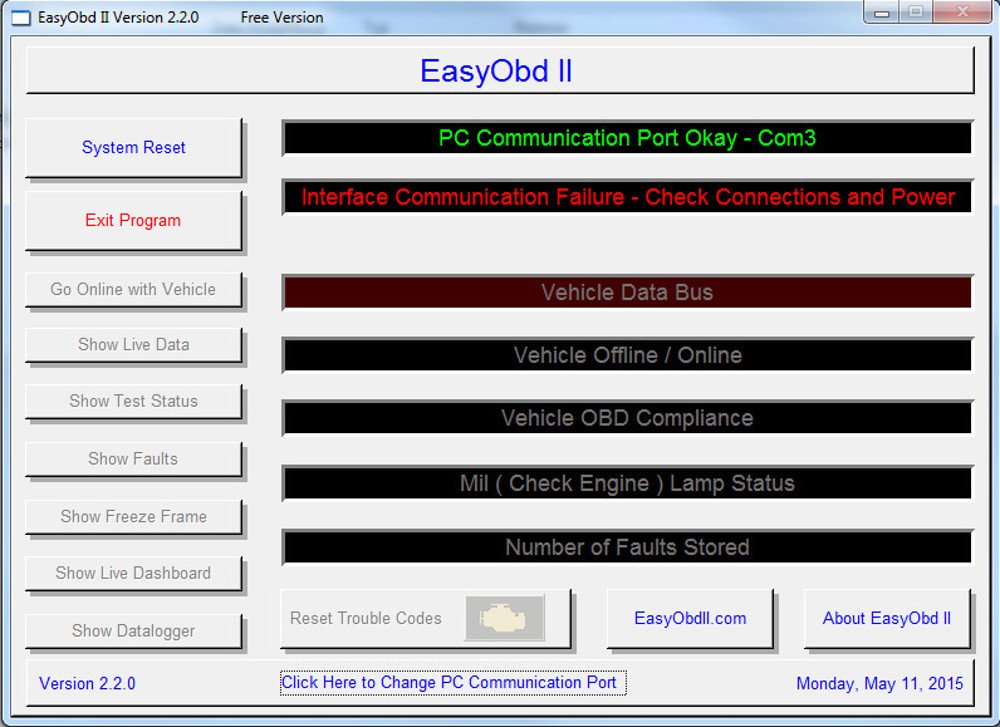

SCREENS OF EXAMPLE SOFTWARE

PACKAGE CONTENT

• Diagnostic interface ELM 327 1.5a WIFI
• English user's guide and online support
• Access for free software for LPG on our website
