Interfejs OBD2 ICarPRO Vgate BLUETOOTH 3.0 ELM327

We are offering a professional diagnostic interface iCar PRO BT 3.0 from the renowned VGATE brand, the current novelty on the market. The interface is designed for diagnostics of all vehicles equipped with the OBD2 standard communication connector. Any computer with a Bluetooth module or a mobile device with an android system is sufficient to operate it.

This interface is fully compliant with the OBD2 communication standard. Supports most popular communication protocols. The device is designed to diagnose engine electronics in cars of all manufacturers.In addition, thanks to the application of additional programs described later in the offer, we can connect to for example pillows, ABS, power steering, immobilizer or gearbox.

THE INTERFACE HAS BEEN ADAPTED FOR PEOPLE WHO WANT ATTACH IT PERMANENTLY. THE DEVICE HAS AN AUTOMATIC SWITCH AFTER 30 MINUTES OF INACTIVITY, IT TURNS OFF AUTOMATICALLY. THANKS TO THAT YOU ARE SURE THAT DOESN’T DISCHARGE THE ACCUMULATOR. IT HAS ALSO EQUIPPED WITH ‘AUTOMAKEUP’ FUNCTIONS, THANKS TO THAT IN 80% OF THE CARS INTERFACE RUNS AFTER THE ENGINE IS STARTED.

• SMALL SIZE
• HIGH QUALITY PERFORMANCE OF VGATE ORGINAL!
• AUTOMATICALLY TURN OFF AFTER 30 MINUTES INACTIVITY
• IT WORKS ON WINDOWS AN ANDROID SYSTEM
• BLUETOOTH 3.0
• LED INDICATORS INFORM ABOUT POWER, CONNECTION TO THE BLUETOOTH AND CONNECTION TO THE CAR

THE MOST IMPORTANT FUNCTIONS

• Reading/deleting errors in standard OBD2/ E0BD / JOBD / CAN
• Reading pending fault codes
• Reading the manufacturer's specific fault codes
• Reading FREEZE FRAMES
• Deleting the CHECK ENGINE and MIL controls
• Real-time engine monitoring (LIVE DATA) for example boost pressure, lambda probe signal, temperature sensor signal, flow meter, throttle position, etc.
• Engine power measurement (KM)
• Measurement of other parameters from 0-100 km / h

SUPPORTED MODELS

• GENERAL MOTORS FROM 1996 TO CURRENT
• FORD FROM 1996 TO CURRENT
• CHRYSLER FROM 1996 TO CURRENT
• TOYOTA FROM 1996 TO CURRENT
• HONDA FROM 1996 TO CURRENT
• NISSAN FROM 1996 TO CURRENT
• ALL OTHER EUROPEAN AND ASIAN BRANDS WITH OBD2 CONNECTOR FROM 1996 TO CURRENT
• ALL NEW CARS WITH CAN PROTOCOL

CARS WITH DIESEL ENGINE, regardless of the brand AND ORIGIN ARE SUPPORTED FROM 2004 (INTRODUCTION OF THE OBLIGATORY OBD2 STANDARD)

FOR STANDARD OBD2 PETROL ENGINES INTRODUCED IN 2000, MOST GASOLINE CARS HAD IT EARLIER EARLIER AND WE CAN CONNECT TO THIS INTERFACE WITH THESE CARS.

SUPPORTED PROTOCOLS

• SAE J1850 PWM(41.6KBAUD)
• SAE J1850 VPW(10.4KBAUD)
• ISO15765-4 CAN(11BIT ID,500 KBAUD)
• ISO15765-4 CAN(29BIT ID,500 KBAUD)
• ISO15765-4 CAN(11BIT ID,250 KBAUD)
• ISO15765-4 CAN(29BIT ID,250 KBAUD)
• SAE J1939 CAN(29BIT ID,250* KBAUD)
• USER1 CAN(11* BIT ID,125* KBAUD)
• USER2 CAN(11* BIT ID,50* KBAUD)
• ISO9141-2(5 BAUD INIT,10.4KBAUD)
• ISO14230-4 KWP(5 BAUD INIT,10.4 KBAUD)
• ISO14230-4 KWP(FAST INIT,10.4 KBAUD)

*DEFAULT SETTINGS (CAN BE CHANGED)

WORKS WITH FREE APPLICATIONS

Interfaces work with popular programs that can be operated from the Google Play store

• CCY OBD MOBILE - our application
• PISTON
• TORQUE - on ANDROID SYMBIAN WINDOWS MOBILE,
• OBD ARNY
• OBD CAR DOCTOR
• CAR SCANNER
• OBD HARRY SCAN
• OLIVIA STAR
• DASHCOMMAND
• PCMSCAN,
• Maxitest,
• MAXIECU,
• ScanXL-ELM,
• GM Mode 22 Scan Tool by Terry,
• OBD Gauge for PalmOS and Pocket PC by Dana Peters,
• OBD Logger by Jonathan Senkerik,
• OBD-II ScanMaster by Wladimir Gurskij,
• obd2crazy.com,
• ScanTool.net,
• OBD Gauge for Palm OS,
• ScanTest for Pocket PC,
• ScanMaster-ELM, ScanXL,
• FiatEcuScan, MultiEcuScan,
• OPELtestPL,
• SDPROG PL
• Many others

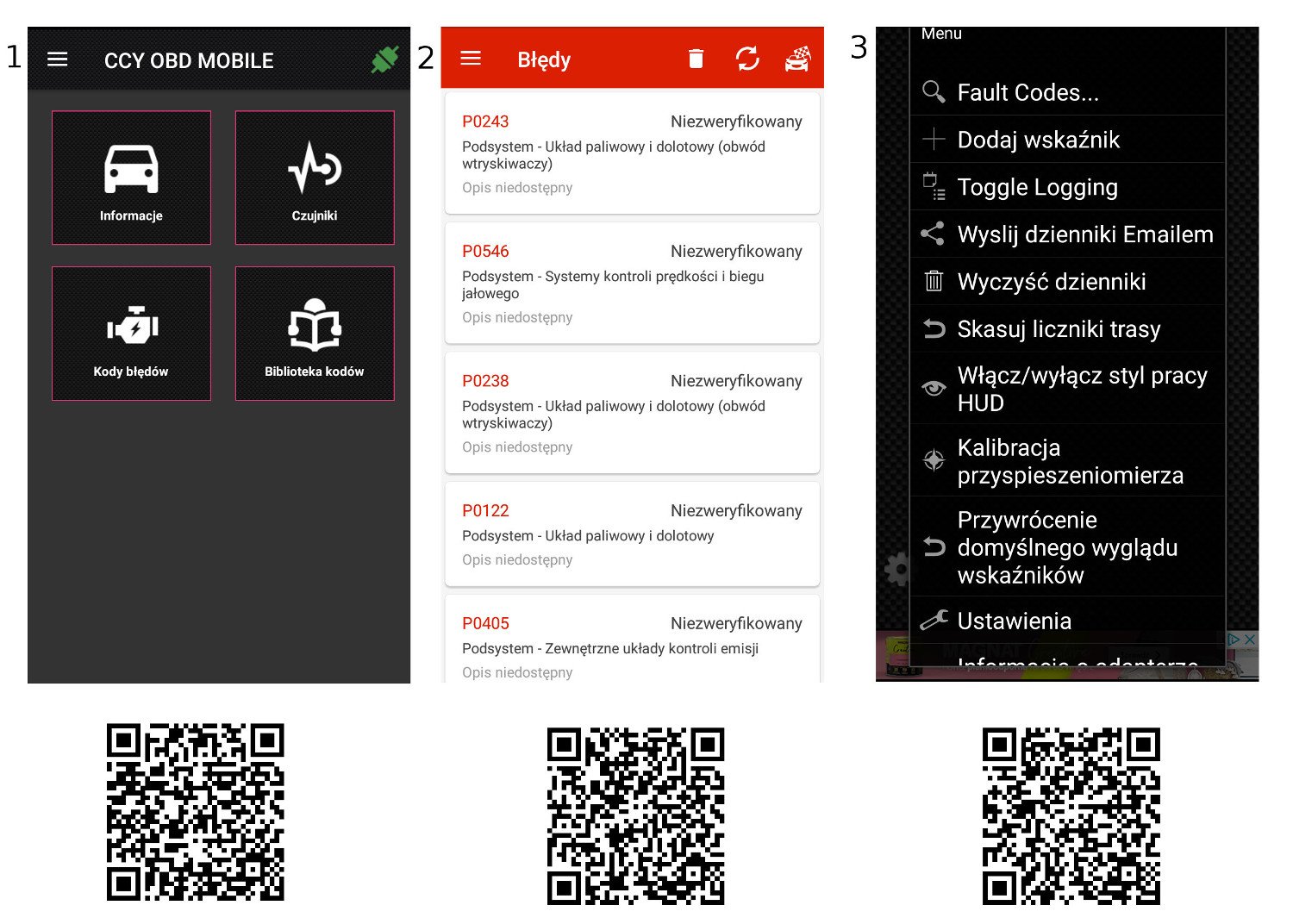

1. CCY OBD MOBILE 2. PISTON 3. TORQUE

4. CAR SCANNER 5. OBD HARRY 6. DASH COMMAND

Additional possibilities

Using additional software, we can expand the device's capabilities with additional modules diagnostics such as pillows, ABS, counter, immobilizer, power steering or automatic transmission!

PROGRAM MAXITEST PL

• FORD: - Engine, ABS, AirBag, Automatic transmission, Counters
• OPEL: - Engine, ABS, Immobilizer, Automatic transmission
• RENAULT: - Engine, ABS, AirBag, Gauges, Air-conditioning, Body and others
• FIAT: - Engine, ABS, Airbag, Immobilizer, Transmission, Power steering and others
• NISSAN: - Engine, ABS, Airbag, AT, BCM, 4WD

PROGRAMS FIATECUSCAN, MULTIECUSCAN, FESMOBILE

• FIAT, ALFA ROMEO, LANCIA: - Engine, Gauges, Body, Air conditioning

PROGRAM VAUXCHECK

• OPEL, VAUXHALL: Engine, ABS, Immobilizer, Transmission - also Vectra C diesel '02 -'03

THE ABOVE PROGRAMS ARE NOT SUPPLIED. SHOULD BE PURCHASED IN YOUR OWN RANGE

IS YOUR VEHICLE COMPLIANT WITH OBDII / EOBD STANDARD?

The OBDII system is the current standard for sold cars:

• from January 1, 1996 in the USA
• from January 1, 2001 in the European
• from January 1, 2002 in Poland
• all with DIESEL engines after January 1, 2004

Some cars had an OBDII connector before manufacturers were required to comply with the OBDII standard.

Requirements to be met by an OBDII compliant car

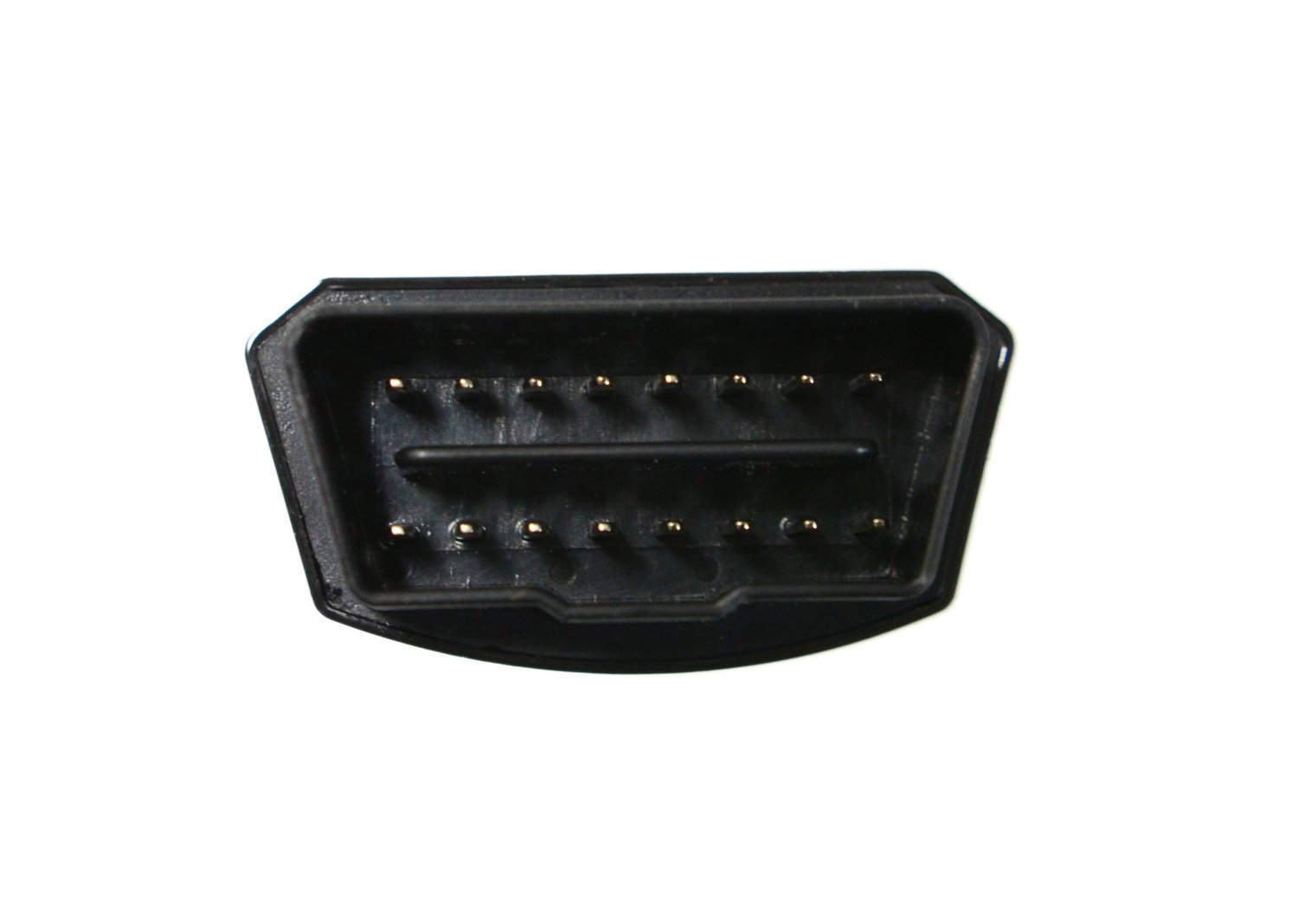

• 16-pin connector
• two or more oxygen sensors
• sticker informing about exhaust emissions - usually placed under the hood or near the radiator. The sticker contains information whether the vehicle is OBDII certified

CONTENTS OF THE SET

• Interface ICAR PRO VGATE BT. 3.0
• Interface storage box
• Manufacturer's instructions and lifetime technical support
• Access to free software - to download from our server
