Refraktometr 4w1

Set Includes

• Refractometer
• Pasteur Pipette
• Calibration Screwdriver
• User Manual in English
• Prism Cloth
• Sturdy plastic case with sponge

Application

🌡️ Freezing Point of Ethylene Glycol

• The refractometer allows measurement of the freezing point of ethylene glycol in the range from -50°C to 0°C with an accuracy of ±1°C.
• The importance of measurement for protection against engine freezing.

🌡️ Freezing Point of Propylene Glycol

• Ability to measure the freezing point of propylene glycol in the range from -50°C to 0°C with an accuracy of ±1°C.

🌡️ Freezing Point of Windshield Washer Fluid

• Measurement of the freezing point of windshield washer fluid in the range from -40°C to 0°C with an accuracy of ±5°C.
• The importance of measurement for the proper functioning of the washer system in difficult weather conditions.

🔋 Electrolyte Density in the Battery (Battery Charge Level)

• Measurement of electrolyte density in the battery in the range from 1.10 to 1.40 kg/L with an accuracy of ±0.01 kg/L.
• A tool for monitoring the state of charge of the vehicle's battery.

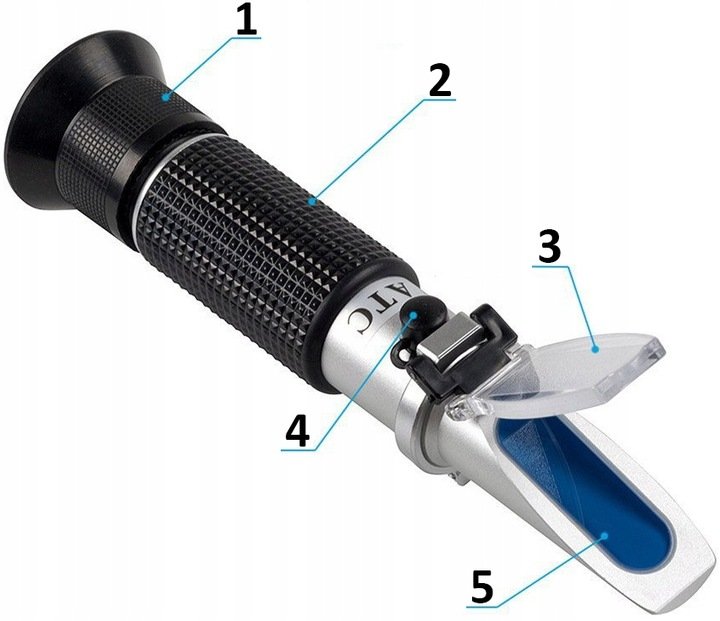

Construction

• 1. Eyepiece
• 2. Handle
• 3. Refractometer Cover
• 4. Calibration Screw for the Device
• 5. Prism

Key Product Features 🌟

• 📊 Five different measurement scales that allow for versatile applications.
• 🔧 Easy and quick manual calibration, ensuring measurement accuracy.
• Body made of aluminum, guaranteeing durability and lightness of the device.
• 👍 Non-slip rubberized handle for a secure grip and user comfort.
• 👓 Rubber on the eyepiece ensures comfortable readings and precise results.
• 🔍 Focus adjustment on the scale in the eyepiece for even better readability.
• 👜 Compact and portable, ideal for use in various locations.
• 🌈 High quality of workmanship, translating into durability and reliability.
• 🚗 Provides quick and accurate measurements of automotive fluids.
• ☀️ Measurement possible in daylight and artificial light, increasing usage flexibility.
• 🚙 Essential for measuring fluids in passenger cars, trucks, and buses.
• 🌡️ Allows determining the freezing point of windshield washer fluid, the freezing point of coolant (based on propylene or ethylene glycol), as well as the electrolyte density in the battery.
• 🆕 Condition: New, factory set, ensuring reliability and quality.

Measurement Procedure:

1. Open the prism cover. This is the first step to prepare the refractometer for measurement.
2. Using the pipette, place 2-3 drops of the tested liquid on the surface of the prism. This will allow measurement of the liquid's properties.
3. Close the prism cover and gently press it down. Ensure that the liquid fills the entire surface of the prism, eliminating any air bubbles.
4. Place the refractometer on a stable surface and wait about 30 seconds. This will allow the sample temperature to equalize with the instrument temperature, which is essential for accurate measurements.
5. Point the refractometer towards the light source and look through the eyepiece. This is where you will take the measurement.
6. Read the value from the appropriate scale at the boundary of the white and blue area. This is the light/shadow boundary, which contains information about the liquid's properties.
7. If the image is blurry, use the adjustment knob located in the eyepiece.

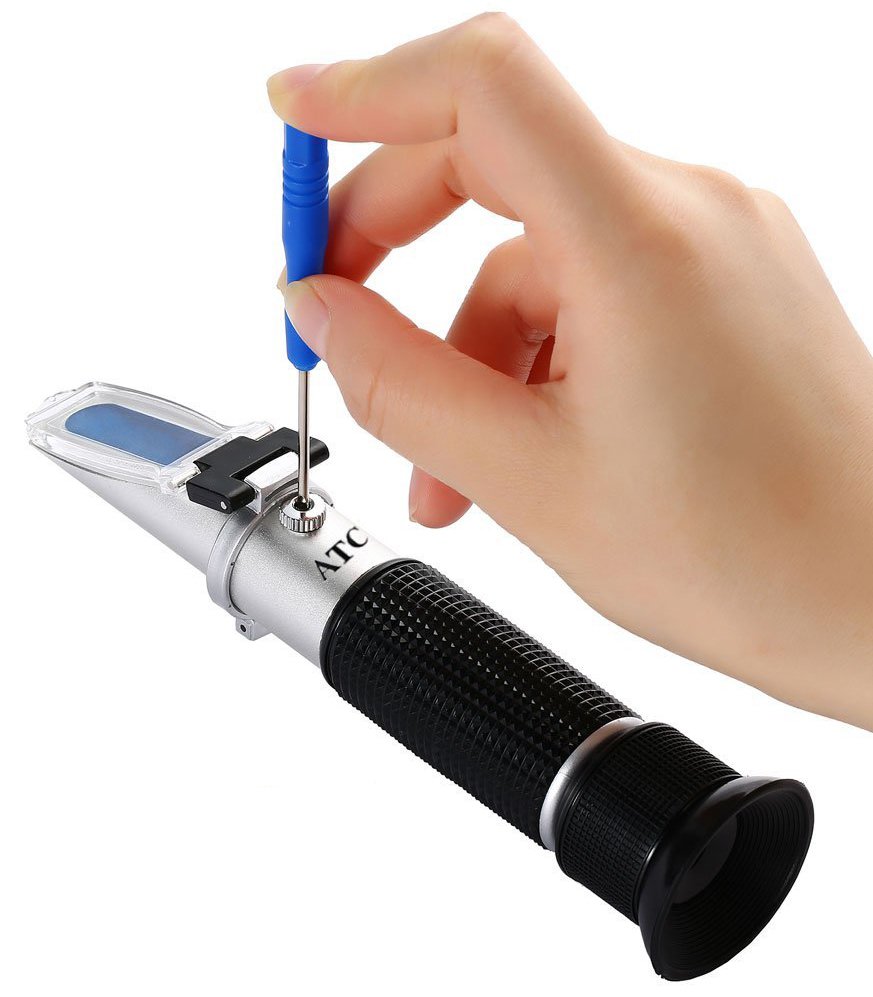

Calibration of the Refractometer

Before the first use of the refractometer, it is necessary to calibrate it accurately, maintaining the specified ambient temperature of 20°C. Also, ensure that the refractometer itself has reached the same temperature as the surroundings. To do this, follow the steps below:

1. Open the prism cover of the refractometer, allowing access to the measurement surface.
2. Using the pipette, gently place 2-3 drops of distilled water on the surface of the prism.
3. Close the prism cover and lightly press it down until the liquid fills the entire surface of the prism, eliminating any air bubbles.
4. Wait about 30 seconds to equalize the sample temperature to the instrument temperature.
5. Point the refractometer towards the light source and look through the eyepiece.

Instructions for Operating the Refractometer

• Do not expose the device to humid working conditions or immerse it in water. If the instrument fogs up or water gets into the housing, it may affect measurement accuracy.
• Do not use this instrument to measure corrosive chemicals, as they may damage the prism coating and affect the accuracy of results.
• Before each new measurement, clean the instrument to avoid any contaminants that could affect measurement accuracy.
• Remember that this is an optical instrument, so it requires careful handling and proper storage. Failure to follow these recommendations may result in damage to the optical elements and their basic structure.
