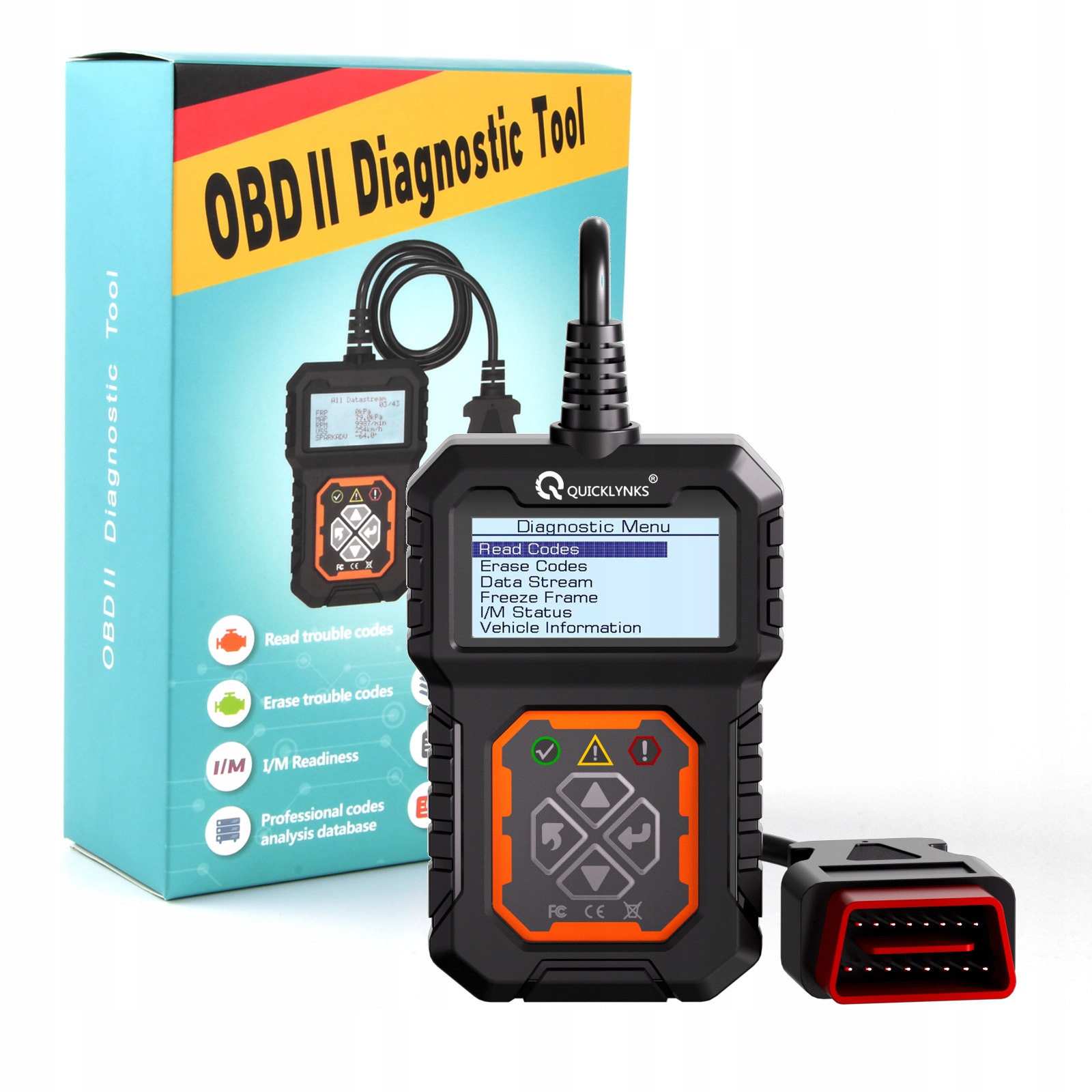

OBD2 T31 V2 Diagnostic Scanner

Basic Features and Functions

• OBDII Support: Monitoring engine and transmission functions.
• Error Diagnostics: Reading and clearing error codes.
• LCD Display: Clear screen with adjustable contrast.
• Handy Size: Compact dimensions, easy to store.
• Simple Power Supply: Direct connection to the OBD2 socket.
• Housing: Made of durable plastic.
• Cable Length: 63cm for greater user convenience.
• No Additional Costs: Unlimited number of starts without hidden fees.

Functionality

• Menu in Polish: Facilitates navigation and usage.
• Quick Ready to Work: Immediate operation upon connection.
• Frozen Frames: Data analysis from sensors at the moment of error occurrence.
• I/M Status: Checking the emission system in vehicles.
• VIN Reading: Ability to check the vehicle identification number.

Compatibility

• Range of Supported Vehicles: Wide compatibility with models from 2003 onwards.
• Protocols: Cooperation with various CAN and OBD protocols.
• Note: Some vehicle models and functions may not be supported (e.g., trucks, some Renault models, Volkswagen).

Limitations

Does not support advanced diagnostic functions such as clearing AIRBAG error, ABS braking system, DPF particulate filter regeneration, and key coding for cars.

Device Technical Specifications

• Operating Voltage: 8V to 25V, adapted to automotive standards.
• Operating Current: Maximum 52mA, ensuring effective diagnostics.
• Operating Temperature: Range from -20°C to 70°C allows operation in various conditions.
• Storage Temperature: -30°C to 80°C, enabling the device to be maintained in extreme temperatures.

Package Contents

• T31 Scanner
• User Manual
• Original Packaging

Dimensions and Protocol Compatibility

• Display: Monochrome screen, 128x64 pixels, with backlight.
• Device Dimensions: Length: 115mm, width: 70mm, height: 20mm.

Communication Protocols: Support for various protocols, including:

• SAE J1850 VPW and PWM
• ISO9141-2
• ISO14230-4 (KWP 5BAUD) and (KWP FAST)
• ISO15765-4 CAN (11/500, 29/500, 11/250, 29/250)

Limitations: No support for advanced diagnostic systems (DPF, AIRBAG, ABS) and some vehicle models. Clearing error codes does not resolve technical issues.
