Skaner OBD2 iCarsoft BMM V2.0 dla BMW MINI

Specialized diagnostics for BMW, MINI, and Rolls-Royce

iCarsoft BMM V2.0 is a branded diagnostic tester designed for BMW, MINI, and Rolls-Royce vehicles. The device allows comprehensive diagnostics of all supported vehicle controllers – from the engine, transmission, ABS, and airbags to more advanced comfort, body, and electronic modules.

BMM V2.0 offers 9 of the most commonly used service functions, automatic vehicle identification via AutoVIN, support for the modern CAN FD protocol, and all 10 standard OBDII diagnostic modes.

The tester features a 4″ color TFT screen, intuitive button operation, a menu in 15 languages – including Polish – and lifetime free updates without mandatory subscriptions.

Key advantages of iCarsoft BMM V2.0

• Specialized diagnostics for BMW, MINI, and Rolls-Royce
• Diagnostics of all supported vehicle systems
• 9 popular service functions
• Support for the modern CAN FD protocol
• Automatic vehicle identification via AutoVIN
• Full 10 OBDII / EOBD diagnostic modes
• Reading and clearing DTC fault codes
• Viewing live data parameters
• Reading Freeze Frame data
• Diagnostic history and report saving
• Ability to print reports via a Windows computer
• 4.0″ color TFT LCD screen
• Resolution 480 × 320 px
• Simple operation with physical buttons
• 15 language versions, including Polish
• Lifetime free updates
• No mandatory subscription fees

Compatibility with BMW, MINI, and Rolls-Royce

The manufacturer declares support for BMW, MINI, and Rolls-Royce vehicles from 1996 to 2025. In vehicles equipped with a standard 16-pin OBDII connector, the tester connects directly to the car.

The standard 16-pin OBDII connector primarily covers vehicles from around 2001. In older BMWs manufactured before 2001 with a round 20-pin diagnostic connector, a optional BMW 20-pin adapter is required, sold separately.

The range of available functions depends on the specific model, year, engine version, target market, equipment, and applied controllers. If in doubt before purchase, we recommend checking compatibility by VIN number.

Comprehensive diagnostics of all systems

iCarsoft BMM V2.0 provides access not only to basic engine and emissions systems but also to many controllers specific to BMW, MINI, and Rolls-Royce vehicles.

Depending on the specific vehicle, the tester can support, among others:

• engine controller,
• automatic transmission,
• ABS and brake systems,
• SRS airbag system,
• electronic parking brake,
• steering system,
• stability control systems,
• body and comfort modules,
• air conditioning and heating,
• instrument cluster,
• battery and energy management system,
• tire pressure monitoring system,
• other electronic modules available in the vehicle.

Advanced diagnostic functions

• automatic scanning of available controllers,
• reading DTC fault codes,
• clearing faults after repairs,
• reading ECU identification information,
• viewing live data parameters,
• reading Freeze Frame data,
• automatic vehicle identification via AutoVIN,
• reviewing history of previously diagnosed vehicles,
• saving and sharing diagnostic reports,
• printing diagnostic data via a Windows computer.

9 key service functions

BMM V2.0 is equipped with a set of nine popular procedures used during the routine service of BMW, MINI, and Rolls-Royce vehicles:

• Oil Reset – clearing oil inspection, service indicator, mileage, and service interval after an oil change.
• Electronic Throttle Control – relearning throttle parameters after cleaning, replacing, or resetting.
• EPB / Brake Pad Reset – handling the electronic parking brake, retracting calipers, and resetting after pad replacement.
• SAS Reset – calibrating the steering angle sensor.
• DPF Regeneration – regenerating the particulate filter and selected initialization and relearning procedures for DPF.
• Injector Coding – entering and relearning parameters for replaced injectors.
• ABS Bleeding – assisting in bleeding the brake system and selected procedures after replacing ABS components.
• BMS – Battery Management Service – monitoring battery status, recording its replacement, and managing the energy system.
• TPMS Reset – reading tire pressure sensor IDs, entering new IDs, and testing the system in supported vehicles.

AutoVIN – quick vehicle identification

The AutoVIN function allows for automatic recognition of a compatible vehicle when the tester is connected. This enables quicker diagnostics and reduces the risk of incorrect manual model selection.

If AutoVIN does not recognize a specific vehicle, the vehicle can be selected manually. The lack of automatic VIN reading does not automatically indicate incompatibility or a malfunction of the tester – the function depends on the protocol of the specific controller.

Support for the modern CAN FD protocol

iCarsoft BMM V2.0 supports the CAN FD – Controller Area Network Flexible Data-rate protocol, used in newer generations of BMW, MINI, and Rolls-Royce vehicles.

This allows the tester to communicate with more modern controllers that utilize faster data transmission than classic CAN.

All 10 OBDII / EOBD diagnostic modes

In addition to specialized diagnostics for BMW, MINI, and Rolls-Royce, the device supports the full OBDII standard in compatible vehicles.

• Read Codes – reading fault codes,
• Erase Codes – clearing fault codes,
• I/M Readiness – monitoring emissions readiness,
• Live Data – current parameters,
• Freeze Frame – frozen data frames,
• Vehicle Information – vehicle information,
• O2 Monitor Test – lambda sensor test,
• On-Board Monitor Test – on-board monitor test,
• EVAP System Test – evaporative emissions system test,
• Pending Codes – reading pending codes.

Compatible vehicles that comply with OBDII, EOBD, JOBD, KOBD, CAN, and CAN FD standards are supported.

Diagnostics of classic BMW – optional 20-pin adapter

BMM V2.0 can also be used with selected older BMW vehicles equipped with a round 20-pin diagnostic connector. This requires the use of a dedicated iCarsoft BMW 20-pin adapter, sold separately.

The manufacturer indicates the possibility of supporting, among others, selected models and chassis:

• E23,
• E24,
• E28,
• E30,
• E31,
• E32,
• E34,
• E36,
• E38,
• Z3 (E36),
• early E39,
• early E46,
• E52 Z8,
• early E53 X5.

The 20-pin adapter is not included in the standard package.

Lifetime free updates

The manufacturer provides lifetime free software updates without annual subscription fees, unlocking fees, or mandatory subscriptions.

Updates are performed via a PC using the included TF card reader. A Wi-Fi connection is not required in the tester itself.

Subsequent updates may expand the database of supported vehicles, add new protocols, and improve communication with selected controllers.

Diagnostic history and reports

The tester allows storing information about previously diagnosed vehicles and scan results.

• quick access to previously tested systems,
• saving diagnostic results,
• saving and sharing reports,
• printing reports when connected to a Windows computer,
• Feedback function allowing reporting diagnostic issues to the manufacturer.

Polish language version – 15 menu languages

iCarsoft BMM V2.0 supports 15 language versions:

• Polish,
• English,
• German,
• French,
• Dutch,
• Spanish,
• Czech,
• Swedish,
• Russian,
• Hungarian,
• Norwegian,
• Portuguese,
• Italian,
• Danish,
• Finnish.

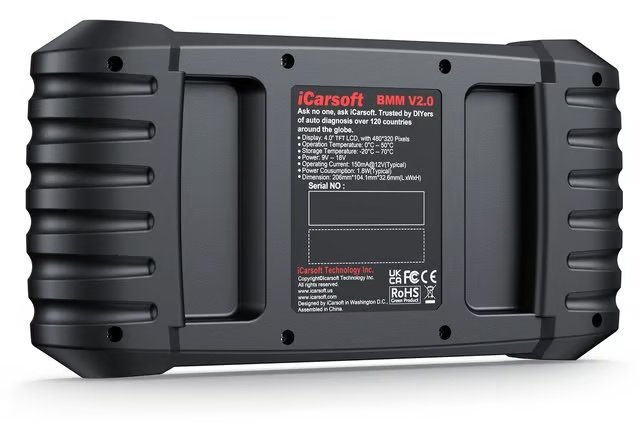

Technical specifications

• Display: color TFT LCD 4.0″
• Resolution: 480 × 320 px
• Operation: physical navigation buttons
• Connectivity: USB 2.0 / OBDII
• Operating voltage: 9–18 V
• USB Type-C input: 5 V / 500 mA
• Typical power consumption: about 1.8 W
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Operating humidity: 5–95%, non-condensing
• Dimensions: 206 × 104.1 × 32.6 mm
• Net weight: about 350 g
• Update: PC + TF card reader

Supported communication protocols

• ISO 9141-2,
• ISO 14230-2,
• ISO 15765,
• K-Line and L-Line,
• Flashing Code,
• SAE J1850 VPW,
• SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN FD,
• SAE J2610,
• GM UART,
• UART Echo Byte Protocol,
• Honda Diag-H Protocol,
• TP 2.0,
• TP 1.6.

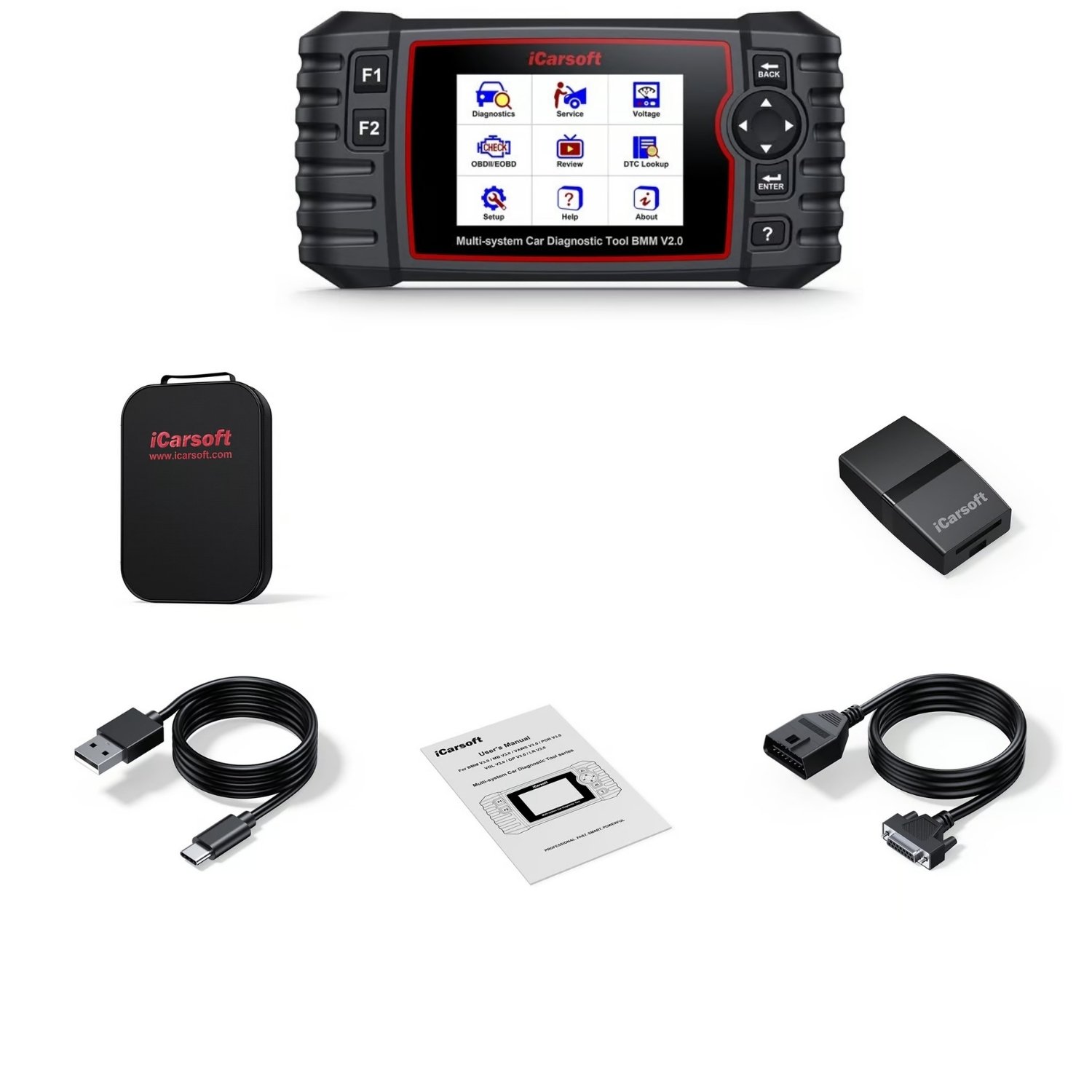

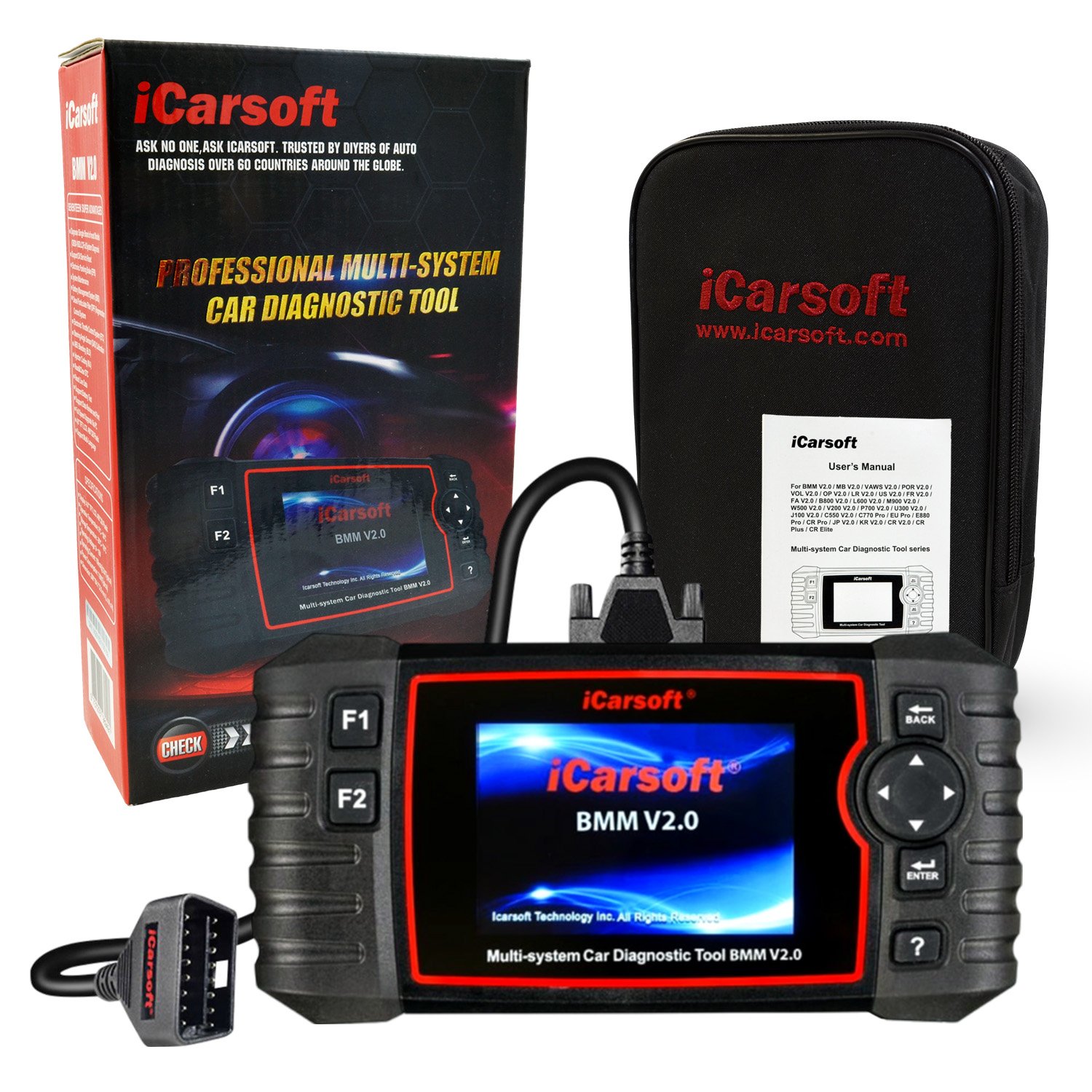

Package contents

• iCarsoft BMM V2.0 diagnostic tester,
• main 16-pin OBDII diagnostic cable,
• USB Type-C cable,
• TF card reader for updates,
• user manual,
• iCarsoft carrying case / bag.

The BMW 20-pin adapter for older vehicles is sold separately and is not included in the standard package.

The exact contents of the package may vary depending on the product batch and distribution version.

Simple step-by-step operation

1. Connect the tester to the standard 16-pin OBDII socket in the vehicle.
2. Turn on the ignition according to the device instructions.
3. Use AutoVIN or select the vehicle manually.
4. Start scanning available controllers.
5. Read saved fault codes and current parameters.
6. Before clearing faults, save their numbers and Freeze Frame data.
7. After removing the cause of the fault, clear the faults and perform re-diagnostics.
8. If necessary, select the appropriate service function, e.g., BMS, DPF, EPB, or oil reset.
9. Regularly update the device using a computer and TF card reader.

Who is iCarsoft BMM V2.0 intended for?

• for owners of BMW, MINI, and Rolls-Royce vehicles,
• for individuals performing basic car service themselves,
• for enthusiasts and home mechanics,
• for independent workshops specializing in BMW and MINI vehicles,
• for car dealerships and sellers,
• for individuals checking a car before purchase,
• for users needing more capabilities than a standard universal OBD2 reader offers.

Key differences between iCarsoft BMM V2.0 and BMM V3.0

• BMM V2.0 has diagnostics for all systems and 9 basic service functions.
• BMM V3.0 adds bi-directional control / active tests.
• BMM V3.0 has a broader set of higher-level service functions.
• Both models have a 4″ screen operated by physical buttons.
• Both models offer lifetime free updates.
• Both models support full diagnostics of BMW, MINI, and Rolls-Royce systems.

BMM V2.0 does not have bi-directional control / Active Test functions. If active component activation from the scanner is needed, BMM V3.0 or a higher model should be selected.

Updates, documentation, and manufacturer support

• Lifetime free software updates
• No mandatory annual subscription fees
• Access to the multilingual user manual from the manufacturer
• Access to compatibility and function lists for supported vehicles
• Feedback function allowing submission of diagnostic issue information
• Manufacturer's warranty according to current iCarsoft terms

Why choose iCarsoft BMM V2.0?

iCarsoft BMM V2.0 is a good solution for owners of BMW, MINI, and Rolls-Royce who need significantly broader diagnostics than a basic OBD2 reader. The device provides access to many vehicle controllers, reading and clearing faults, monitoring Live Data, and performing nine popular service procedures.

Support for CAN FD, AutoVIN, 15 languages including Polish, a 4″ color screen, and lifetime free updates make the tester suitable for use both in a home garage and in an independent workshop.

BMM V2.0 is a sensible choice for users who need comprehensive diagnostics for BMW / MINI / Rolls-Royce and the most important service resets but do not require active tests available in the BMM V3.0 model.

Important information regarding compatibility

The range of available diagnostic and service functions depends on the specific vehicle, model, year, engine, target market, equipment version, and applied ECU controllers.

Not all 9 service functions must be available in every vehicle. Before purchasing for a specific car, we recommend checking compatibility based on the model, year, engine version, and VIN number.

The standard 16-pin OBDII connector is primarily used in vehicles from around 2001. Selected older BMWs require an optional 20-pin adapter, which is not included in the standard package.

BMM V2.0 does not support active tests / bi-directional control. This function is available in BMM V3.0 and higher models.

The tester does not replace the manufacturer's factory software for full online programming, firmware updates for all controllers, or functions requiring authorized access to the vehicle manufacturer's servers.
