OBD2 scanner iCarsoft FR V2.0 Citoren Peugeot Renault Dacia Fiat Alfa Lancia

Specialized diagnostics for French and Italian cars

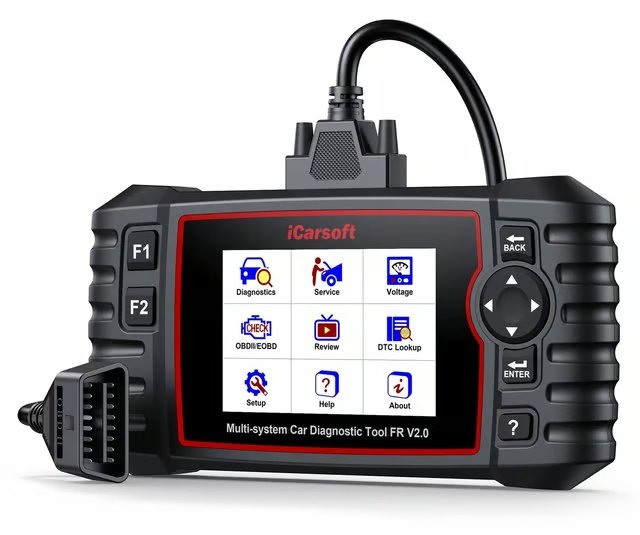

iCarsoft FR V2.0 is a multi-system diagnostic tester designed for French and Italian cars. The device allows diagnostics of all supported vehicle controllers – from the engine, transmission, ABS, and airbags to more advanced body, comfort, and electronic modules.

FR V2.0 supports 12 brands, offers 9 most commonly used service functions, automatic identification via AutoVIN, modern CAN FD protocol, and all 10 standard OBDII modes.

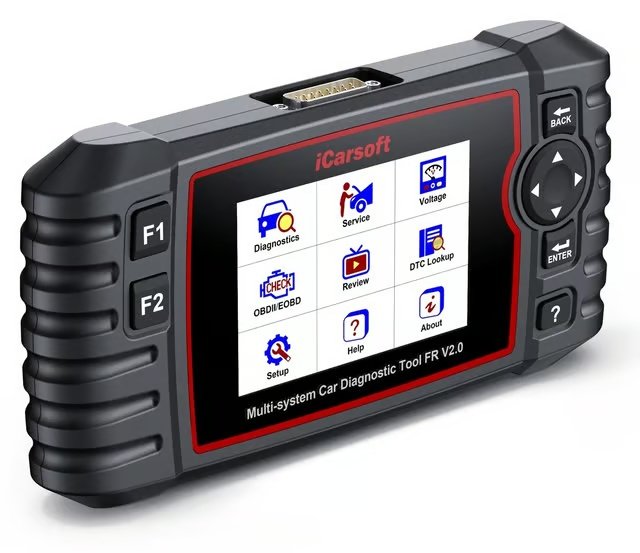

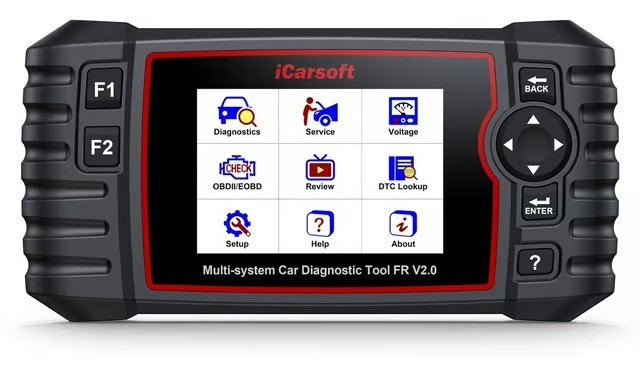

The tester features a 4″ color TFT screen, physical navigation buttons, 15 language versions – including Polish – and lifetime free updates performed via PC.

Key advantages of iCarsoft FR V2.0

• Diagnostics of all supported vehicle systems
• Specialized software for 12 French and Italian brands
• 9 popular service functions
• Support for CAN FD
• AutoVIN
• Reading and clearing DTC fault codes
• Reading ECU information
• Live Data
• Freeze Frame
• Full 10 OBDII / EOBD modes
• 4.0″ color TFT screen 480 × 320 px
• 15 menu languages, including Polish
• Diagnostic history and reports
• Printing reports via Windows PC
• Updating via PC and TF card reader
• Lifetime free updates
• No mandatory subscription

12 French and Italian brands – one tester

The manufacturer declares support for the following brands:

• Abarth
• Fiat
• Lancia
• Alfa Romeo
• Ferrari
• Maserati
• Citroën
• DS
• Peugeot
• Dacia
• Renault
• Renault Samsung

The manufacturer claims wide compatibility with cars from 1996–2025. The exact range of functions depends on the specific model, year, engine, target market, and ECU controller.

Comprehensive diagnostics of all systems

FR V2.0 provides access not only to basic engine and exhaust emission systems but also to other supported electronic modules of the car.

• engine controller,
• transmission,
• ABS and braking systems,
• SRS airbags,
• EPB,
• steering system,
• driving stability systems,
• body and comfort modules,
• air conditioning and heating,
• energy management systems,
• emission modules,
• other controllers available in the vehicle.

Advanced diagnostic functions

• Read DTCs – reading fault codes,
• Clear DTCs – clearing errors after repairs,
• ECU Information – part numbers, software versions, and controller information,
• Live Data – viewing current parameters,
• Freeze Frame – data recorded at the time of the fault,
• automatic scanning of available modules,

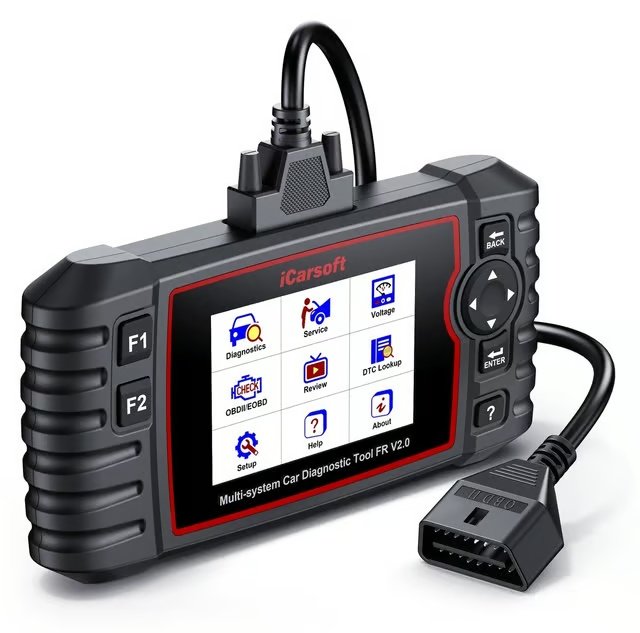

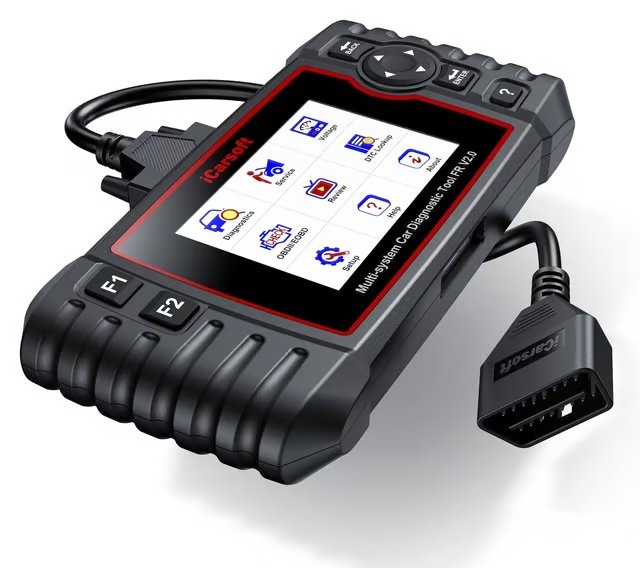

• access to supported ECUs via 16-pin OBDII connector,
• AutoVIN, diagnostic history, saving and printing reports.

9 key service functions

• Oil Service Reset – resetting oil inspection and service interval.
• SAS Reset – calibration of the steering angle sensor.
• EPB / Brake Pad Reset – handling the electric parking brake and reset after replacing pads.
• Electronic Throttle Control – throttle adaptation.
• DPF Regeneration – DPF filter regeneration and selected service procedures.
• Injector Coding – entering injector parameters.
• ABS Bleeding – assisting in bleeding the braking system.
• BMS Reset – registering battery replacement and handling BMS.
• TPMS Reset – reset and handling functions for TPMS.

Not every function is available in every car. The range depends on the brand, model, year, and specific ECU.

AutoVIN – quick vehicle identification

The AutoVIN function can automatically read the VIN and recognize the compatible vehicle. If AutoVIN does not recognize the car, the vehicle can be selected manually. Lack of automatic identification does not indicate a malfunction of the tester or an automatic lack of compatibility.

Support for modern CAN FD protocol

FR V2.0 supports CAN FD – Controller Area Network Flexible Data-rate, used in newer French and Italian cars. This standard provides greater bandwidth and faster communication than classic CAN.

All 10 OBDII / EOBD diagnostic modes

• Read Codes,
• Erase Codes,
• I/M Readiness,
• Live Data,
• Freeze Frame,
• Vehicle Information,
• O2 Monitor Test,
• On-Board Monitor Test,
• EVAP System Test,
• Pending Codes.

The tester supports compatible vehicles in accordance with OBDII, EOBD, JOBD, KOBD, CAN, and CAN FD standards.

Lifetime free updates

The manufacturer provides lifetime free software updates without an annual subscription. Updates are performed via PC using the included TF card reader. Wi-Fi is not required.

Diagnostic history and reports

• quick access to previously diagnosed vehicles and systems,
• saving results and reports,
• sharing reports,
• printing data via Windows PC via USB,
• Feedback function for reporting diagnostic issues.

15 language versions, including Polish

FR V2.0 supports: Polish, English, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Danish, and Finnish.

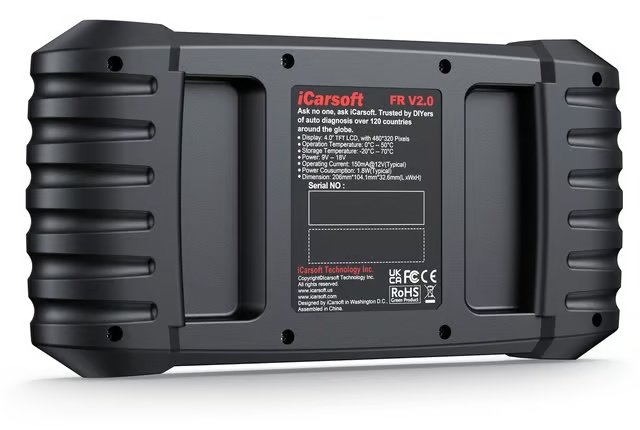

Technical specifications

• Display: TFT LCD 4.0″
• Resolution: 480 × 320 px
• Connectivity: USB 2.0 / OBDII
• Power Supply: 9–18 V
• USB Type-C: 5 V / 500 mA
• Typical power consumption: 1.8 W
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Humidity: 5–95%, non-condensing
• Dimensions: 206 × 104.1 × 32.6 mm
• Net weight: approximately 350 g

Supported communication protocols

• ISO 9141-2, ISO 14230-2, ISO 15765,
• K-Line and L-Line, Flashing Code,
• SAE J1850 VPW, SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN FD, SAE J2610, GM UART, UART Echo Byte Protocol,
• Honda Diag-H Protocol, TP 2.0, TP 1.6.

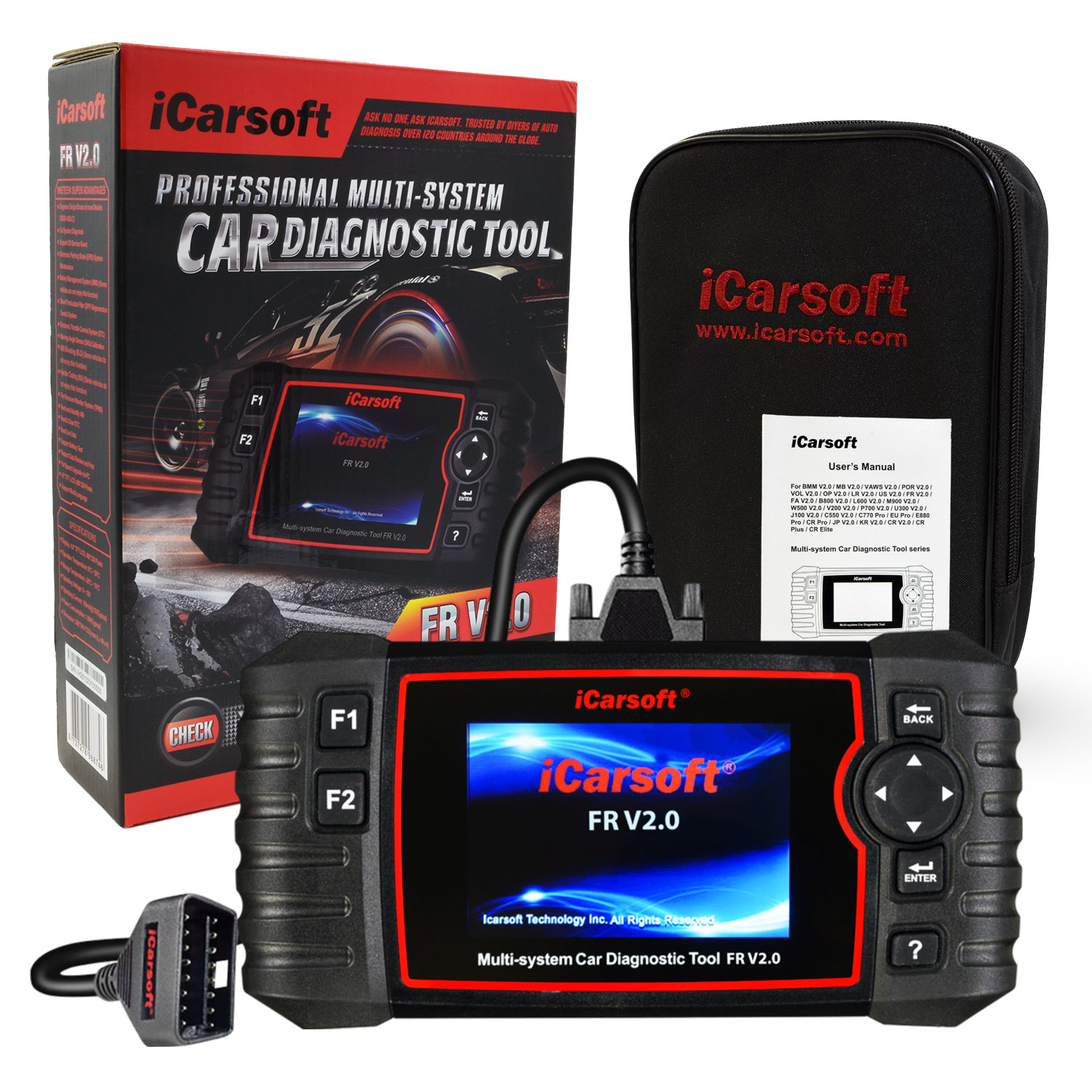

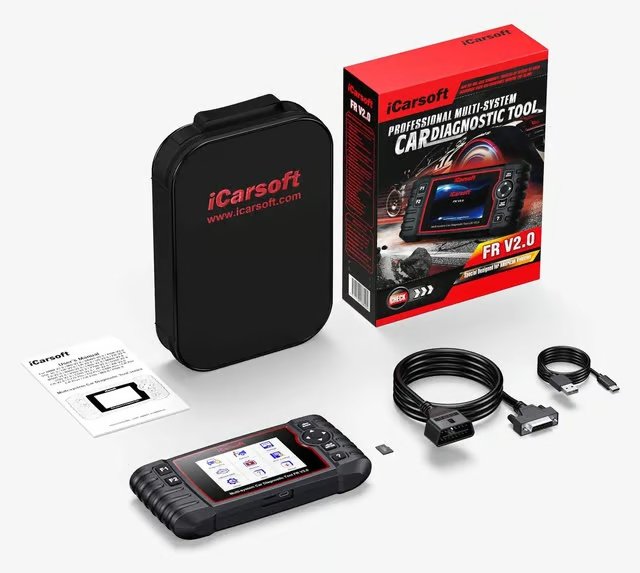

Package contents

• iCarsoft FR V2.0 diagnostic tester,
• main 16-pin OBDII diagnostic cable,
• USB Type-C cable,
• TF card reader for updates,
• user manual,
• case / transport bag.

The exact contents of the package may vary depending on the product batch and distribution version.

Simple step-by-step operation

1. Connect the tester to the 16-pin OBDII socket.
2. Turn on the ignition.
3. Use AutoVIN or select the vehicle manually.
4. Start scanning available controllers.
5. Read errors and Live Data parameters.
6. Before clearing, save codes and Freeze Frame.
7. After repairs, clear errors and recheck the system.
8. If necessary, run the service function.
9. Regularly update the tester via PC.

Who is iCarsoft FR V2.0 intended for?

• for owners of French and Italian cars,
• for home mechanics and automotive enthusiasts,
• for independent workshops,
• for car dealerships and trading companies,
• for individuals checking a car before purchase,
• for users needing full system diagnostics without active tests.

Main differences between iCarsoft FR V2.0, FR V3.0, and FR V4.0

• FR V2.0 – 4″ screen, buttons, full system diagnostics, and 9 basic service functions.
• FR V3.0 – additionally bi-directional control / active tests and an extended set of advanced service functions.
• FR V4.0 – 5″ touchscreen and updates via Wi-Fi.

All three models support the same 12 French and Italian brands, full system diagnostics, AutoVIN, and 9 basic service functions.

Why choose iCarsoft FR V2.0?

iCarsoft FR V2.0 combines specialized diagnostics for French and Italian cars with simple operation and no subscription fees. It allows diagnosing all supported modules, reading and clearing faults, analyzing Live Data, and performing nine popular service procedures.

This is a good choice for users of Renault, Dacia, Peugeot, Citroën, Fiat, Alfa Romeo, and other supported brands who need more capabilities than a standard OBD2 reader offers.

Important information regarding compatibility

The range of available diagnostic, service, AutoVIN, and CAN FD functions depends on the specific brand, model, year, engine, target market, equipment, and applied ECU controllers.

Not every of the 9 service functions is available in every vehicle. Before purchase, we recommend checking compatibility based on the exact model, year, engine version, and VIN number.

FR V2.0 does not have bi-directional control / Active Test. This function is available in FR V3.0 and FR V4.0.

The tester does not replace the manufacturer's factory software in terms of full online programming and firmware updates for controllers.
