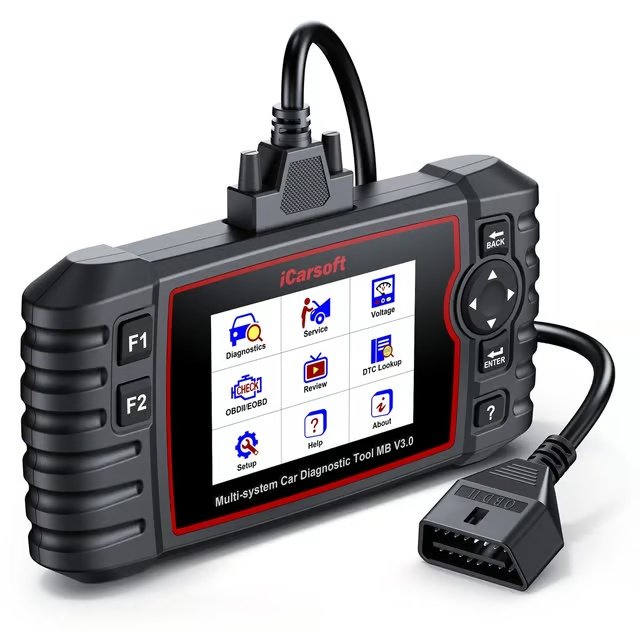

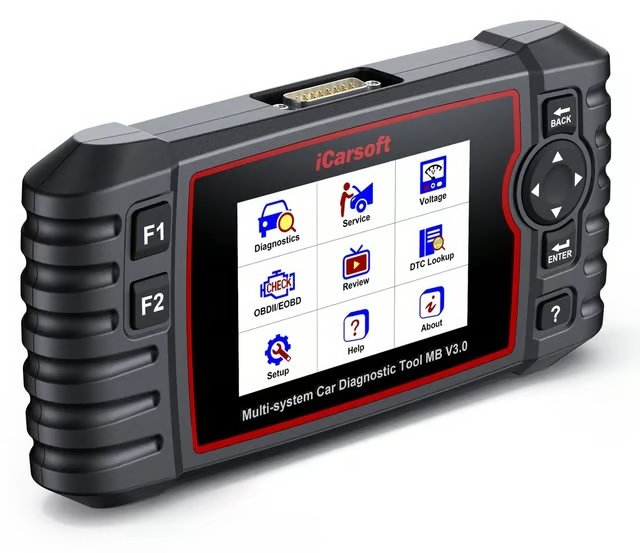

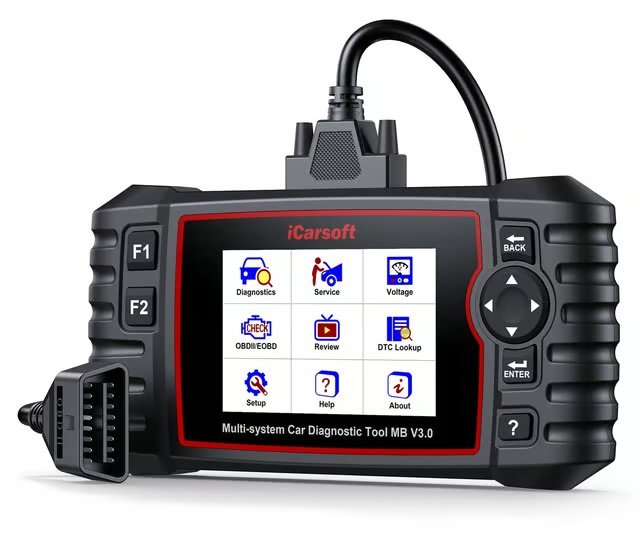

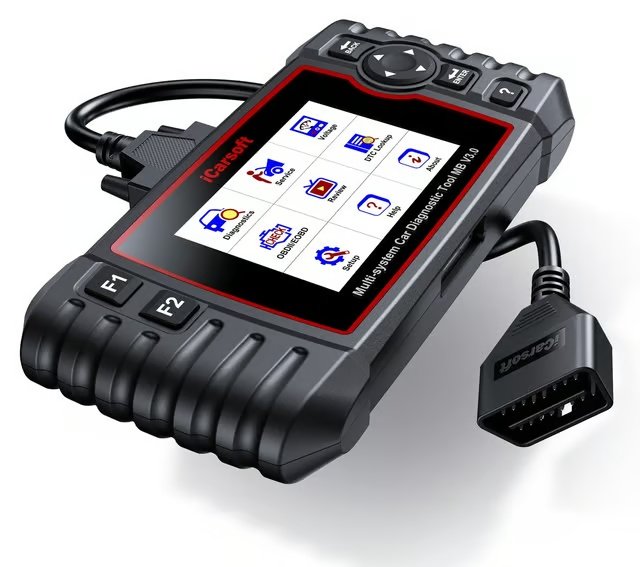

Scanner OBD2 iCarsoft MB for MERCEDES

Advanced diagnostics for Mercedes-Benz

iCarsoft MB V3.0 is a specialized diagnostic tester designed for Mercedes-Benz, Sprinter, Smart, and Maybach vehicles. The manufacturer claims support for vehicles from 1996–2025, depending on the specific model, year, and ECU configuration.

The device provides diagnostics for all available vehicle systems – from the engine, transmission, ABS, and SRS to advanced body, comfort, suspension, and assistance systems.

Compared to the MB V2.0, the V3.0 model primarily adds full bidirectional control / Active Test, a significantly larger range of service functions, and advanced OE-class adaptation procedures.

Key advantages of iCarsoft MB V3.0

• Full diagnostics of all systems
• Mercedes-Benz / Sprinter / Smart / Maybach
• Full bidirectional control / Active Test
• 22+ activation tests – depending on the vehicle
• 39 service functions – 9 popular + 30 advanced
• Advanced OE adaptations
• CAN FD
• AutoVIN
• Reading and clearing DTC fault codes
• Live Data
• Freeze Frame
• Reading ECU information
• 10 OBDII / EOBD modes
• Diagnostic history and reports
• Printing reports via Windows computer

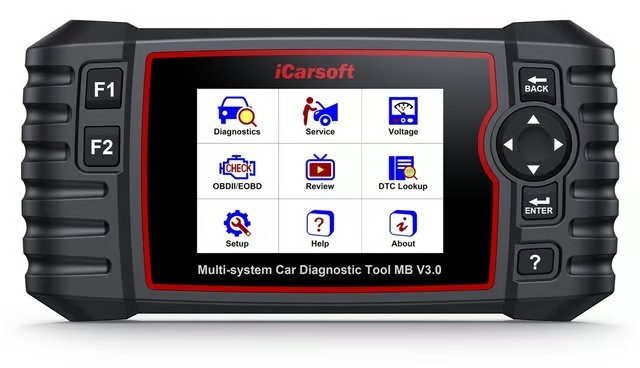

• 4.0″ TFT color screen 480 × 320 px
• Physical navigation buttons
• 15 languages, including Polish
• Lifetime free updates
• No mandatory subscription

Mercedes-Benz, Sprinter, Smart, and Maybach – 1996–2025

MB V3.0 has been developed specifically for vehicles:

• Mercedes-Benz
• Mercedes-Benz Sprinter
• Smart
• Maybach

The manufacturer claims broad compatibility with vehicles from 1996 to 2025.

Important: the exact range of diagnostic functions, active tests, and service functions depends on the specific model, year, engine, target market, equipment, and ECU configuration.

Full diagnostics of all systems

MB V3.0 provides access not only to basic modules but also to more advanced electronic systems of the vehicle.

• engine / ECU,
• automatic transmission,
• ABS / ESP and braking systems,
• SRS airbags,
• electronic parking brake EPB,
• air suspension,
• steering system,
• air conditioning and HVAC,
• body and comfort modules,
• door, window, seat, and roof systems,
• lighting,
• driver assistance systems,
• other controllers available in the specific vehicle.

Advanced diagnostic functions

• Read DTCs – reading fault codes from all available modules,
• Clear DTCs – clearing errors after repairs,
• ECU Information – identifying controllers and reading ECU information,
• Live Data – viewing operational parameters in real-time,
• Freeze Frame – data saved at the time of the fault occurrence,
• automatic scanning of available systems,
• diagnostic history,
• saving, sharing, and printing reports.

Full activation tests / bidirectional control

MB V3.0 can send commands directly to controllers and activate selected actuators. This allows checking the response of a component without replacing parts through trial and error.

The manufacturer claims 22+ active tests, and their number may increase with updates.

Depending on the vehicle, available tests may include:

• activating the ABS pump,
• controlling electric windows,
• activating the fuel pump,
• wiper and washer test,
• controlling the EGR valve,
• testing individual injectors,
• activating radiator fans,
• testing transmission solenoids,
• other output tests available in specific modules.

The range of active tests depends on the specific model and ECU.

39 service functions – 9 most commonly used

MB V3.0 offers a total of 39 service functions: 9 popular daily service procedures and 30 more advanced workshop functions.

• Oil Reset – resetting oil inspection and service interval.
• Electronic Throttle Control – throttle adaptation.
• EPB / Brake Pad Reset – servicing the electronic parking brake and replacing pads.
• SAS Reset – calibrating the steering angle sensor.
• DPF Regeneration – DPF regeneration and selected adaptation procedures.
• Injector Coding – coding / adapting injector parameters.
• ABS Bleeding – assisting in bleeding the ABS system.
• Air Suspension Service – calibrating, adjusting height, and resetting air suspension.
• BMS – registering battery replacement and managing the battery system.

30 advanced service functions

Among the more advanced procedures, the manufacturer lists:

• TPMS Reset,
• Air Conditioner Service,
• Head Lamp Service,
• Body Stability Control Service,
• Engine Control Service,
• Transmission Control Service,
• Seat Service,
• Door-Window-Roof,
• Fuel Pump Service,
• Air Filter Control Service,
• Engine Idle Service,
• Immobilizer Service – for vehicles with a basic immobilizer system,
• Door Service,
• Exhaust Gas Recirculation / EGR,
• AdBlue Reset,
• Clutch Matching,
• Electronic Water Pump,
• Crankshaft Learning,
• Cruise Control System,
• Vehicle Language Setting,
• NOx Sensor Service,
• Rain-Light Sensor calibration,
• Automatic Stop and Start,
• Turbocharger Learning,
• Radar / Camera calibration,
• Cylinder Shutoff Test,
• Speed Limit Assist,
• Control Unit Reset,
• O2 Sensor Service,
• Seat Belt Service.

Additional procedures may be available in the Miscellaneous section. Availability depends on the specific vehicle and controller.

Advanced OE-class adaptive functions

MB V3.0 also features advanced adaptive procedures designed for more demanding repairs on Mercedes-Benz vehicles.

The manufacturer indicates:

• calibrating the intake valve,
• calibrating the front oxygen sensor,
• adapting after replacing the NOx storage catalyst,
• resetting learned values of NOx sensors in the SCR system,
• Drive Authorization System Teach-in procedures,
• learning the position of the camshaft,
• procedures after replacing the rear NOx SCR sensor,
• resetting calibration values,
• learning the pedal angle sensor,
• learning the intake flap / channel system,
• programming wheel electronics identifiers.

Important: these functions do not imply full online programming of all controllers or complete replacement of the factory Mercedes-Benz XENTRY system.

AutoVIN – automatic vehicle recognition

The AutoVIN function allows for automatic reading of the VIN and recognizing the compatible vehicle upon connecting the tester. This speeds up the start of diagnostics and reduces the risk of selecting the wrong model.

If AutoVIN does not recognize the vehicle, manual selection can be used. The lack of automatic VIN identification does not automatically mean a lack of compatibility.

CAN FD – support for modern Mercedes vehicles

MB V3.0 supports CAN FD, used by Mercedes-Benz in newer platforms since around 2020.

The manufacturer indicates compatibility with modern platforms such as selected versions of W213, W223, and W167.

The actual availability of CAN FD communication depends on the architecture of the specific vehicle.

All 10 OBDII / EOBD modes

• Read Codes,
• Erase Codes,
• I/M Readiness,
• Live Data,
• Freeze Frame,
• Vehicle Information,
• O2 Monitor Test,
• On-Board Monitor Test,
• EVAP System Test,
• Pending Codes.

The tester supports compatible vehicles that comply with OBDII, EOBD, JOBD, KOBD, CAN, and CAN FD standards.

Older Mercedes and Sprinters – optional adapters

MB V3.0 can also work with older vehicles that do not have a standard 16-pin OBDII socket.

• Mercedes 38-pin – including C-Class W202 up to 2000, E-Class W210 up to 2002, S-Class W140 up to 1998, CLK W208 up to 2003, SLK R170, SL R129 up to 2002, and similar models.
• Sprinter 14-pin – for selected older Sprinter T1N and early NCV3 models.

38-pin and 14-pin adapters are sold separately. Before purchasing, please check the actual diagnostic socket of the vehicle.

Diagnostic history and reports

• quick access to previously diagnosed vehicles and systems,
• saving scan results,
• saving and sharing reports,
• printing reports when the device is connected to a Windows computer via USB,
• Feedback function for reporting diagnostic issues to the manufacturer.

Lifetime free updates

iCarsoft MB V3.0 comes with lifetime free software updates. There is no mandatory subscription, renewal fees, or disabling of functions after the license period ends.

Updates are performed via a PC using the included TF card reader. Wi-Fi connection is not required.

15 language versions – including Polish

MB V3.0 supports:

• Polish,
• English,
• German,
• French,
• Dutch,
• Spanish,
• Czech,
• Swedish,
• Russian,
• Hungarian,
• Norwegian,
• Portuguese,
• Italian,
• Danish,
• Finnish.

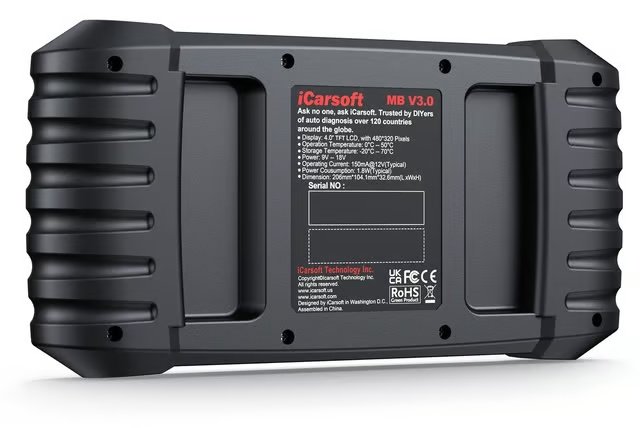

Technical specifications

• Display: color TFT LCD 4.0″
• Resolution: 480 × 320 px
• Operation: physical buttons
• Connectivity: USB 2.0 / OBDII
• Power supply: 9–18 V
• USB Type-C: 5 V / 500 mA
• Typical power consumption: 1.8 W
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Humidity: 5–95%, non-condensing

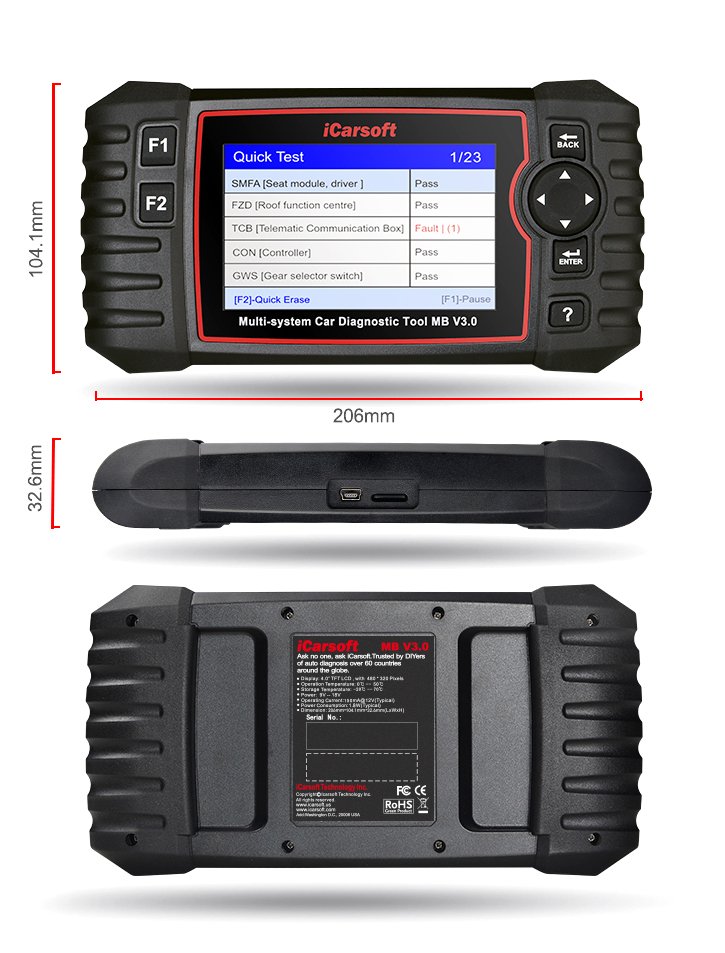

• Dimensions: 206 × 104.1 × 32.6 mm
• Net weight: approximately 350 g

Supported communication protocols

• ISO 9141-2,
• ISO 14230-2,
• ISO 15765,
• K-Line / L-Line,
• Flashing Code,
• SAE J1850 VPW,
• SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN FD,
• SAE J2610,
• GM UART,
• UART Echo Byte Protocol,
• Honda Diag-H Protocol,
• TP 2.0,
• TP 1.6.

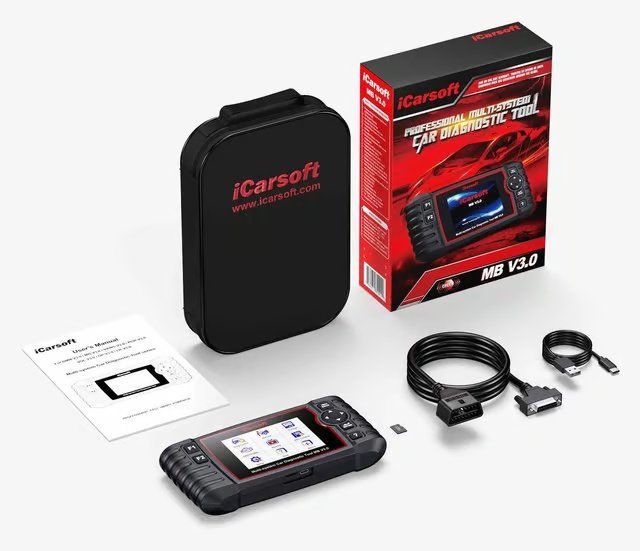

Package contents

The standard MB V3.0 package includes the tester and accessories needed for diagnostics, updates, and storage of the device.

• iCarsoft MB V3.0 diagnostic tester,
• standard 16-pin OBDII connection,
• USB Type-C cable,
• TF card reader for updates,
• user manual,
• carrying case / transport bag.

38-pin Mercedes and 14-pin Sprinter adapters are optional accessories and are not included in the standard package.

iCarsoft MB V2.0, MB V3.0, and MB V4.0 – key differences

• MB V2.0 – 4″ screen, physical buttons, full diagnostics, and basic service functions, without active tests.
• MB V3.0 – 4″ screen, physical buttons, full activation tests, 39 service functions, and advanced adaptations.
• MB V4.0 – 5″ touchscreen, Wi-Fi, activation tests, and the ability to add 2 additional brand groups.

MB V3.0 is the generation that introduces full bidirectional control and significantly expanded workshop functions while maintaining a compact design and physical buttons.

Who is iCarsoft MB V3.0 intended for?

• for owners of Mercedes-Benz, Smart, and Maybach,
• for Sprinter users,
• for advanced users servicing their own vehicles,
• for mechanics and diagnosticians,
• for independent workshops specializing in Mercedes-Benz,
• for dealerships and car trading companies,
• for individuals checking a vehicle before purchase,
• for users needing active tests without purchasing a large workshop tablet.

Basic operation step by step

1. Connect the tester to the 16-pin OBDII socket or use the appropriate adapter in an older vehicle.
2. Turn on the ignition.
3. Use AutoVIN or select the vehicle manually.
4. Start scanning available controllers.
5. Read fault codes and Live Data parameters.
6. Before clearing, save DTC and Freeze Frame.
7. If necessary, perform an activation test, adaptation, or service function.
8. After repairs, clear errors and rescan the vehicle.
9. Regularly update the tester via a computer and TF card reader.

Important information regarding compatibility

The range of available diagnostic functions, 39 service functions, active tests, OE adaptations, AutoVIN, and CAN FD depends on the specific model, year, engine, target market, equipment, and ECU configuration.

Not every function is available in every vehicle. Before purchasing for a specific vehicle, we recommend checking compatibility based on the model, year, engine, and VIN number.

In older Mercedes and Sprinters, optional 38-pin or 14-pin adapters may be required.

Advanced adaptations do not imply full online programming of all controllers or complete replacement of the factory XENTRY system.

Clearing a fault code does not remove the physical cause of the fault. If the problem persists, the error may reappear.

Why choose iCarsoft MB V3.0?

iCarsoft MB V3.0 combines full diagnostics for Mercedes-Benz / Sprinter / Smart / Maybach with workshop-class functions. It offers 22+ active tests, 39 service functions, advanced OE adaptations, CAN FD, AutoVIN, and full OBDII/EOBD diagnostics.

A significant advantage is also lifetime free updates, the Polish language, and no mandatory subscription.

This is a very good choice for a user or workshop that needs significantly greater capabilities than MB V2.0 but prefers a compact 4″ tester with physical buttons.
