OBD2 scanner iCarsoft OP V3.0 Opel

Advanced diagnostics for Opel and Vauxhall

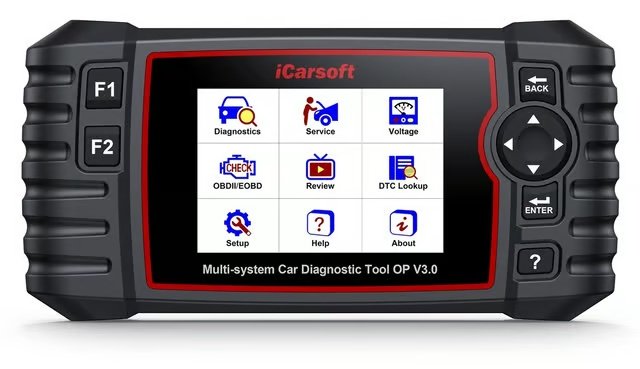

iCarsoft OP V3.0 is an advanced diagnostic tester designed for Opel and Vauxhall vehicles. The device provides diagnostics for all available vehicle systems, full bi-directional control, 32 service functions, AutoVIN, and CAN FD support.

Compared to OP V2.0, the V3.0 model primarily adds full active tests / Bi-Directional Control and a significantly expanded set of service and adaptation procedures.

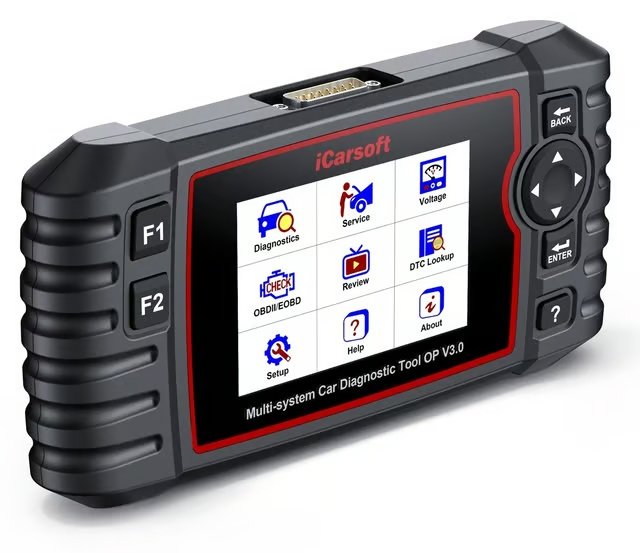

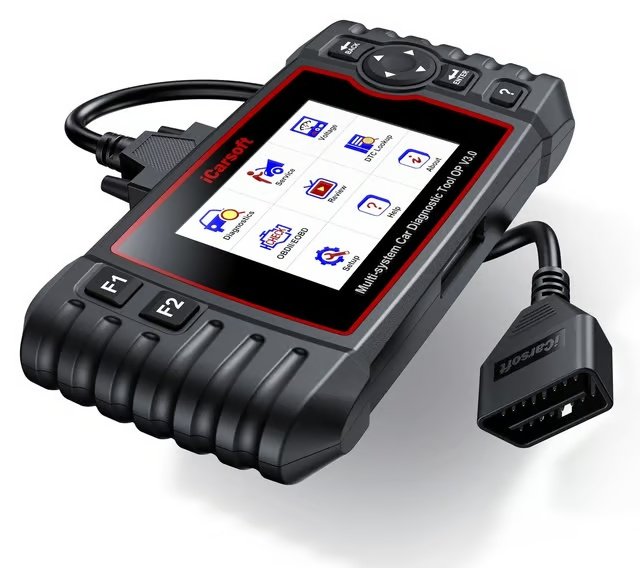

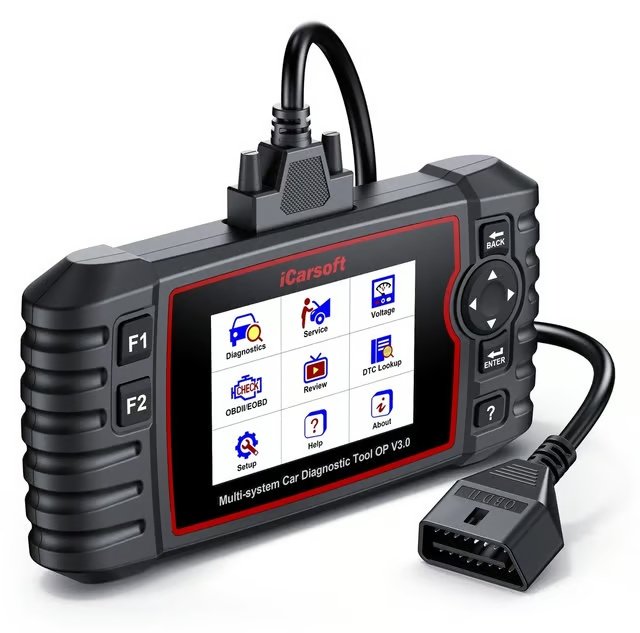

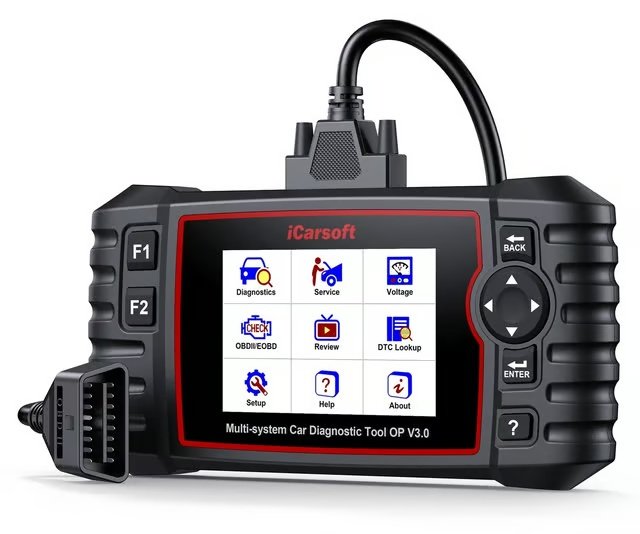

The tester features a 4-inch screen, physical buttons, and updates via computer and TF card reader. The manufacturer offers lifetime free updates without a subscription.

Main advantages of iCarsoft OP V3.0

• Full diagnostics of all Opel / Vauxhall systems
• Bi-directional control / Active Test
• 32 service functions – 9 popular + 23 advanced
• AutoVIN
• CAN FD
• Reading and clearing DTC fault codes
• Live Data
• Freeze Frame
• Reading ECU information
• 10 OBDII / EOBD modes
• Diagnostic history
• Saving, sharing, and printing reports
• 4.0″ TFT color screen 480 × 320 px
• Physical navigation buttons
• 15 languages, including Polish
• Update via computer and TF card reader
• Lifetime free updates
• No mandatory subscription

Full bi-directional control / Active Test

OP V3.0 allows sending commands directly to the vehicle's controllers and observing the components' responses in real-time. This helps to quickly differentiate between electrical, mechanical issues, or problems with the ECU control itself.

The manufacturer claims over 22 active tests, depending on the vehicle model and configuration, including:

• activating the ABS pump,
• controlling window lifters,
• activating the fuel pump,
• opening the throttle,
• controlling the EGR valve,
• controlling individual injectors,
• activating radiator fans,
• testing transmission solenoids.

The range of active tests depends on the specific model, year, and ECU controller.

Support for Opel and Vauxhall

OP V3.0 has been developed specifically for vehicles:

• Opel
• Vauxhall

The device offers access to full system diagnostics in compatible vehicles.

Important: the exact range of functions depends on the model, year, engine, target market, equipment, and ECU configuration.

Full diagnostics of all systems

OP V3.0 provides diagnostics not only for the four basic systems but also for more advanced electronic modules of the vehicle.

• engine / ECU,
• automatic transmission,
• ABS / ESP and braking systems,
• SRS airbags,
• electronic parking brake EPB,
• steering system,
• air conditioning and HVAC,
• body and comfort modules,
• lighting systems,
• energy and battery management systems,
• TPMS,
• other controllers available in the specific vehicle.

Diagnostic functions

• Read DTCs – reading fault codes from all available modules,
• Clear DTCs – clearing errors after the cause of the fault has been removed,
• ECU Information – identifying controllers and reading ECU information,
• Live Data – viewing real-time parameters,
• Freeze Frame – reading data recorded at the time of the error,
• automatic scanning of available systems,
• active tests,
• diagnostic history,
• saving and printing reports.

9 most commonly used service functions

iCarsoft OP V3.0 has 9 popular service procedures for everyday vehicle maintenance:

• Oil Reset – resetting the oil life system, service light, mileage, and interval after an oil change.
• Electronic Throttle Control – re-adapting throttle parameters after a reset or replacement.
• EPB / Brake-Pad Reset – retracting the electric parking brake calipers and resetting after pad replacement.
• SAS Reset – calibrating the steering angle sensor.
• DPF Regeneration – regenerating the DPF and selected initialization and re-learning procedures.
• Injector Coding – re-learning control parameters after injector replacement.
• ABS Bleeding – bleeding the system and selected procedures after ABS replacement.
• TPMS Reset – reading sensor IDs, entering replacement sensor IDs, and TPMS tests.
• BMS – assessing charge status, monitoring standby current, recording battery replacement, and activating sleep mode in compatible vehicles.

23 advanced service functions

In addition to the 9 basic procedures, OP V3.0 offers 23 professional-grade functions:

• Air Conditioner Service – resetting air conditioning adaptation, resetting and breaking in the compressor, initializing stepper motors.
• Head Lamp Service – initializing adaptive headlights.
• Body Stability Control Service – resetting / clearing adaptive values and initializing the stability module.
• Engine Control Service – resetting or clearing adaptive values of the engine controller and selected calculations.
• Transmission Control Service – resetting transmission adaptation and adapting the transmission oil level.
• Door-Window-Roof – learning the end positions of windows and pinch protection functions.
• Immobilizer Service – adding new keys and deactivating lost keys in vehicles with a basic immobilizer.
• Engine Idle Service – adjusting idle speed.
• Fuel Pump Service – activating the fuel pump after replacement.
• Turbocharger – learning the turbocharger after replacement or resetting learned values.
• Exhaust Gas Recirculation – handling procedures related to the EGR system.
• Engine Cylinder Service – diagnostics and servicing of the cylinder system.
• AdBlue – resetting the AdBlue level counter after refilling or replacing the fluid.
• Clutch Matching – learning the engagement point and position of the clutch after replacement or repair.
• Electronic Water Pump – activating the electric water pump for testing or after replacement.
• High Voltage Battery – servicing the high-voltage battery in EV / hybrid vehicles.
• Radar/Camera – learning and calibrating ADAS radars and cameras.
• Cylinder Shutoff Test – testing the shutoff of individual cylinders.
• Speed Limit Assist – setting or removing the maximum speed limit.
• Control Unit Reset – resetting and initializing selected modules after replacement or repair.
• O2S – adapting after replacing the lambda sensor and initializing learned catalyst values.
• NOx Sensor – resetting learned values related to the NOx sensor.
• Seat Belt – resetting belt tensioners and service procedures after the SRS system has been triggered.

Additional functions may be available in the Miscellaneous section. The range depends on the specific vehicle.

AutoVIN – automatic vehicle recognition

The AutoVIN function allows for automatic reading of the VIN in compatible vehicles and speeds up the start of diagnostics.

If AutoVIN does not recognize the vehicle, manual model selection can be used. Lack of automatic identification does not automatically mean lack of compatibility.

CAN FD – support for modern Opel / Vauxhall systems

OP V3.0 supports CAN FD – Controller Area Network Flexible Data-rate, used in newer Opel / Vauxhall vehicles.

This allows the tester to communicate with modern controllers using the faster CAN FD data bus.

Full 10 OBDII / EOBD modes

OP V3.0 supports all 10 standard OBDII/EOBD diagnostic modes for compatible vehicles compliant with OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards:

• Read Codes,
• Erase Codes,
• I/M Readiness,
• Live Data,
• Freeze Frame,
• Vehicle Information,
• O2 Monitor Test,
• On-Board Monitor Test,
• EVAP System Test,
• Pending Codes.

Diagnostic history and reports

• quick access to previously diagnosed vehicles and systems,
• viewing previous scan results,
• saving diagnostic reports,
• sharing reports with clients or colleagues,
• printing data after connecting the tester to a Windows computer via USB,
• Feedback function for reporting diagnostic issues to the manufacturer.

Lifetime free updates

iCarsoft OP V3.0 comes with lifetime free software updates. The manufacturer does not require an annual subscription, renewal fees, or additional unlocking of the device.

Updates are performed via a PC using a TF card reader. Wi-Fi connection is not required.

New updates may expand the supported models, functions, and protocols, as well as improve compatibility.

15 language versions – including Polish

The manufacturer claims support for 15 languages:

• Polish,
• English,
• German,
• French,
• Dutch,
• Spanish,
• Czech,
• Swedish,
• Russian,
• Hungarian,
• Norwegian,
• Portuguese,
• Italian,
• Danish,
• Finnish.

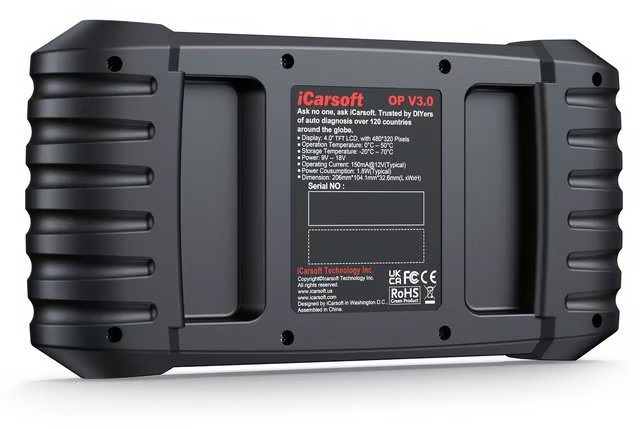

Technical specifications

• Display: color TFT LCD 4.0″
• Resolution: 480 × 320 px
• Control: physical buttons
• Connectivity: USB 2.0 / OBDII
• Power supply: 9–18 V
• USB Type-C: 5 V / 500 mA
• Typical power consumption: 1.8 W
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Humidity: 5–95%, non-condensing

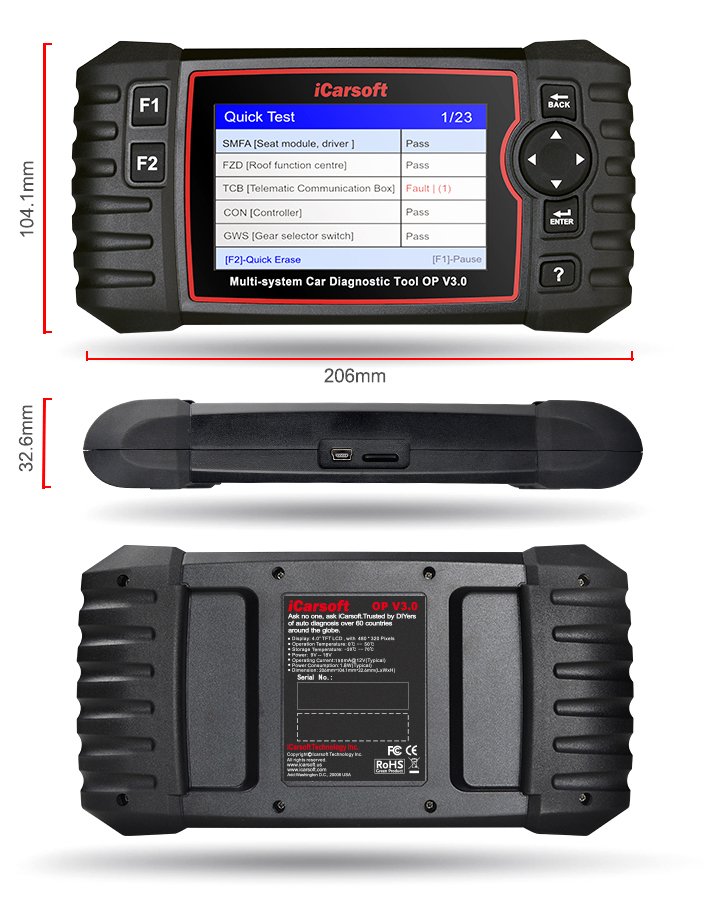

• Dimensions: 206 × 104.1 × 32.6 mm
• Net weight: approximately 350 g

Supported communication protocols

• ISO 9141-2,
• ISO 14230-2,
• ISO 15765,
• K-Line / L-Line,
• Flashing Code,
• SAE J1850 VPW,
• SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN FD,
• SAE J2610,
• GM UART,
• UART Echo Byte Protocol,
• Honda Diag-H Protocol,
• TP2.0,
• TP1.6.

iCarsoft OP V1.0, OP V2.0, OP V3.0, and OP V4.0 – comparison

• OP V1.0 – 3.5″ screen, physical buttons, full system diagnostics, USB updates.
• OP V2.0 – 4″ screen, physical buttons, full diagnostics and 9 service functions, no active tests.
• OP V3.0 – 4″ screen, physical buttons, full active tests, 32 service functions, and CAN FD.
• OP V4.0 – 5″ touchscreen, Wi-Fi, active tests, and the ability to add 2 additional brand groups.

OP V3.0 is the generation that introduces full bi-directional control and significantly expanded service functions while maintaining a compact case and physical buttons.

Who is iCarsoft OP V3.0 intended for?

• for owners of Opel and Vauxhall cars,
• for advanced users servicing their own vehicles,
• for mechanics and diagnosticians,
• for independent workshops specializing in Opel / Vauxhall,
• for dealerships and car trading companies,
• for individuals checking a vehicle before purchase,
• for users needing active tests without purchasing a large workshop tablet.

Basic operation step by step

1. Connect the tester to the vehicle's 16-pin OBDII socket.
2. Turn on the ignition.
3. Use AutoVIN or select the vehicle manually.
4. Start scanning available controllers.
5. Read fault codes and Live Data parameters.
6. Before clearing, save DTC and Freeze Frame.
7. If necessary, perform an active test, adaptation, or service function.
8. After repairs, clear errors and re-scan the vehicle.

Important information regarding compatibility

The range of available diagnostic, service, and active test functions depends on the specific model, year, engine, target market, equipment, and ECU configuration.

Not all 32 service functions or every active test is available in every vehicle. We recommend checking compatibility based on model, year, engine, and VIN before purchase.

Lack of automatic recognition by AutoVIN does not automatically mean lack of compatibility – the vehicle can be selected manually.

Clearing a fault code does not remove the physical cause of the fault. If the problem persists, the error may reappear.

Why choose iCarsoft OP V3.0?

iCarsoft OP V3.0 is an advanced tester for Opel and Vauxhall that combines full diagnostics of all systems with full bi-directional control and 32 service functions.

The device offers AutoVIN, CAN FD, 10 OBDII/EOBD modes, Polish language, diagnostic reports, and lifetime free updates.

This is a very good choice for users or workshops that need significantly greater capabilities than OP V2.0 but prefer a compact tester with physical buttons instead of a larger touchscreen device.
