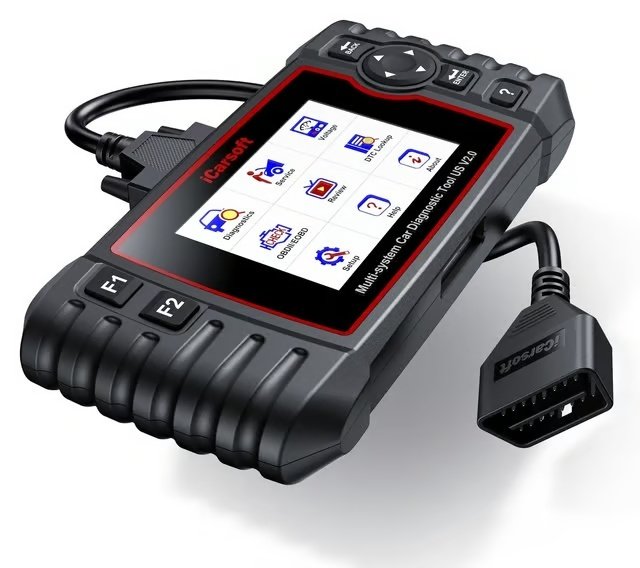

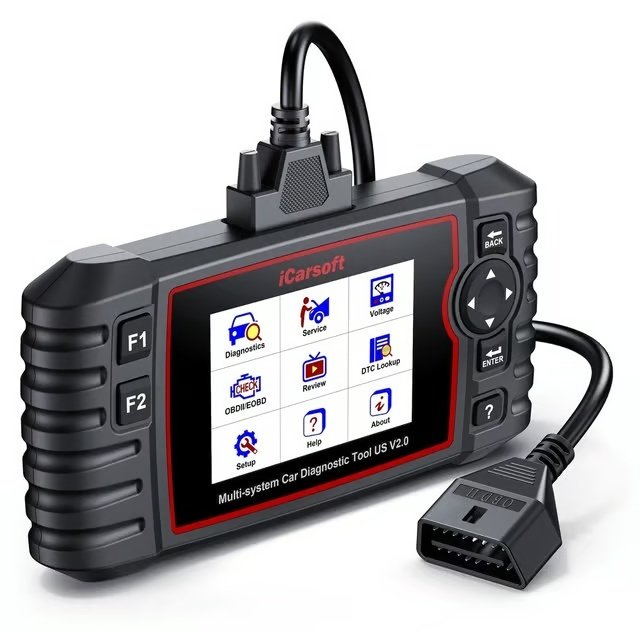

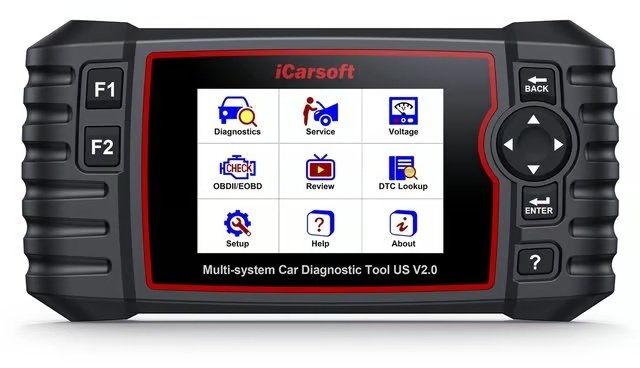

Skaner OBD2 iCarsoft US V2.0 GM Ford Jeep Chrysler

Specialized diagnostics for American cars

iCarsoft US V2.0 is a specialized diagnostic tester designed for American car brands. The manufacturer claims support for vehicles from 1996–2025, depending on the specific brand, model, year, and ECU configuration.

The device provides full system diagnostics, covering not only the engine, transmission, ABS, and SRS but also more advanced electronic modules available in the vehicle.

US V2.0 offers 9 of the most commonly used service functions, AutoVIN, CAN FD support, full 10 OBDII/EOBD modes, diagnostic history, reports, and lifetime free updates without subscription.

Key advantages of iCarsoft US V2.0

• Full diagnostics of all systems
• Support for 6 groups of US brands
• 9 service functions
• AutoVIN
• CAN FD
• Reading and clearing DTC fault codes
• Live Data
• Freeze Frame
• Reading ECU information
• 10 OBDII / EOBD modes
• Diagnostic history
• Saving, sharing, and printing reports
• 4.0″ TFT color screen 480 × 320 px
• Physical navigation buttons
• 15 languages, including Polish
• Update via computer and TF card reader
• Lifetime free updates
• No mandatory subscription

Supported car brands

iCarsoft US V2.0 has dedicated software for 6 groups of brands:

• Chrysler
• Dodge
• Jeep
• Ford – US / EU / AU versions
• G.M / General Motors
• Holden

The manufacturer claims support for compatible vehicles from 1996–2025.

Important: the exact range of functions depends on the brand, model, year, target market, equipment, and ECU configuration.

Full diagnostics of all systems

US V2.0 allows access to all supported ECUs via the standard 16-pin OBDII connector. Besides the four basic systems, the tester can also diagnose more advanced electronic modules.

• engine / ECU,
• automatic transmission,
• ABS / braking systems,
• SRS airbags,
• electronic parking brake EPB,
• steering system,
• air conditioning and HVAC,
• body and comfort modules,
• energy and battery management systems,
• TPMS,
• other controllers available in the specific vehicle.

Diagnostic functions

• Read DTCs – reading fault codes from all available modules,
• Clear DTCs – clearing errors after the cause of the fault has been removed,
• ECU Information – reading controller numbers, software versions, and ECU status,
• Live Data – viewing real-time parameters,
• Freeze Frame – reading data saved at the time of the error,
• automatic scanning of available systems,
• diagnostic history,
• saving, sharing, and printing reports.

9 service functions

iCarsoft US V2.0 has 9 of the most commonly used service procedures:

• Oil Reset – resetting the oil inspection and service interval after an oil change.
• SAS Reset – calibrating the steering angle sensor.
• EPB / Brake-Pad Reset – servicing the electronic parking brake during brake pad replacement.
• Electronic Throttle Control – adapting the throttle after cleaning, resetting, or replacement.
• DPF Regeneration – supporting the DPF filter regeneration procedure in compatible vehicles.
• Injector Coding – coding / adapting injector parameters after replacement.
• ABS Bleeding – bleeding the ABS system and selected service procedures.
• BMS Reset – supporting battery management system, including registering battery replacement in compatible cars.
• TPMS Reset – supporting procedures related to the tire pressure monitoring system.

Note: the availability of each function depends on the specific brand, model, year, and ECU configuration.

AutoVIN – automatic vehicle recognition

The AutoVIN function allows for automatic reading of the VIN and faster start of diagnostics in compatible vehicles.

If AutoVIN does not recognize the car, the manufacturer recommends using manual vehicle selection. The lack of automatic identification does not automatically mean a lack of compatibility.

CAN FD – support for newer GM and Chrysler vehicles

US V2.0 supports CAN FD – Controller Area Network Flexible Data-rate, a modern communication protocol used in new cars.

The manufacturer claims support for CAN FD in G.M and Chrysler models from 2020 that utilize this bus.

Full 10 OBDII / EOBD modes

US V2.0 supports all 10 standard OBDII diagnostic modes for compatible vehicles compliant with OBDII / EOBD / JOBD / KOBD / CAN / CAN FD standards:

• Read Codes,
• Erase Codes,
• I/M Readiness,
• Live Data,
• Freeze Frame,
• Vehicle Information,
• O2 Monitor Test,
• On-Board Monitor Test,
• EVAP System Test,
• Pending Codes.

Diagnostic history and reports

• quick access to previously diagnosed systems,
• viewing previous scan results,
• saving diagnostic reports,
• sharing reports with clients or colleagues,
• printing data after connecting the tester to a Windows computer via USB,
• Feedback function for reporting diagnostic issues to the manufacturer.

Lifetime free updates

iCarsoft US V2.0 has lifetime free software updates. The manufacturer does not require an annual subscription, renewal fees, or additional unlocking of the device.

Updates are performed via a PC using the included TF card reader. Wi-Fi connection is not required.

Updates may expand the database of supported models and protocols and improve compatibility.

15 language versions – including Polish

The manufacturer claims support for 15 languages:

• Polish,
• English,
• German,
• French,
• Dutch,
• Spanish,
• Czech,
• Swedish,
• Russian,
• Hungarian,
• Norwegian,
• Portuguese,
• Italian,
• Danish,
• Finnish.

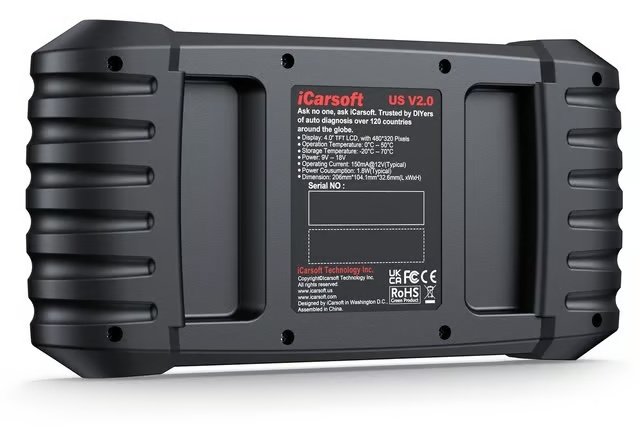

Technical specifications

• Display: color TFT LCD 4.0″
• Resolution: 480 × 320 px
• Control: physical buttons
• Connectivity: USB 2.0 / OBDII
• Power supply: 9–18 V
• USB Type-C: 5 V / 500 mA
• Typical power consumption: 1.8 W
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Humidity: 5–95%, non-condensing
• Dimensions: 206 × 104.1 × 32.6 mm
• Net weight: approximately 350 g

Supported communication protocols

• ISO 9141-2,
• ISO 14230-2,
• ISO 15765,
• K-Line / L-Line,
• Flashing Code,
• SAE J1850 VPW,
• SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN FD,
• SAE J2610,
• GM UART,
• UART Echo Byte Protocol,
• Honda Diag-H Protocol,
• TP2.0,
• TP1.6.

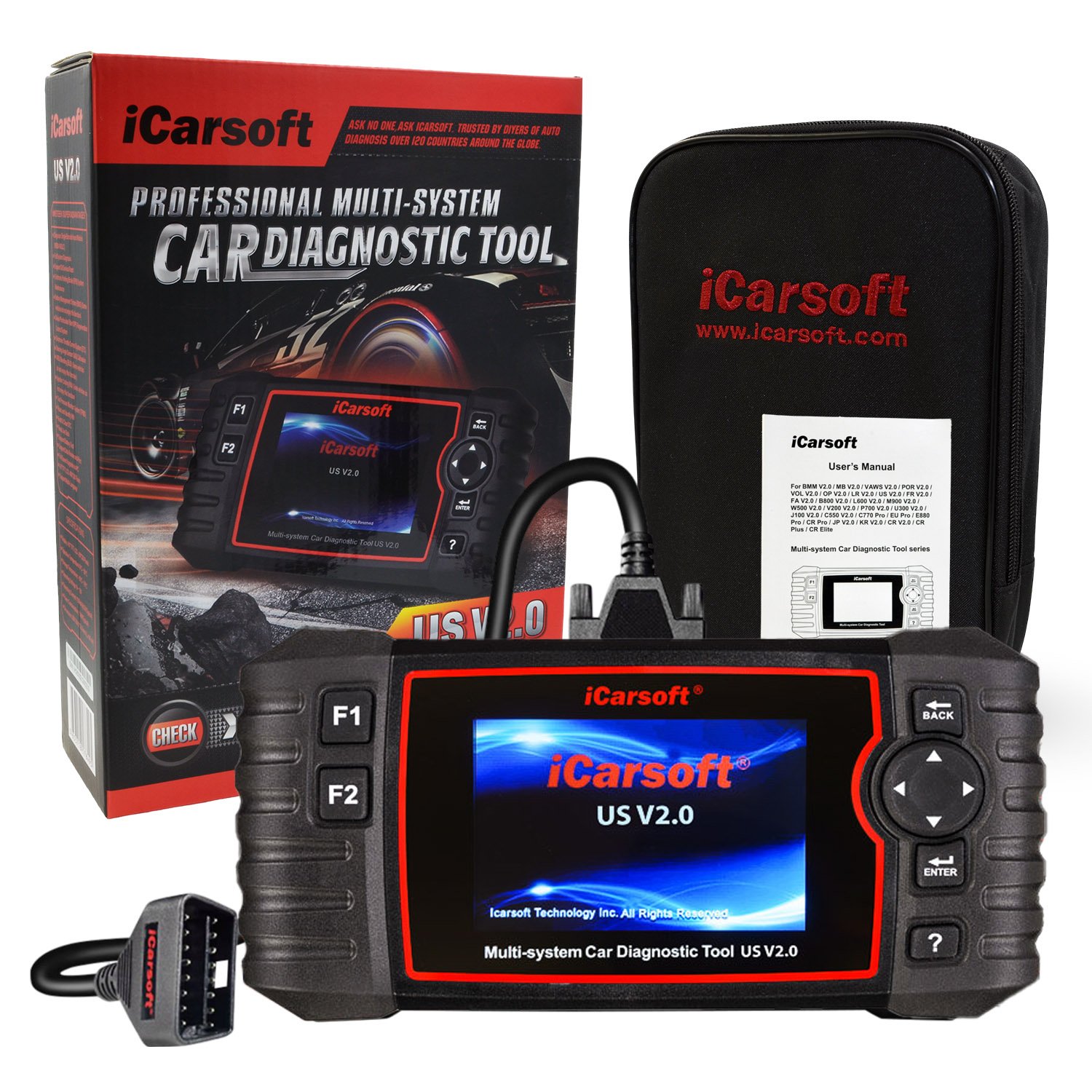

Package contents

• iCarsoft US V2.0 diagnostic tester,
• OBD2 16-pin main cable,
• USB Type-C cable,
• TF card reader,
• transport case,
• multilingual user manual.

Important – US V2.0 does not have active tests

The US V2.0 model does not support bidirectional control / Active Test. It is therefore not intended for directly activating actuators through the ECU.

If active tests and a significantly broader set of advanced service functions are needed, choose iCarsoft US V3.0 or US V4.0.

iCarsoft US V2.0, US V3.0, and US V4.0 – comparison

• US V2.0 – 4″ screen, physical buttons, full diagnostics, 9 service functions, AutoVIN, and CAN FD, no active tests.
• US V3.0 – physical buttons, full diagnostics, bidirectional control / Active Test, and an extended set of service functions.
• US V4.0 – 5″ touchscreen, Wi-Fi, full diagnostics, active tests, and extended service functions.

All three generations support the same 6 groups of US brands, AutoVIN, and lifetime free updates.

Who is iCarsoft US V2.0 intended for?

• for owners of American cars,
• for users of Ford, Chrysler, Dodge, Jeep, GM, and Holden,
• for individuals performing basic car maintenance themselves,
• for mechanics and diagnosticians,
• for independent workshops servicing cars from the US market,
• for car dealerships and trading companies,
• for individuals checking a vehicle before purchase.

Basic operation step by step

1. Connect the tester to the vehicle's standard 16-pin OBDII socket.
2. Turn on the ignition.
3. Use AutoVIN or select the vehicle manually.
4. Start scanning available ECUs.
5. Read fault codes and Live Data parameters.
6. Before clearing, save DTC and Freeze Frame.
7. If necessary, perform the available service function.
8. After repairs, clear the errors and rescan the vehicle.

Important information regarding compatibility

The range of available diagnostic and service functions depends on the specific brand, model, year, target market, equipment, and ECU configuration.

Not every one of the 9 service functions is available in every vehicle. Before purchasing, we recommend checking compatibility based on brand, model, year, engine, and VIN number.

The lack of automatic recognition by AutoVIN does not automatically mean a lack of compatibility – the vehicle can be selected manually.

Clearing a fault code does not remove the physical cause of the fault. If the problem persists, the error may reappear.

Why choose iCarsoft US V2.0?

iCarsoft US V2.0 is a specialized tester for American cars that provides full diagnostics of all systems and 9 key service functions.

The device supports Chrysler, Dodge, Jeep, Ford, G.M, and Holden, and additionally offers AutoVIN, CAN FD, 10 OBDII/EOBD modes, Polish language, diagnostic reports, and lifetime free updates.

This is a practical solution for an owner of a car from the US market or a workshop that needs significantly greater capabilities than a basic OBD2 reader but does not require the active tests available in US V3.0 and US V4.0.
