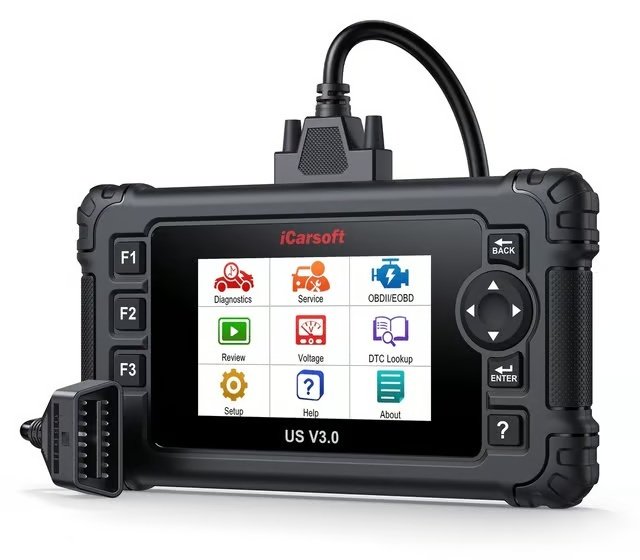

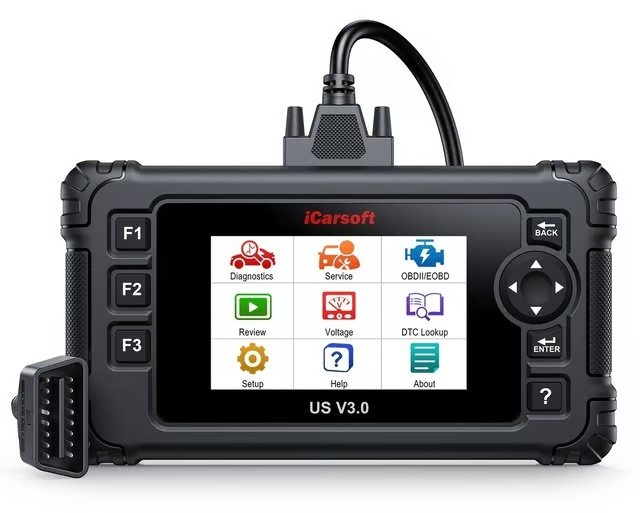

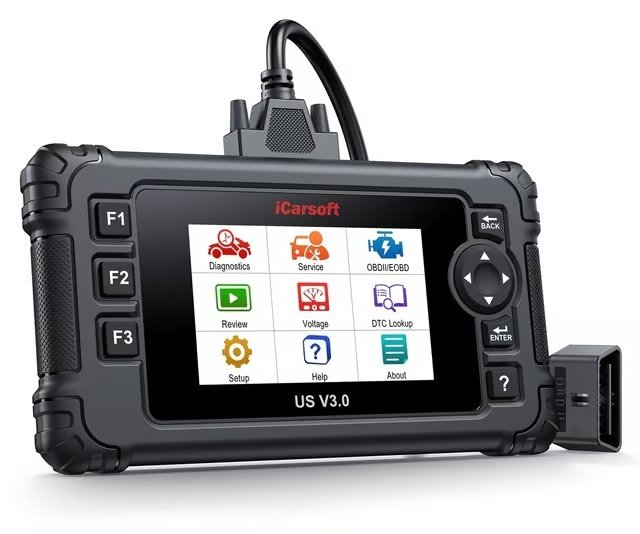

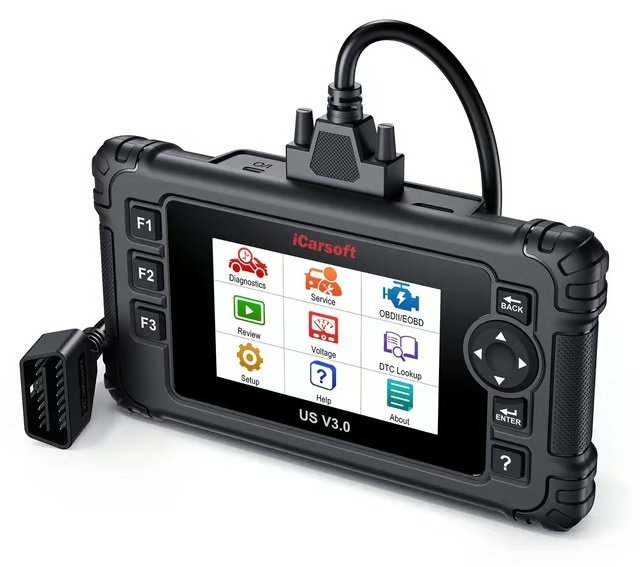

OBD2 scanner iCarsoft US V3.0 GM Ford Jeep Chrysler

Advanced diagnostics for American cars

iCarsoft US V3.0 is a specialized diagnostic tester designed for American car brands. The device combines full diagnostics of all systems with advanced bi-directional control, ECU coding functions for selected models, and an extensive package of service functions.

The tester allows diagnostics of the engine, transmission, ABS, SRS, and many other electronic modules available in the vehicle through the standard 16-pin OBDII socket.

The US V3.0 model offers 39 service functions, AutoVIN, CAN FD, DoIP support, 15 languages, diagnostic reports, and lifetime free updates without subscription.

Key advantages of iCarsoft US V3.0

• Full diagnostics of all systems
• Bi-directional control / Active Test
• ECU coding for selected Ford, Chrysler, Jeep, and Dodge models
• 39 service functions – 9 basic + 30 advanced
• AutoVIN
• CAN FD
• DoIP Ready
• Reading and clearing DTC fault codes
• Live Data
• Freeze Frame
• Reading ECU information
• 10 OBDII / EOBD modes
• Diagnostic history and reports

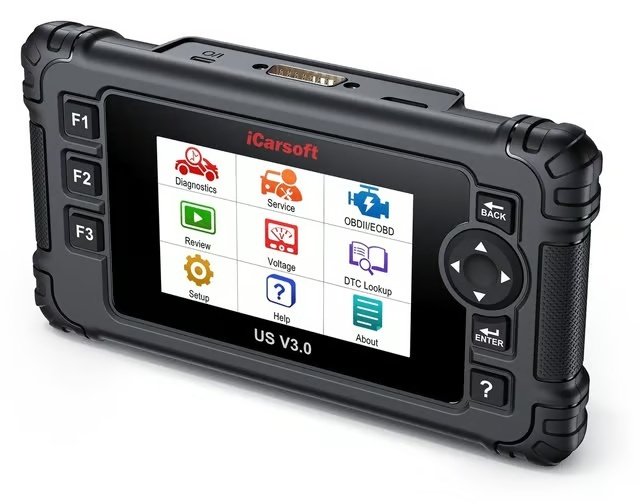

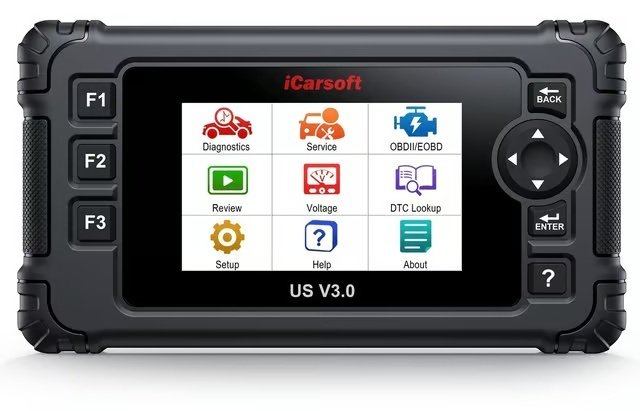

• 4.0″ TFT color screen 480 × 320 px
• Physical navigation buttons
• 15 languages, including Polish
• Update via computer and TF card reader
• Lifetime free updates
• No mandatory subscription

Specialized service for American cars

The US V3.0 has been developed specifically for servicing American car brands. The manufacturer provides coverage for 6 groups of US brands with full system diagnostics.

For ECU coding, the manufacturer currently confirms support for selected models from the groups:

• Ford
• Chrysler
• Jeep
• Dodge / RAM

Important: The scope of diagnostics, coding, active tests, and service functions depends on the brand, model, year, and ECU configuration.

Full diagnostics of all systems

The US V3.0 provides access to all supported modules through the standard 16-pin OBDII connector. In addition to the four basic systems – engine, ABS, SRS, and transmission – the tester can diagnose more complex electronic modules.

• engine / ECU,
• automatic transmission,
• ABS / braking system,
• SRS airbags,
• electronic parking brake EPB,
• steering system,
• air conditioning and HVAC,
• body and comfort modules,
• energy management systems,
• TPMS,
• other controllers available in the specific vehicle.

Diagnostic functions

• Read DTCs – reading fault codes from all available modules,
• Clear DTCs – clearing codes after the fault cause has been resolved,
• ECU Information – reading controller numbers, software versions, and ECU status,
• Live Data – viewing current parameters and sensor data,
• Freeze Frame – reading data saved at the time of the error occurrence,
• automatic scanning of available controllers,
• active tests / Bi-Directional Control,
• ECU coding in supported vehicles,
• diagnostic history,
• saving, sharing, and printing reports.

Advanced bi-directional control / Active Test

The iCarsoft US V3.0 allows sending commands directly to the vehicle's controllers and observing the response of components in real-time. This helps to quickly determine whether the problem lies with an actuator, electrical installation, or ECU control.

Depending on the vehicle, available functions may include:

• activating the ABS pump,
• controlling window lifts,
• activating the fuel pump,
• opening the throttle,
• testing actuators in other modules.

The scope of active tests depends on the specific brand, model, year, and controller.

ECU coding – Ford, Chrysler, Jeep, and Dodge

The US V3.0 has ECU Coding functions for selected Ford, Chrysler, Jeep, and Dodge models. This function allows making selected configuration changes after component replacement and personalizing vehicle settings.

For Ford, the manufacturer lists, among others:

• tire size correction,
• axle ratio configuration,
• configuration update after changing fuel/water tank capacity,
• Hill Start Assist configuration and selected brake system settings,
• turning on/off selected warnings and sound signals,
• lighting settings and headlight delay,
• selected remote start and air conditioning settings,
• instrument cluster display configuration.

For selected Chrysler / Jeep / Dodge, settings related to comfort functions, alarms, light and sound signals, and instrument cluster messages are available.

Example models with confirmed ECU coding

The manufacturer provides an example of confirmed coding support for selected models:

• Chrysler: 300 (2014), 200 (2015–2017),
• Jeep: Grand Cherokee (2014), Cherokee (2014–2017), Compass (2017 – selected global variants),
• Dodge / RAM: Journey (2014–2019), Durango (2014), Charger (2014), Dart (2012–2016), Viper (2014–2019), selected RAM Heavy Duty from 2014.

Note: The manufacturer emphasizes that the ECU coding function is currently available only for selected models. The scope is expected to be expanded through updates.

39 service functions

The manufacturer declares a total of 39 service functions in the US V3.0:

• 9 most commonly used service functions for daily maintenance,
• 30 advanced service functions designed for more complex repairs.

The range of functions varies depending on the brand, model, year, and controller configuration.

9 basic service functions

• Oil Service Reset – reset of oil inspection and service interval.
• SAS Reset – calibration of the steering angle sensor.
• EPB / Brake-Pad Reset – handling the electric parking brake during pad replacement.
• Electronic Throttle Control – throttle adaptation.
• DPF Regeneration – handling DPF filter regeneration in compatible vehicles.
• Injector Coding – coding / adaptation of injectors.
• ABS Bleeding – bleeding the ABS system.
• BMS Reset – handling the battery management system.
• TPMS Reset – handling tire pressure monitoring system procedures.

The manufacturer additionally declares 30 advanced functions. Their availability depends on the specific vehicle.

CAN FD and DoIP – support for modern vehicle architectures

The US V3.0 supports CAN FD and is prepared for DoIP communication.

The manufacturer confirms CAN FD support in models G.M and Chrysler from 2020. CAN FD provides greater data throughput than classic CAN, while DoIP enables diagnostic communication over fast Ethernet networks used in modern vehicles.

AutoVIN – automatic vehicle identification

The AutoVIN function automatically reads the VIN number in compatible vehicles and speeds up the start of diagnostics.

If AutoVIN does not recognize the car, manual vehicle selection can be used. Lack of automatic recognition does not automatically mean lack of compatibility.

Full 10 OBDII / EOBD modes

The US V3.0 supports all 10 standard diagnostic modes for compatible vehicles compliant with OBDII / EOBD / JOBD / KOBD / CAN / CAN FD:

• Read Codes,
• Erase Codes,
• I/M Readiness,
• Live Data,
• Freeze Frame,
• Vehicle Information,
• O2 Monitor Test,
• On-Board Monitor Test,
• EVAP System Test,
• Pending Codes.

Diagnostic history and reports

• quick access to previously diagnosed systems,
• saving diagnostic history,
• saving and sharing reports,
• printing data when the tester is connected to a Windows computer via USB,
• Feedback function for reporting issues to the manufacturer.

Lifetime free updates

The iCarsoft US V3.0 has lifetime free software updates. No annual fees, license renewals, or subscriptions are required.

Updates are performed via a PC using the included TF card reader. The US V3.0 model does not require Wi-Fi for updates.

New updates may expand the vehicle database, functions, and supported protocols.

15 language versions – including Polish

The US V3.0 supports 15 languages:

• Polish,
• English,
• German,
• French,
• Dutch,
• Spanish,
• Czech,
• Swedish,
• Russian,
• Hungarian,
• Norwegian,
• Portuguese,
• Italian,
• Danish,
• Finnish.

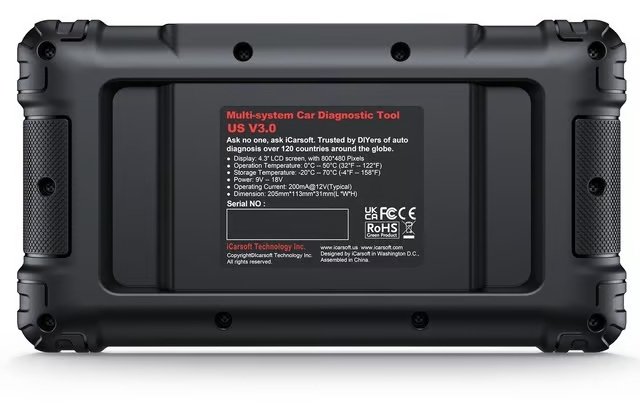

Technical specifications

• Display: color TFT LCD 4.0″
• Resolution: 480 × 320 px
• Control: physical buttons
• Connectivity: USB 2.0 / OBDII
• Power supply: 9–18 V
• Type-C input: 5 V / 500 mA
• Typical power consumption: 1.8 W
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Operating humidity: 5–95%, non-condensing
• Dimensions: 206 × 104.1 × 32.6 mm
• Net weight: approximately 350 g

Supported communication protocols

• ISO 9141-2,
• ISO 14230-2,
• ISO 15765,
• K-Line / L-Line,
• Flashing Code,
• SAE J1850 VPW,
• SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN FD,
• SAE J2610,
• GM UART,
• UART Echo Byte Protocol,
• Honda Diag-H Protocol,
• TP2.0,
• TP1.6.

iCarsoft US V2.0, US V3.0, and US V4.0 – comparison

• US V2.0 – 4″ screen, physical buttons, full diagnostics, 9 basic service functions, AutoVIN and CAN FD, no active tests.
• US V3.0 – 4″ screen, physical buttons, full diagnostics, bi-directional control, ECU coding for selected models, and an extensive package of service functions.
• US V4.0 – 5″ touchscreen, Wi-Fi, full diagnostics, active tests, and an expanded package of functions.

US V3.0 is the choice for users who want to maintain a compact design with physical buttons but need significantly greater capabilities than the US V2.0.

Who is iCarsoft US V3.0 intended for?

• for owners of American cars,
• for advanced users servicing their vehicles independently,
• for mechanics and diagnosticians,
• for independent workshops servicing cars from the US market,
• for car dealerships and trading companies,
• for users needing active tests and selected ECU coding functions.

Basic operation step by step

1. Connect the tester to the vehicle's standard 16-pin OBDII socket.
2. Turn on the ignition.
3. Use AutoVIN or select the vehicle manually.
4. Start scanning available controllers.
5. Read fault codes and Live Data parameters.
6. Before clearing errors, save DTC and Freeze Frame.
7. If necessary, perform an active test, service function, or supported coding procedure.
8. After repairs, clear the errors and rescan the vehicle.

Important information regarding compatibility

The range of available diagnostic functions, active tests, service functions, and ECU coding depends on the specific brand, model, year of production, and controller configuration.

Not every one of the 39 service functions or every coding function is available in every vehicle. ECU coding is currently confirmed only for selected Ford, Chrysler, Jeep, and Dodge models.

Lack of automatic recognition by AutoVIN does not automatically mean lack of compatibility – the vehicle can be selected manually.

Clearing a fault code does not remove the physical cause of the fault. If the problem persists, the code may reappear.

Why choose iCarsoft US V3.0?

iCarsoft US V3.0 is an advanced tester for American cars that combines full diagnostics of all systems with full bi-directional control, 39 service functions, and selected ECU coding capabilities.

The device offers AutoVIN, CAN FD, DoIP, 10 OBDII/EOBD modes, Polish language, diagnostic reports, and lifetime free updates.

This solution is for users or workshops that need significantly greater capabilities than a standard OBD2 reader and want to perform not only fault code reading but also actuator tests and selected configuration operations.
