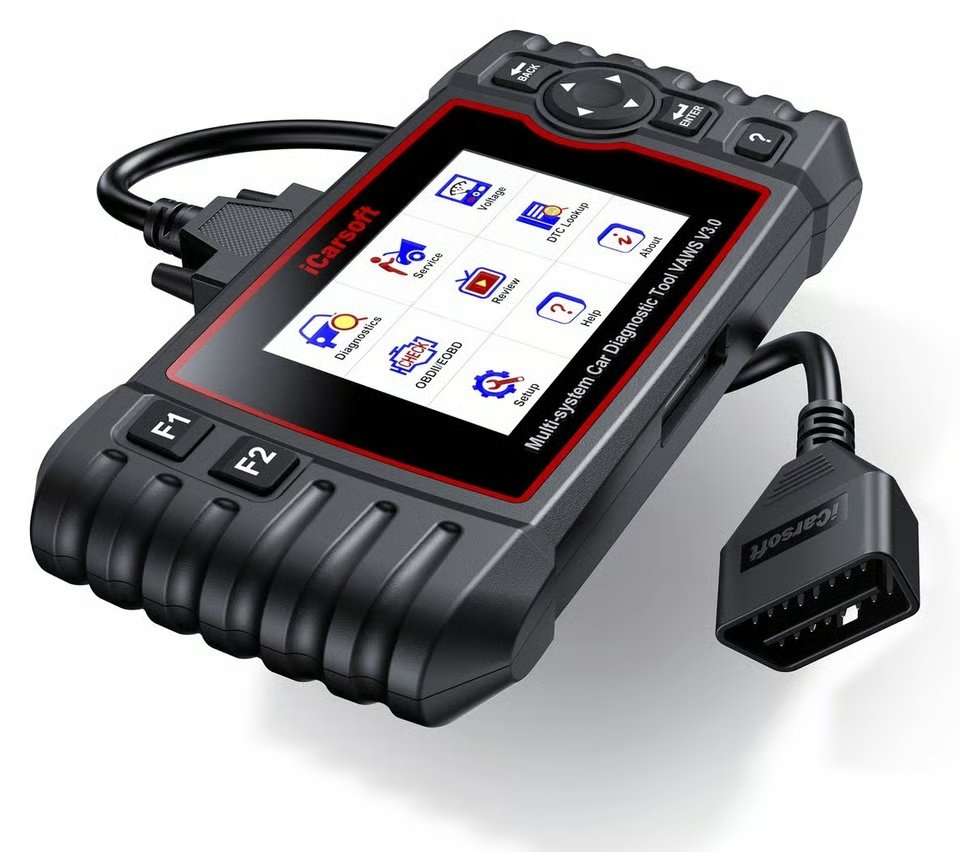

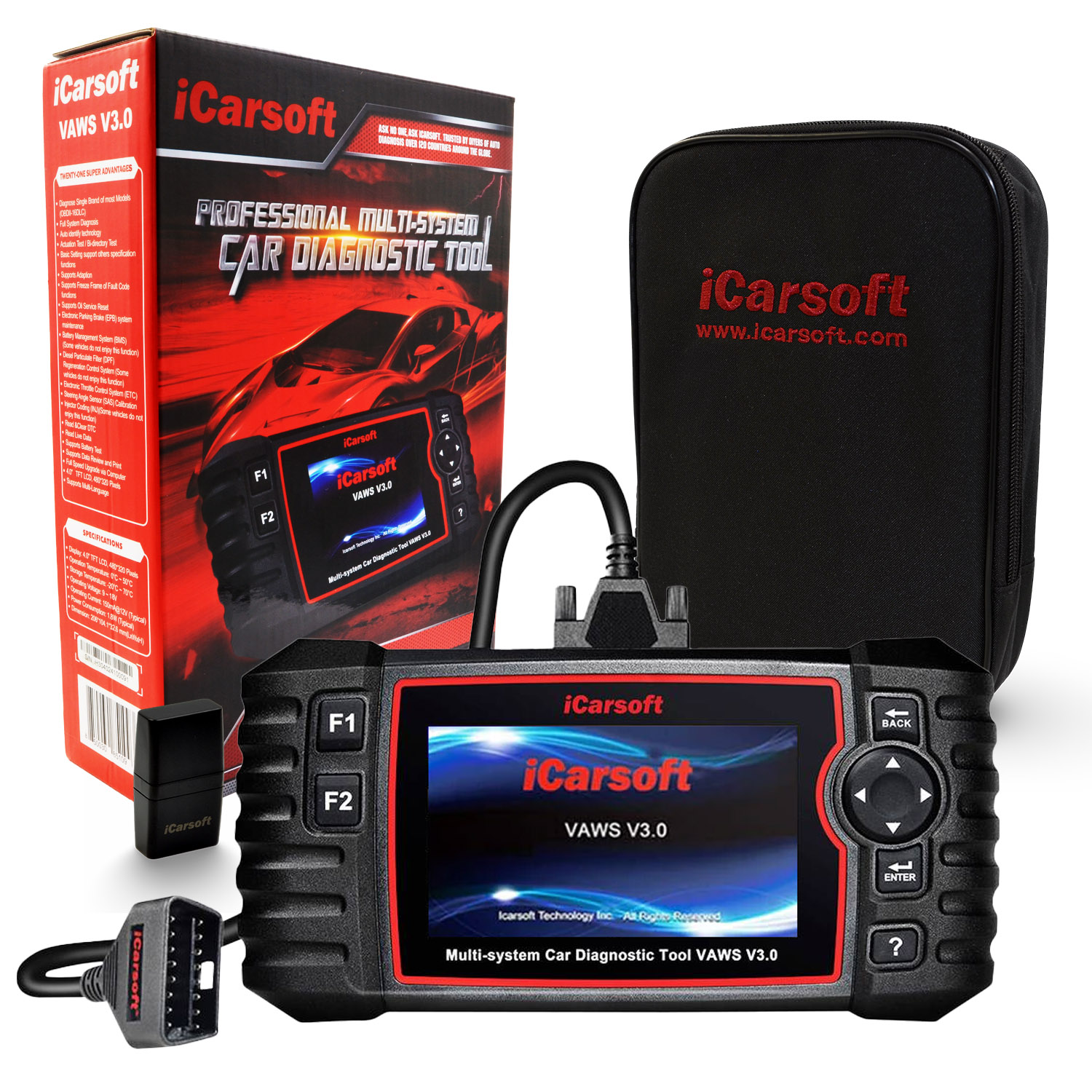

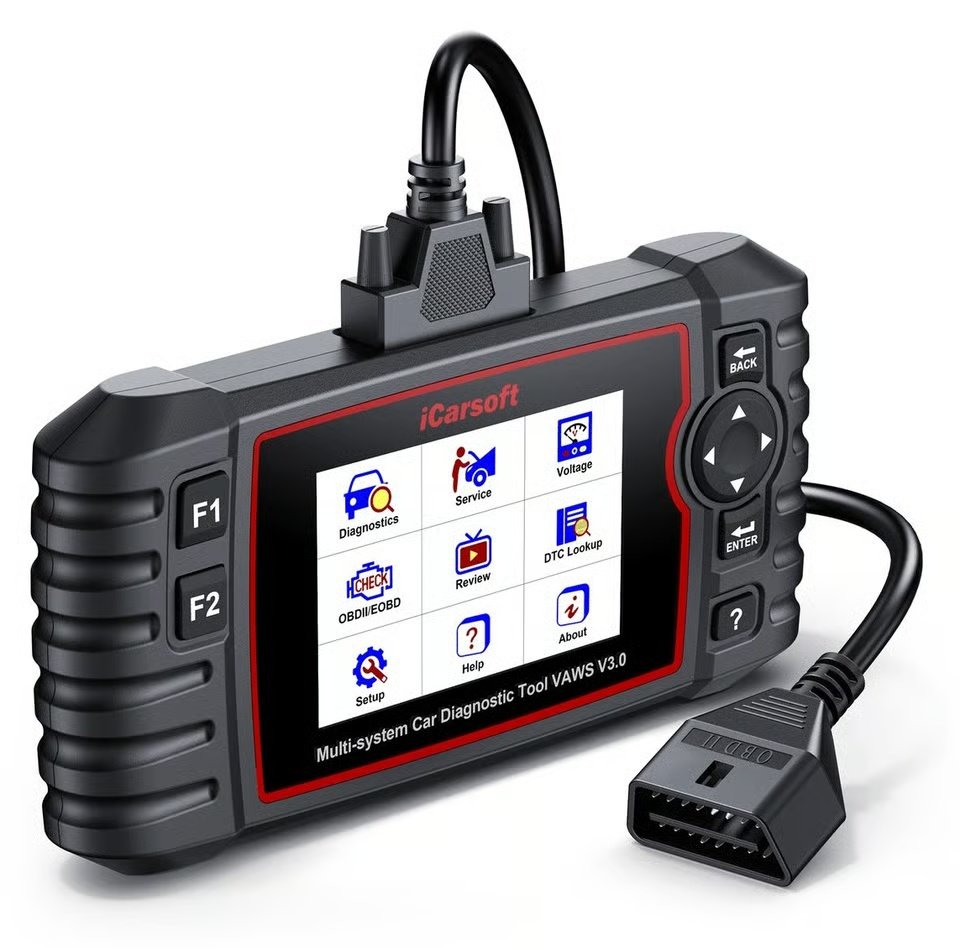

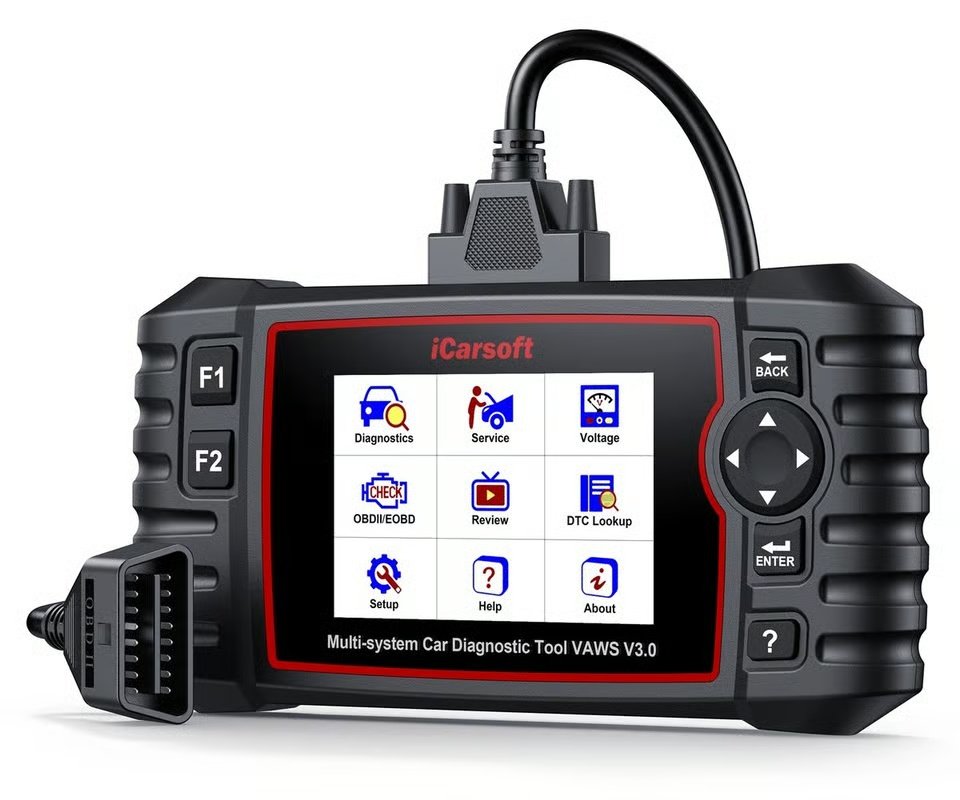

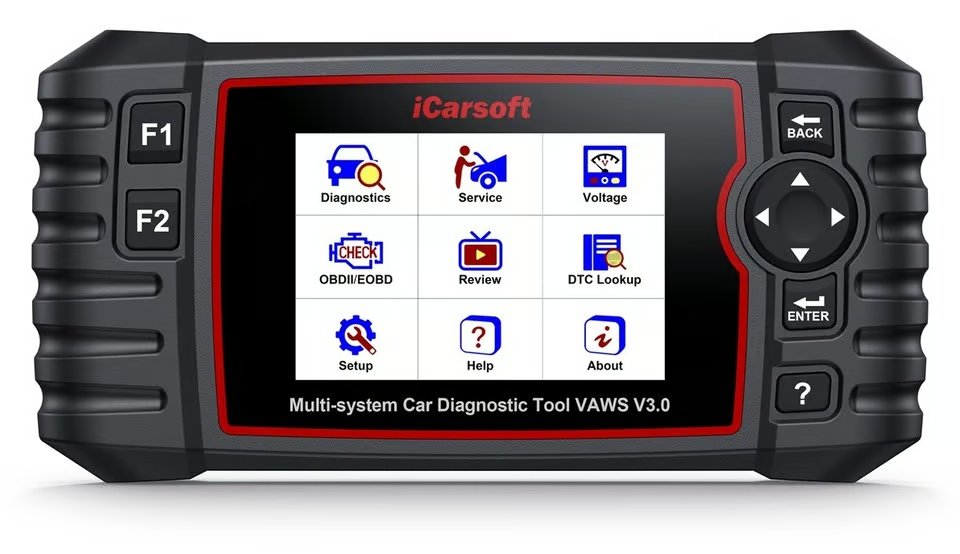

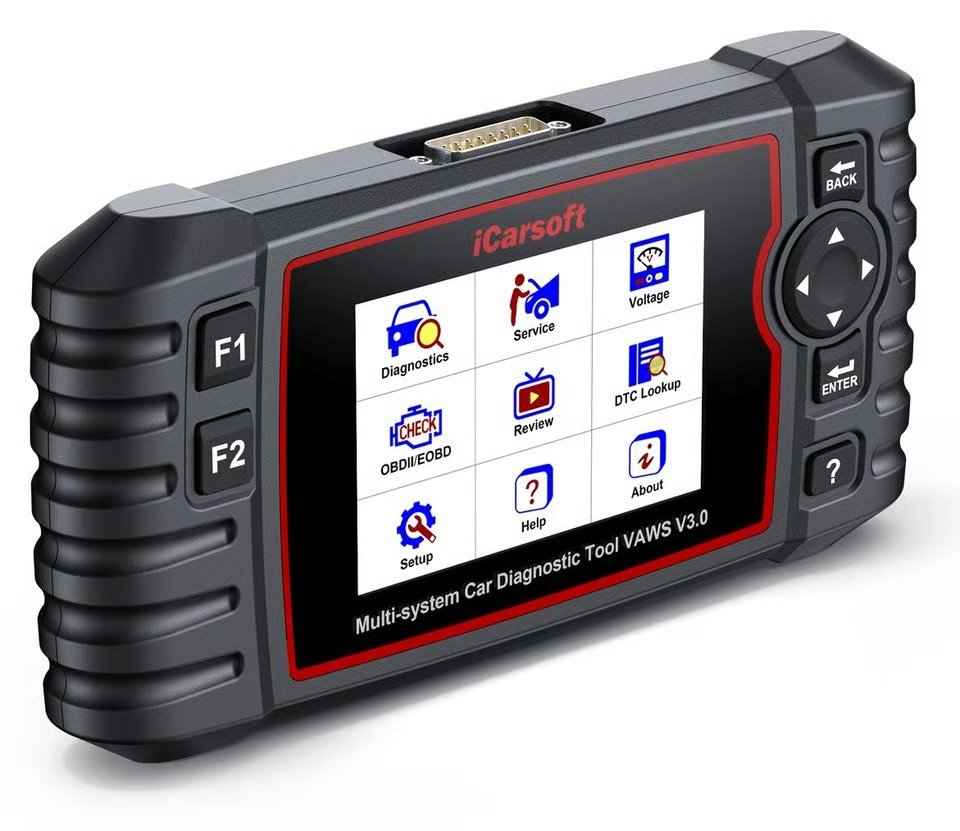

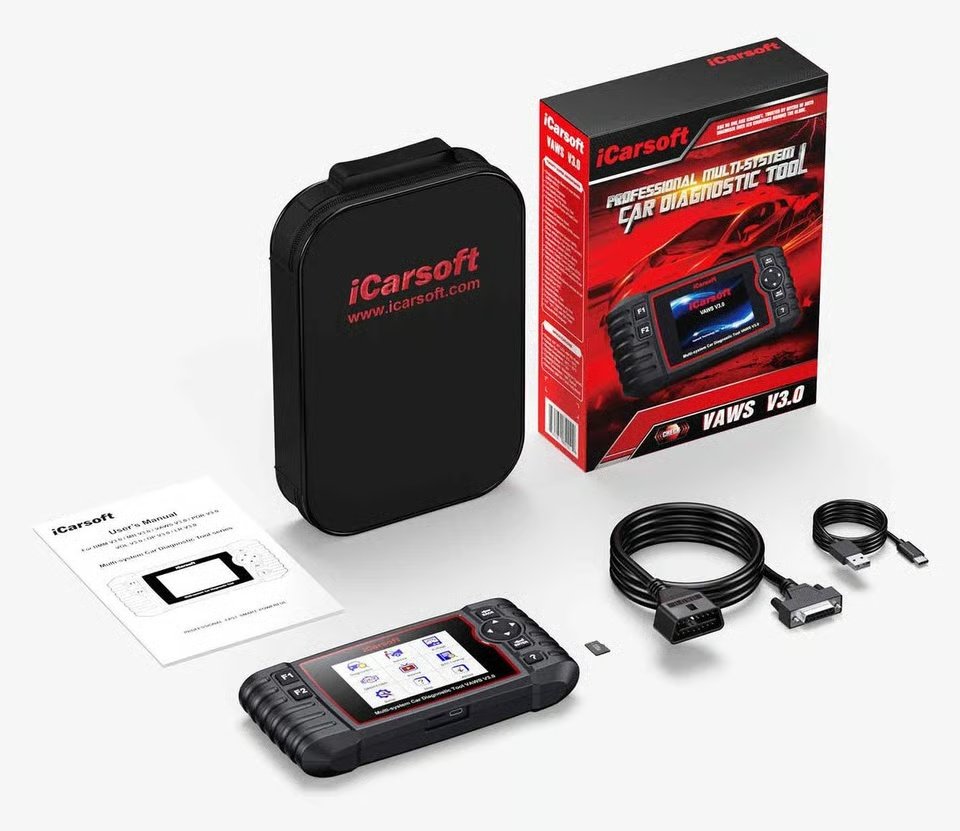

OBD2 scanner iCarsoft VAWS 3.0 VAG

Advanced diagnostics for the VAG group

iCarsoft VAWS V3.0 is an advanced diagnostic tester designed for vehicles of the VAG group and related brands. The manufacturer claims compatibility with supported models from 1996–2025.

The device provides full diagnostics of all available systems, bi-directional control, ECU coding for major VAG models from 2010, OE-Level functions, and 41 service functions.

VAWS V3.0 features a 4-inch screen, physical buttons, AutoVIN, CAN-FD, diagnostic history, reports, and lifetime free updates without subscription.

Key advantages of iCarsoft VAWS V3.0

• Full diagnostics of all systems
• Full bi-directional control / Active Test
• ECU coding for major VAG models from 2010
• 41 service functions – 9 basic + 32 advanced
• OE-Level functions: Basic Settings, Adaptation, Coding / Code II, Security Login
• AutoVIN
• CAN-FD
• Reading and clearing DTC fault codes
• Live Data
• Freeze Frame
• Reading ECU information
• 10 OBDII / EOBD modes
• Diagnostic history and reports
• 4.0″ TFT color screen 480 × 320 px
• Physical navigation buttons
• 15 languages, including Polish
• Updates via computer and TF card reader
• Lifetime free updates
• No mandatory subscription

Supported brands

iCarsoft VAWS V3.0 supports vehicles from the VAG group and related brands:

• Audi
• Bentley
• Bugatti
• Lamborghini
• SEAT
• Skoda
• Volkswagen
• Volkswagen Commercial Vehicles
• Volkswagen LT3
• MAN Light-Duty

The manufacturer claims full system diagnostics and service functions for compatible models from 1996–2025.

Important: the exact range of functions depends on the brand, model, year of manufacture, target market, equipment, and ECU configuration.

Full diagnostics of all systems

VAWS V3.0 diagnoses not only the four basic systems – engine, ABS, SRS, and transmission – but also more complex electronic modules available in the specific vehicle.

• engine / ECU,
• automatic transmission,
• ABS / ESP and braking systems,
• SRS airbags,
• electronic parking brake EPB,
• steering system,
• air conditioning and HVAC,
• body and comfort modules,
• lighting systems,
• energy and battery management systems,
• TPMS,
• ADAS systems in compatible vehicles,
• other controllers available in the specific vehicle.

Diagnostic functions

• Read DTCs – reading fault codes from all available modules,
• Clear DTCs – clearing errors after the cause of the fault has been removed,
• ECU Information – identification and reading of controller information,
• Live Data – viewing real-time parameters,
• Freeze Frame – reading data saved at the time of the fault occurrence,
• automatic scanning of available systems,
• active tests / Bi-Directional Control,
• ECU coding,
• adaptations and basic settings,
• diagnostic history,
• saving, sharing, and printing reports.

Advanced ECU coding

VAWS V3.0 has a dedicated Coding menu for major VAG models from 2010. This function allows changing and saving selected configuration data of the controllers.

• ECU coding according to body type, equipment variant, LHD/RHD steering position, and fuel type,
• saving the original vehicle configuration to the newly replaced controller,
• updating the list of installed ECU modules,
• changing selected regional settings,
• changing DRL logic,
• personalizing the automatic central locking,
• selected hidden functions and vehicle personalization.

Note: the range of coding depends on the specific vehicle and controller.

Full bi-directional control / Active Test

VAWS V3.0 allows sending commands directly to the vehicle's controllers and observing the response of actuators in real-time.

The manufacturer claims over 22 active tests depending on the vehicle, including:

• activating the ABS pump,
• controlling window lifters,
• activating the fuel pump,
• controlling wiper and washer motors,
• controlling the EGR valve,
• controlling individual injectors,
• activating radiator fans,
• controlling transmission solenoids.

The range of active tests depends on the specific model, year of manufacture, and ECU configuration.

OE-Level functions

VAWS V3.0 offers diagnostic functions similar in scope to manufacturer service tools:

• Basic Settings – resetting factory values and basic settings of controllers, components, and sensors,
• Adaptation – adaptations, learning, and calibrations of controllers and modification of selected parameters,
• Coding / Code II – coding controllers and saving vehicle configuration data,
• Security Login – logging into selected secured functions of controllers.

41 service functions

iCarsoft VAWS V3.0 offers a total of 41 service functions:

• 9 most commonly used functions for daily maintenance,
• 32 advanced service functions for more complex repairs.

The availability of functions depends on the specific model, year of manufacture, and ECU configuration.

9 most commonly used service functions

• Oil Reset – resetting the oil life system, service light, mileage, and interval after an oil change.
• Electronic Throttle Control – re-adapting throttle parameters after a reset or replacement.
• EPB / Brake-Pad Reset – retracting the electric parking brake calipers and resetting after pad replacement.
• SAS Reset – calibrating the steering angle sensor.
• DPF Regeneration – DPF regeneration and selected initialization and re-learning procedures.
• Injector Coding – re-learning control parameters after injector replacement.
• ABS Bleeding – bleeding the system and selected procedures after ABS replacement.
• Air Suspension Service – calibration, height adjustment, reset, and servicing of air suspension.
• BMS – assessing the state of charge, monitoring standby current, registering battery replacement, and activating sleep mode.

32 advanced service functions

• TPMS Reset
• Air Conditioner Service
• Head Lamp Service
• Body Stability Control Service
• Engine Control Service
• Transmission Control Service
• Seat Service
• Fuel Pump Service
• Air-Bag Reset
• Immobilizer Service – for vehicles with a basic immobilizer system
• Engine Idle Service
• Turbocharger
• Exhaust Gas Recirculation
• Door Service
• AdBlue
• Crankshaft Learning
• Clutch Matching
• Head-Up Display
• High Voltage Battery
• Cruise Control System
• Vehicle Language Setting
• NOx Sensor
• Stop And Start
• Radar / Camera
• Vehicle Setup
• Cylinder Shutoff Test
• Cylinder Misfire Check
• Speed Limit Assist
• Control Unit Reset
• O2S / Oxygen Sensor
• Seat Belt
• Gas Particulate Filter / GPF

Additional functions may be available in the Miscellaneous section. The range depends on the specific vehicle.

CAN-FD – support for modern VAG platforms

VAWS V3.0 supports CAN-FD – Controller Area Network Flexible Data-rate, used in newer vehicles of the VAG group.

The manufacturer claims CAN-FD support for Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, VW, VW Commercial Vehicles, VW LT3, and MAN Light-Duty.

AutoVIN – automatic vehicle identification

The AutoVIN function automatically reads the VIN number in a compatible vehicle and speeds up the start of diagnostics.

If AutoVIN does not recognize the vehicle, manual selection of the model can be used. Lack of automatic recognition does not automatically mean lack of compatibility.

Full 10 OBDII / EOBD modes

VAWS V3.0 supports all 10 standard OBDII diagnostic modes for compatible vehicles compliant with OBDII / EOBD / JOBD / KOBD / CAN / CAN-FD:

• Read Codes,
• Erase Codes,
• I/M Readiness,
• Live Data,
• Freeze Frame,
• Vehicle Information,
• O2 Monitor Test,
• On-Board Monitor Test,
• EVAP System Test,
• Pending Codes.

Diagnostic history and reports

• quick access to previously diagnosed systems,
• viewing previous scan results,
• saving full diagnostic reports,
• sharing reports with clients or colleagues,
• printing data after connecting the tester to a Windows computer via USB,
• Feedback function for reporting technical issues to the manufacturer.

Lifetime free updates

iCarsoft VAWS V3.0 comes with lifetime free software updates. The manufacturer does not require an annual subscription, renewal fees, or additional unlocking of the device.

Updates are performed via PC using the included TF card reader. Wi-Fi connection is not required.

New updates may expand the vehicle database, functions, and supported protocols.

15 language versions – including Polish

VAWS V3.0 supports 15 languages:

• Polish,
• English,
• German,
• French,
• Dutch,
• Spanish,
• Czech,
• Swedish,
• Russian,
• Hungarian,
• Norwegian,
• Portuguese,
• Italian,
• Danish,
• Finnish.

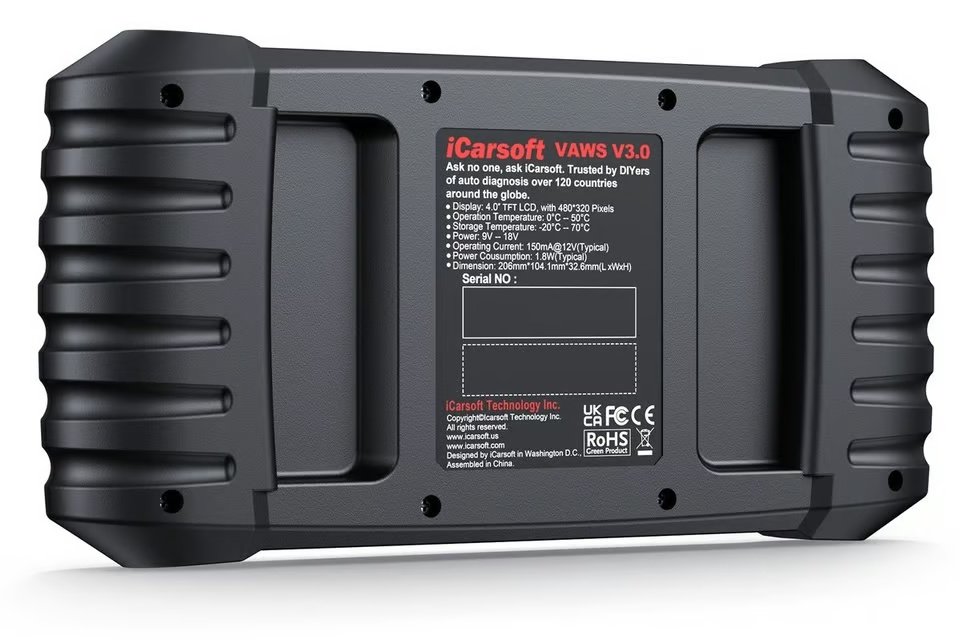

Technical specifications

• Display: color TFT LCD 4.0″
• Resolution: 480 × 320 px
• Operation: physical buttons
• Connectivity: USB 2.0 / OBDII
• Power supply: 9–18 V
• Type-C input: 5 V / 500 mA
• Typical power consumption: 1.8 W
• Operating temperature: 0–50°C
• Storage temperature: –20–70°C
• Operating humidity: 5–95%, non-condensing

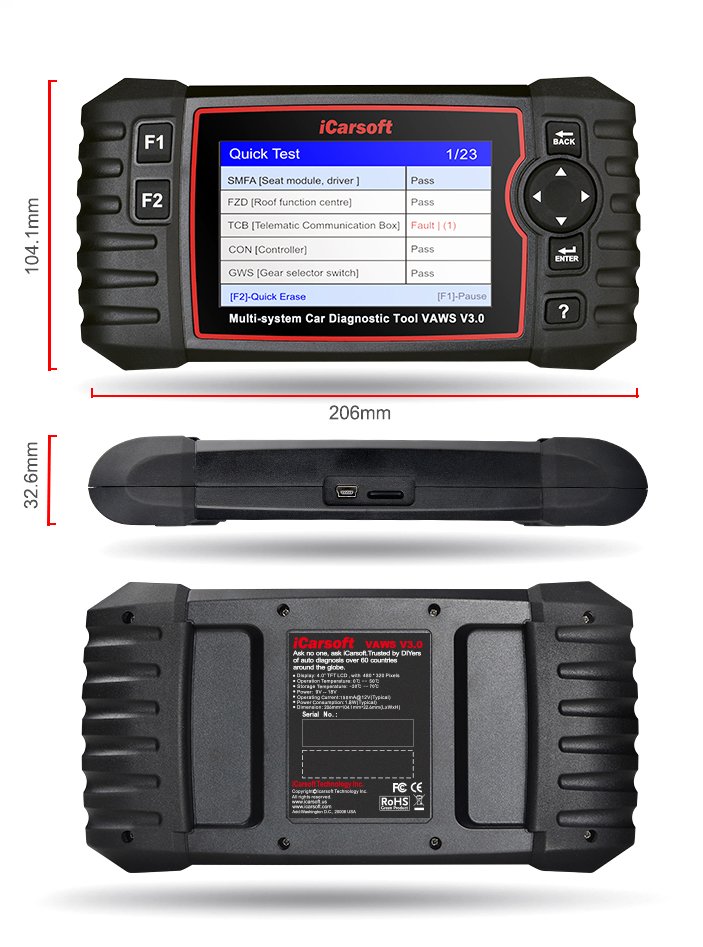

• Dimensions: 206 × 104.1 × 32.6 mm
• Net weight: approximately 350 g

Supported communication protocols

• ISO 9141-2,
• ISO 14230-2,
• ISO 15765,
• K-Line / L-Line,
• Flashing Code,
• SAE J1850 VPW,
• SAE J1850 PWM,
• ISO 11898 – High-Speed, Medium-Speed, Low-Speed, and Single-Wire CAN,
• CAN-FD,
• SAE J2610,
• GM UART,
• UART Echo Byte Protocol,
• Honda Diag-H Protocol,
• TP2.0,
• TP1.6.

iCarsoft VAWS V1.0, VAWS V2.0, VAWS V3.0, and VAWS V4.0 – comparison

• VAWS V1.0 – 3.5″ screen, physical buttons, full system diagnostics, and USB updates.
• VAWS V2.0 – 4″ screen, physical buttons, full diagnostics, and basic service functions, without active tests.
• VAWS V3.0 – 4″ screen, physical buttons, full active tests, ECU coding, OE-Level functions, and 41 service functions.
• VAWS V4.0 – 5″ touchscreen, Wi-Fi, active tests, and the ability to add 2 additional brand groups.

VAWS V3.0 is the generation that adds full bi-directional control and significantly expanded service function range while maintaining a compact housing with physical buttons.

Who is iCarsoft VAWS V3.0 intended for?

• for owners of VAG group cars,
• for users of Audi, Volkswagen, Skoda, SEAT, and related brands,
• for advanced users servicing their vehicles independently,
• for mechanics and diagnosticians,
• for independent workshops specializing in the VAG group,
• for dealerships and companies trading in cars,
• for users needing active tests, coding, and ECU adaptations.

Basic step-by-step operation

1. Connect the tester to the vehicle's standard 16-pin OBDII socket.
2. Turn on the ignition.
3. Use AutoVIN or select the vehicle manually.
4. Start scanning available controllers.
5. Read fault codes and Live Data parameters.
6. Before clearing, save DTC and Freeze Frame.
7. If necessary, perform an active test, service function, adaptation, or coding.
8. After repairs, clear errors and re-scan the vehicle.

Important information regarding compatibility

The range of available diagnostic functions, active tests, ECU coding, adaptations, and service functions depends on the brand, model, year of manufacture, and controller configuration.

Not every one of the 41 service functions or every coding function is available in every vehicle. The manufacturer claims ECU coding for major VAG models from 2010.

Lack of automatic recognition by AutoVIN does not automatically mean lack of compatibility – the vehicle can be selected manually.

Clearing a fault code does not remove the physical cause of the fault. If the problem persists, the code may reappear.

Why choose iCarsoft VAWS V3.0?

iCarsoft VAWS V3.0 is an advanced tester for the VAG group that combines full diagnostics of all systems with bi-directional control, ECU coding, OE-Level functions, and 41 service functions.

The device supports Audi, Bentley, Bugatti, Lamborghini, SEAT, Skoda, Volkswagen, VW Commercial Vehicles, VW LT3, and MAN Light-Duty, and additionally offers AutoVIN, CAN-FD, 10 OBDII/EOBD modes, Polish language, diagnostic reports, and lifetime free updates.

This is a very good choice for an owner of a VAG group car or an independent workshop that needs greater capabilities than VAWS V2.0 but prefers a compact tester with physical buttons.
