Tin quick disconnects - set of 120 elements

High Strength and Flexibility

The set includes transparent heat shrink connectors with high resistance to stretching and mechanical damage. Thanks to the use of special polyolefin, these connectors feature excellent flexibility, making them easy to apply even in hard-to-reach places.

Easy Application Thanks to Tin

The inner layer with tin allows for simple and quick connections. For optimal results, it is recommended to use hot air to shrink the connector and melt the hot melt adhesive, which will fill any gaps, ensuring a solid and durable connection. Remember to rotate the connector evenly while heating.

Moisture Protection

The connectors are designed to provide excellent water protection, making them an ideal choice for applications requiring waterproofing, such as marine, automotive, household, and electronic installations. The outer layer of polyolefin combined with the inner hot melt adhesive guarantees effective insulation.

Technical Specifications

• Minimum soldering temperature: 138°C
• Minimum shrinkage temperature: 80°C
• Operating temperature: from -55°C to 125°C

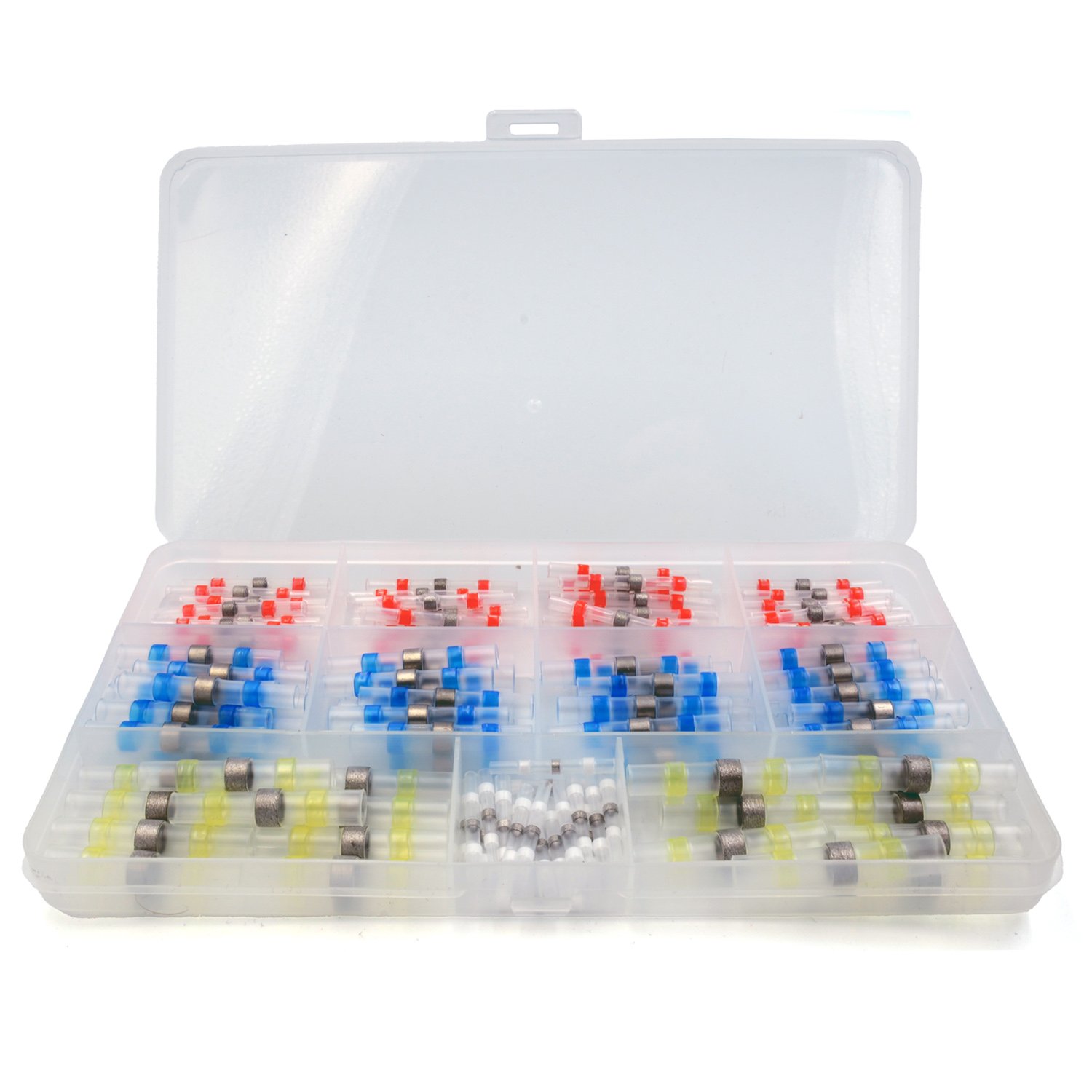

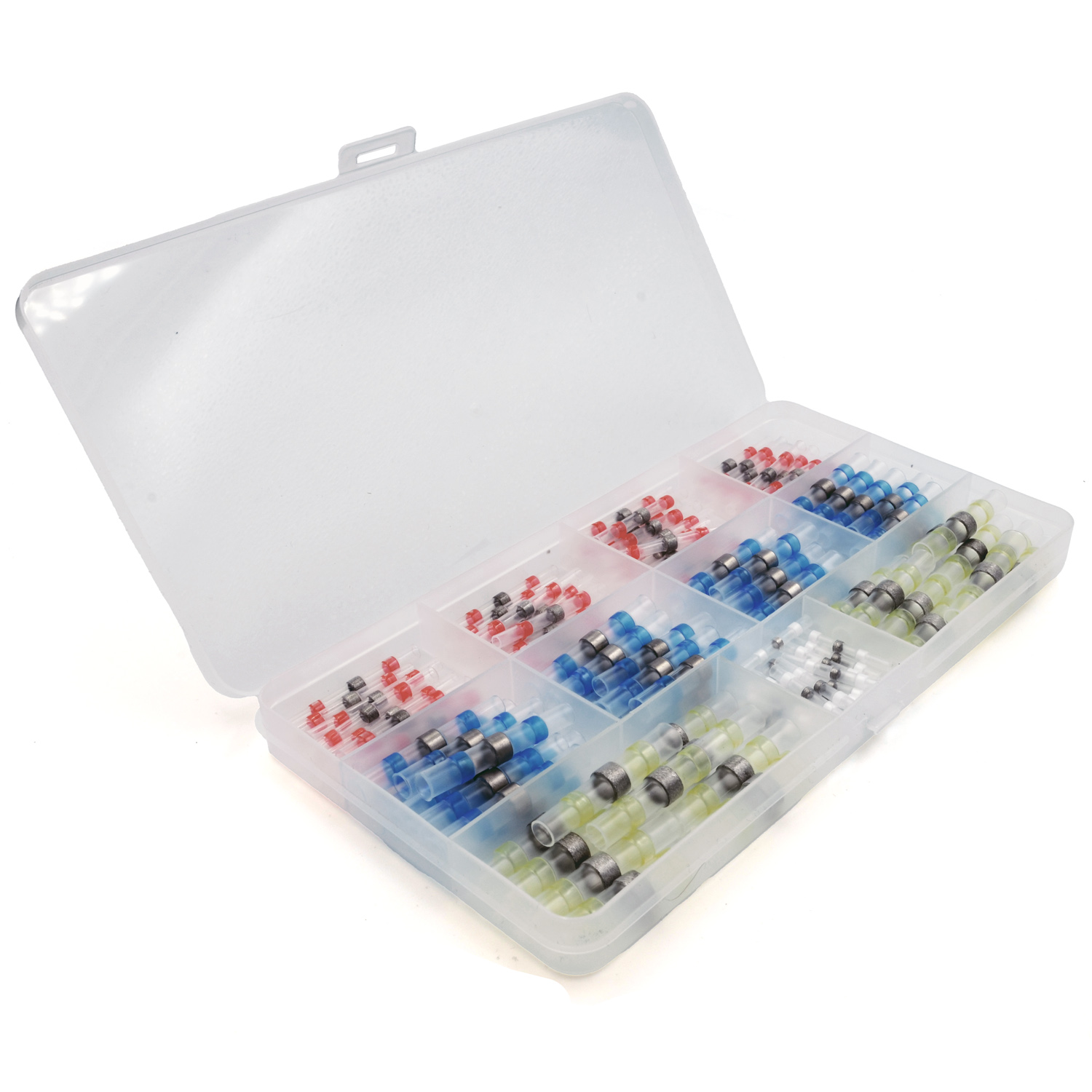

Contents of the Set and Dimensions

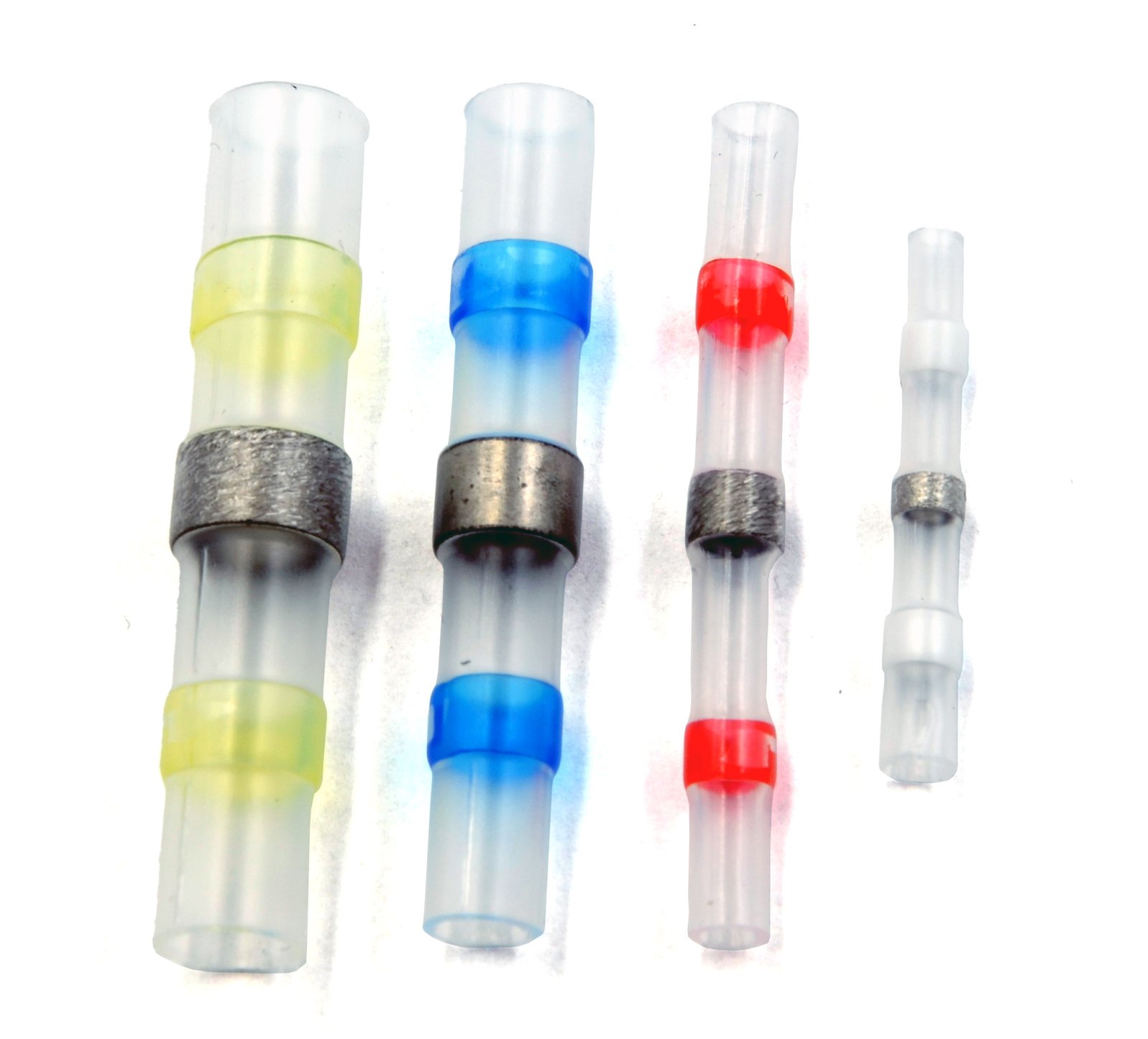

The set includes connectors in various sizes, suitable for wires of different diameters:

• White: 0.25-0.34 mm² - 20 pcs
• Red: 0.5-1.0 mm² - 40 pcs
• Blue: 1.4-2.5 mm² - 40 pcs
• Yellow: 4.0-6.0 mm² - 20 pcs

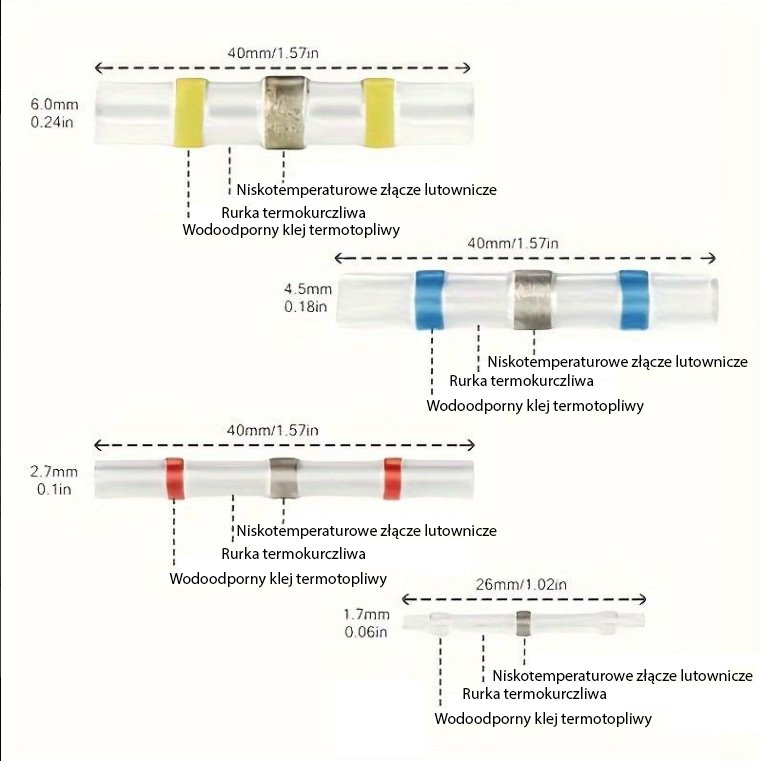

The diameter of the connectors corresponds to the colors:

• White: diameter 1.5mm
• Red: diameter 3.0mm
• Blue: diameter 5.0mm
• Yellow: diameter 6.0mm
