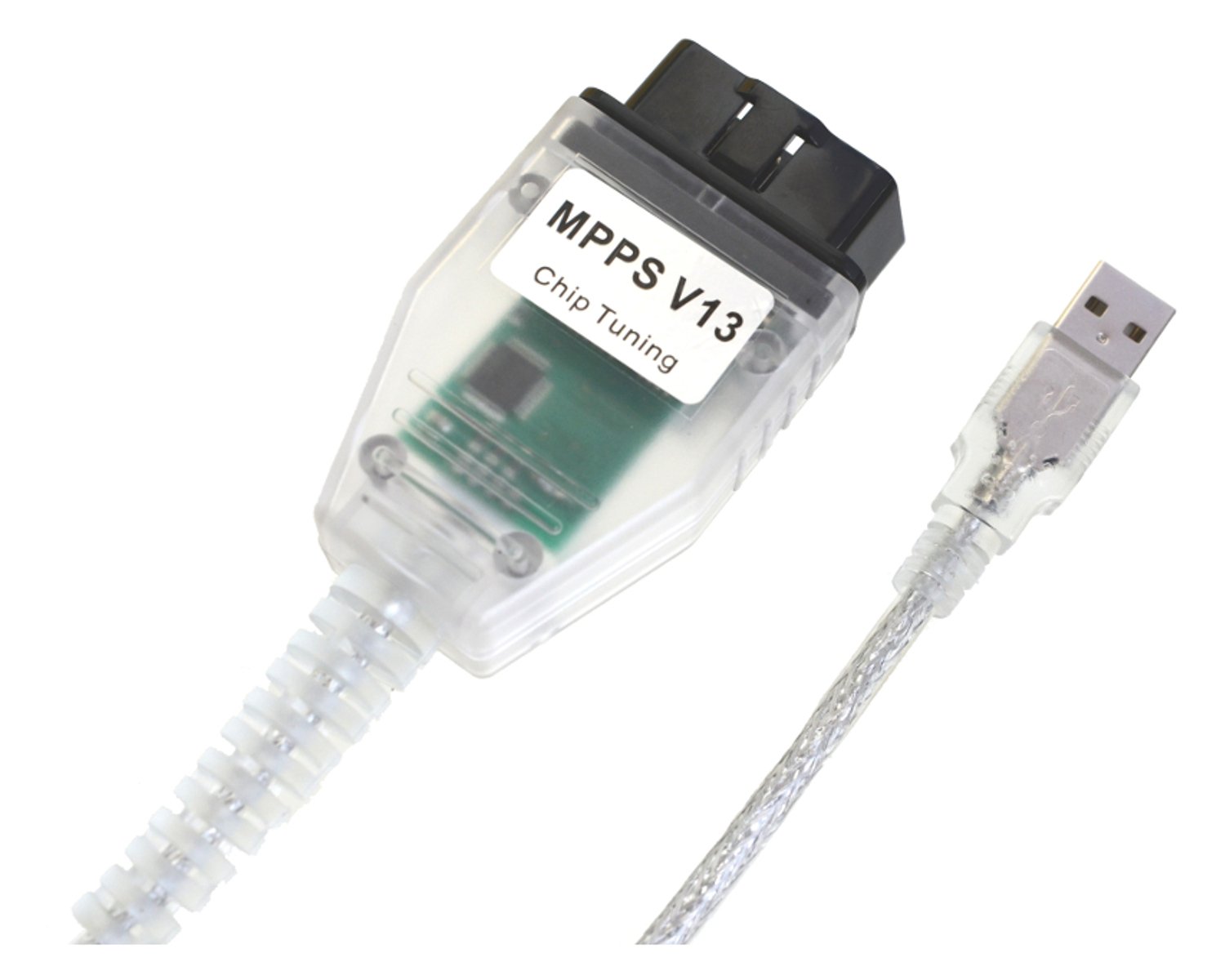

We are offering MPPS diagnostic interface version 13.02 in a set with DVD . It is a specialized tool for modifying FLASH memory in engine controllers (ECU). Thanks to this modification, it is possible to increase power, torque or remove the DPF filter. The interface works on virtually any computer equipped with a USB port. The device works with both 32-bit and 64-bit Windows systems.

WITH THE DEVICE, YOU CAN MODIFY THE LOADS IN SUCH DRIVERS AS: BOSCH: EDC15, EDC16, MEX.X, DELCO, DELPHI, SIEMENS, MARELLA AND MANY OTHER MENTIONED OUT IN THE FOLLOWING DESCRIPTION.

• SOFTWARE IN POLISH
• NO START COUNTER
• RELIABILITY
• A LARGE NUMBER OF SUPPORTED MODELS
• SUPPORT FOR LINE K, CAN AND UDS

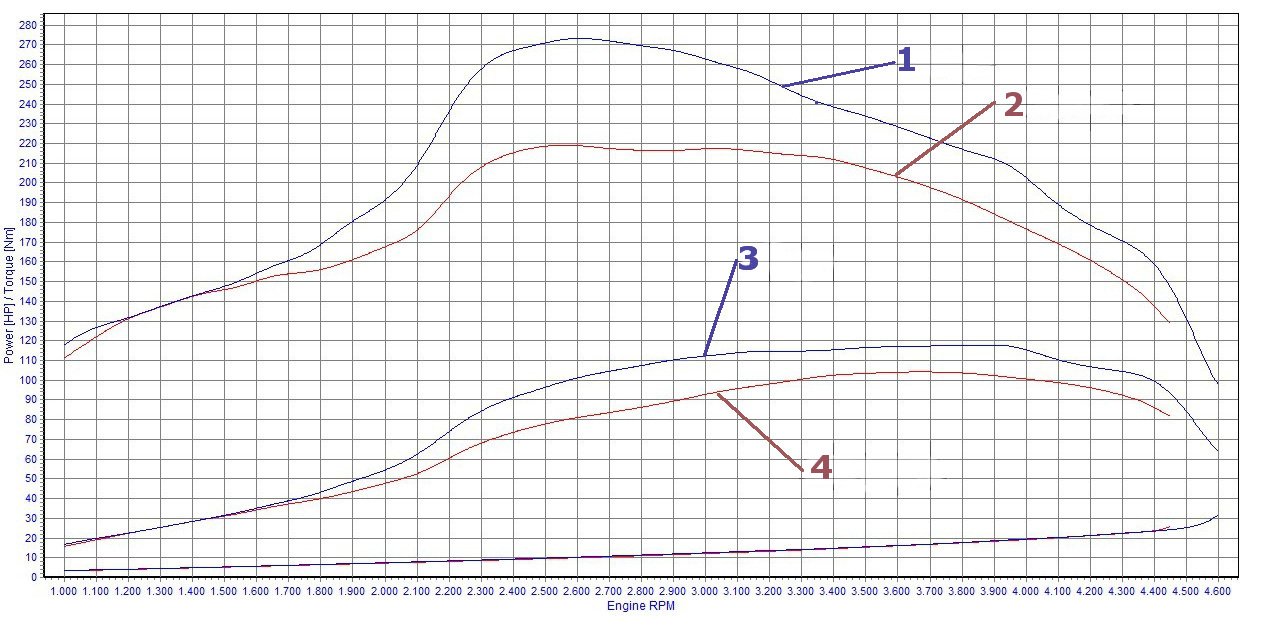

DIAGRAM FROM THE BRAKE BEFORE AND AFTER CHANGING THE MAP

• 1 - NM after
• 2 - NM before
• 3 - KM after
• 4 - KM before

DVD INCLUDED

• Installation instructions
• 3.25GB batches for various brands
• OBD2 error code list
• List of VAG error codes
• Location of OBD sockets
• Description of the OBD2 socket pins
• Driver Pinout
• Deleting inspections of different brands
• Fault codes
• ECU list and self-diagnosis
• Tire markings

WHAT IS CHIPTUNING

Chiptuting is the electronic increase of car engine power. The car becomes faster, more efficient and uses less fuel. Car manufacturers leave some power reserve to use.

Each car has an engine controller, i.e. a computer responsible for engine work in all conditions, speed and load. ECU parameters are prepared in such a way that the durability of the car is the highest, and not so that the engine develops the greatest power and torque.

HOW DOES THE INTERFACE WORK?

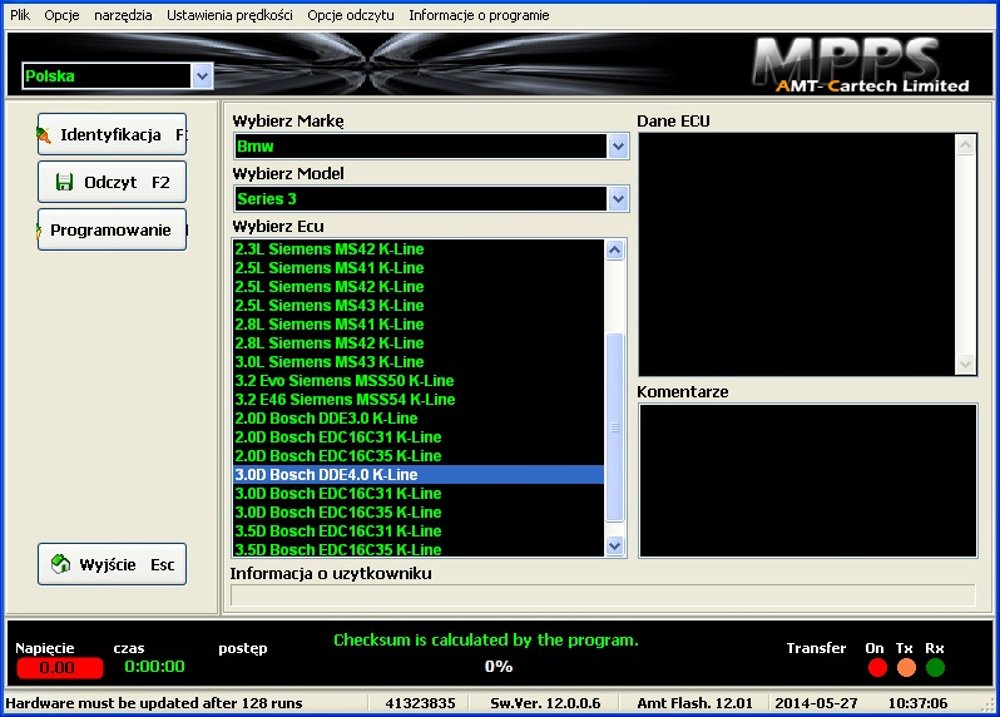

You connect the interface to the OBD2 connector in your car, read the contents of the memory, modify it using a program for example Winols, and upload it again. We usually use ready-made, previously modified memory maps. Thanks to this operation your car can gain dozens of additional horses. (all cars have a factory power reserve that is not used).

EXAMPLES OF APPLICATION

• Increased power
• Improving dynamics - torque
• Reducing fuel consumption
• Increase boot dose
• Remove maximum speed limit
• Remove FAP / DPF filter

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

OPEL

• 1.0 12v, Bosch, M1.5.5, Kline, Yes, Yes, No
• 1.0i Bosch ME7.6.2_CAN CAN
• 1.0 8v Bosch M1.5.5 K-Line
• 1.0 16v Bosch ME1.5.5 K-Line
• 1.2 16V, Bosch, ME1.5.5, Kline, Yes, Yes, No
• 1.2i Bosch ME7.6.2_CAN CAN
• 1.3 16v CDTI, Marelli, Multijet, Kline, Yes, Yes, Yes
• 1.4 16V, Delco, Multec, Kline, Yes, Yes, No
• 1.4i Bosch ME7.6.2_CAN CAN
• 1.6 16V, Delco, Multec, Kline, Yes, Yes, No
• 1.7 16V CDTI, Bosch, EDC16C9, Can, No, Yes, Yes
• 1.7 16V DT, Delco, LVP4, Kline, Yes, Yes, No
• 1.7 16V DT, Delco, LVP4, Kline, Yes, Yes, No
• 1.7 16V DTI, Bosch, EDC15M, Kline, Some, Yes, No
• 1.7 16V DTI, Delco, LVP11, Kline, Yes, Yes, No
• 1.7 TD, Bosch, EDC15M, Kline, Some, Yes, No
• 1.7 16V DTI Bosch EDC15M K-Line
• 1.7 16V CDTI Bosch EDC16C39 CAN
• 1.8 16V, Siemens, Simtec, Kline, Yes, Yes, No
• 1.8 16V, Siemens, Simtec 70, Kline, Yes, Yes, No
• 1.8 16V, Siemens, Simtec 90, Kline, Yes, Yes, No
• 1.9 16V CDTI, Bosch, EDC16C9, Can, No, Yes, Yes
• 1.9 TD, Bosch, EDC15C2, Kline, Yes, Yes, No
• 1.9 16V CDTI Bosch EDC16C39 CAN
• 2.0 16v, Bosch, ME1.5.5, Kline, Yes, Yes, No
• 2.0 16V, Siemens, Simtec, Kline, Yes, Yes, No
• 2.0 16V, Siemens, Simtec 70, Kline, Yes, Yes, No
• 2.0 16V, Siemens, Simtec 90, Kline, Yes, Yes, No
• 2.0 16V DTI, Bosch, EDC15M, Kline, Some, Yes, No
• 2.0 16v Turbo, Bosch, ME1.5.5, Kline, Yes, Yes, No
• 2.0 TD, Bosch, EDC15M, Kline, Some, Yes, No
• 2.0i Bosch ME7.6.2_CAN CAN
• 2.2 16V DTI, Bosch, EDC15M, Kline, Some, Yes, No
• 2.2 SRI, Delco, GM PT, Kline, Yes, Yes, No
• 2.5 TD, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.5 V6, Bosch, M2.8.3, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

PEUGEOT

• 1.1L, Bosch, MP7.4.4, Kline, Yes, Yes, No
• 1.4 HDI, Bosch, EDC16C3, Kline, Yes, Yes, Yes
• 1.4 HDI FAP Bosch EDC16C34 K-Line
• 1.6L Bosch MP7.4.4 K-Line
• 1.6 HDI, Bosch, EDC16C3, Kline, Yes, Yes, Yes
• 1.6 HDI FAP, Bosch, EDC16C34, Kline, Yes, Yes, Yes
• 2.0 HDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.2 HDI, Bosch, EDC15C2, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

PORSCHE

• 2.5L Bosch M5.2.2 K-Line
• 2.7L Bosch ME7.8.4 K-Line
• 2.7L Bosch ME7.8.4 K-Line on Bench
• 3.2L, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 3.2L Bosch ME7.8.4 K-Line
• 3.2L Bosch ME7.8.4 K-Line on Bench
• 3.4L Bosch ME7.8.4 K-Line
• 3.4L Bosch ME7.8.4 K-Line
• 3.4L Bosch M5.2.2 K-Line
• 3.6L Twin Turbo GT2 Bosch M5.2.2 K-Line
• 3.6L GT3 Bosch M5.2.2 K-Line
• 3.6L Bosch ME7.8.4 K-Line
• 3.6L Bosch ME7.8.4 K-Line on Bench
• 3.6L Twin Turbo Bosch ME7.8.4 K-Line
• 3.6L Twin Turbo Bosch ME7.8.4 K-Line on Bench
• 3.8L Bosch ME7.8.4 K-Line
• 3.8L Bosch ME7.8.4 K-Line on Bench
• 4.5L, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.5L Turbo, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.5L Turbo S, Bosch, ME7.1.1, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

RENAULT

• 1.5 DDCR, Delphi, DDCR, Kline, Yes, Yes, No
• 1.9 DCR, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.2 DCR, Bosch, EDC15C2, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

ROVER

• 2.0 CDT, Bosch, DDE4.0, Kline, Yes, Yes, Yes

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

SAAB

• 2.2 16V DTI, Bosch, EDC15M, Kline, Some, Yes, No
• 1.9 16V CDTI Bosch EDC16C39 CAN

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

SUZUKI

• 2.0 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 1.3 16v DDiS Marelli Multijet K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

VOLVO

• 1.9 CDI, Bosch, EDC15C3, Kline, Yes, Yes, No
• 2.0T Bosch ME7.0 K-Line
• 2.3T Bosch ME7.0 K-Line
• 2.4 D (D5), Bosch, EDC16C31, Kline, Yes, Yes, Yes
• 2.4T Bosch ME7.0 K-Line
• 2.5T Bosch ME7.0 K-Line
• 2.5 T Bosch ME9.0-CAN CAN
• 2.8T Bosch ME7.0 K-Line
• 3.0T Bosch ME7.0 K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

VAG: Audi / Seat / Skoda / VW

• 1.2 TDI, Bosch, EDC15, Kline, Yes, Yes, No
• 1.2 TDI_34 Bosch EDC15 K-Line
• 1.4 TDI, Bosch, EDC15, Kline, Yes, Yes, No
• 1.4 TDI_PD Bosch EDC15 K-Line
• 1.4L, Bosch ME7.5, Kline, Yes, Yes, No
• 1.4L Bosch ME7.1 K-Line
• 1.4 TSI Bosch MED9.5.10 K-Line / CAN
• 1.4 FSI Bosch MED9.5.10 K-Line / CAN
• 1.4 TSI Bosch MED9.5.10 K-Line / CAN
• 1.6 FSI, Bosch, MED9.5.10, Kline / Can, Yes, Yes, Yes
• 1.08.2009, Bosch, M5.92, Kline, No, Yes, No
• 1.8 NA Bosch M5.92 K-Line
• 1.8 Turbo, Bosch, M5.92, Kline, No, Yes, No
• 1.8L Bosch ME7.1 K-Line
• 1.8 Turbo, Bosch, ME7.5, Kline, Yes, Yes, No
• 1.9 TDI, Bosch, EDC15, Kline, Yes, Yes, No
• 1.9 TDI, Bosch, EDC16U1, Kline, Yes, Yes, Yes
• 1.9 TDI, Bosch, EDC16U31, Kline / Can, Yes, Yes, Yes
• 1.9 TDI, Bosch, EDC16U34, Kline / Can, Yes, Yes, Yes
• 1.9 TDI PD, Bosch, EDC16U1, Kline, Yes, Yes, Yes
• 1.9 TDI PD, Bosch, EDC16U31, Kline / Can, Yes, Yes, Yes
• 1.9 SDI Bosch EDC15 K-Line
• 1.9 SDI Bosch EDC16U31 K-Line / CAN
• 1.9 TDI DPF Bosch EDC17CP14 K-Line / CAN
• 2.0 20v, Bosch, ME7.5, Kline, Yes, Yes, No
• 2.0 FSI, Bosch, MED9.5.10, Kline / Can, Yes, Yes, Yes
• 2.0 FSI Turbo, Bosch, MED9.1, Can, Yes, Yes, Yes
• 2.0 TDI, Bosch, EDC17CP14, Kline / Can, Yes, Yes, No
• 2.0 TDI, Siemens, PPD 1.x, Can, Yes, Yes, No
• 2.0 TDI, Bosch, EDC16U1, Kline, Yes, Yes, Yes
• 2.0 TDI, Bosch, EDC16U31, Kline / Can, Yes, Yes, Yes
• 2.0 TDI, Bosch, EDC16U34, Kline / Can, Yes, Yes, Yes
• 2.0 TDI, Bosch, EDC16U34, Kline / Can, Yes, Yes, Yes
• 2.0 TDI PD, Bosch, EDC16U1, Kline, Yes, Yes, Yes
• 2.0 TDI PD, Bosch, EDC16U34, Kline / Can, Yes, Yes, Yes
• 2.0 TDI DPF Bosch EDC17CP14 K-Line / CAN
• 2.0 Turbo, Bosch, ME7.5, Kline, Yes, Yes, No
• 2.0L Bosch ME7.1 K-Line
• 2.0L, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 2.0L, Bosch ME7.5, Kline, Yes, Yes, No
• 2.0L Bosch M5.92 K-Line
• 2.0 SDI Bosch EDC16U1 K-Line
• 2.0 SDI Bosch EDC16U31 K-Line / CAN
• 2.3L Bosch ME7.1 K-Line
• 2.3L Bosch M5.92 K-Line
• 2.4L, Bosch, M5.92, Kline, No, Yes, No
• 2.4L, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 2.5 TDI, Bosch, EDC15, Kline, Yes, Yes, No
• 2.5 TDI, Bosch, EDC16U1, Kline, Yes, Yes, Yes
• 2.5 TDI, Bosch, EDC16U31-3.1, Kline / Can, Yes, Yes, Yes
• 2.5 TDI, Bosch, EDC16U34, Kline / Can, Yes, Yes, Yes
• 2.5L, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 2.5 TDI Bosch EDC15VM + K-Line
• 2.7 TDI, Bosch, EDC16CP, Kline / Can, Yes, Yes, Yes
• 2.7L Turbo, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 2.7L Turbo Bosch ME7.1 K-Line
• 2.7 TDI Bosch EDC16U34 K-Line / CAN
• 2.8L, Bosch, M5.92, Kline, No, Yes, No
• 2.8L 12v, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 2.8L 24v, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 2.8L 30v, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 2.9L Bosch ME7.1.1 K-Line
• 3.0 TDI, Bosch, EDC17CP04, UDS, Yes, No, No
• 3.0 TDI, Bosch, EDC16CP, Kline / Can, Yes, Yes, Yes
• 3.0L V6, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 3.0 V6 FSI Bosch MED9.5.10 K-Line / CAN
• 3.0 TDI Bosch EDC16U34 K-Line / CAN
• 3.0 TDI Bosch EDC17CP04 UDS
• 3.2L, Bosch, ME7.1.1 CAN, Can, Yes, Yes, No
• 3.2L, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 3.2 FSI Bosch MED9.5.10 K-Line / CAN
• 3.2 V6 FSI Bosch MED9.5.10 K-Line / CAN
• 3.6L V6 FSI Bosch MED9.1 CAN
• 3.6L V6 FSI Bosch MED9.5.10 K-Line / CAN
• 3.7L Turbo, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.0 TDI, Bosch, EDC16C4, Kline / Can, Yes, Yes, Yes
• 4.2L, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.2L Turbo, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.2L V8, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.2T, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.2L Bosch M5.92 K-Line
• 4.2T Quattro, Bosch, ME7.1.1, Kline, Yes, Yes, No
• 4.2 TDI Bosch EDC16C34 K-Line / CAN
• 4.2L Bosch MED9.1 CAN
• 5.0 TDI V10, Bosch, EDC16U1, Kline, Yes, Yes, Yes
• 5.2L Bosch MED9.1 CAN
• Generic Bosch Generic Bosch ME7.XX 512K Kline
• Generic Bosch Generic Bosch ME7.XX 1MB Kline
• Generic Bosch Generic Bosch EDC15XX Kline
• Generic Bosch Generic Multi ST10F280 Kline
• Generic Bosch Generic Multi ST10F296 Kline
• KTM X Bow 2.0 TFSI Bosch MED9.1 Can
• London Taxis International TX4 TX4 2.5 VM TDI
• Bosch EDC16C39 K-Line
• London Taxis International TX4 TX4 2.5 VM TDI
• Bosch EDC16C9 K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

MINI

• 1.6 S, Siemens, EMS 2, Kline, Yes, Yes, No
• 1.4D, Bosch, DDE4.0, Kline, Yes, Yes, Yes

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

MITSUBISHI

• 1.5l DI-D, Bosch, EDG16C33, Kline / Can, Yes, Yes, Yes
• 1.9 CDI, Bosch, EDC15C3, Kline, Yes, Yes, No
• 1.9 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.0 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.5 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

ALFA ROMEO / FIAT / LANCIA

• 1.1 E3, Marelli, IAW 59F, Kline, Yes, Yes, Yes
• 1.2 12V, Bosch, M1.5.5, Kline, No, Yes, Yes
• 1.2 16V, Bosch, ME7.3.1, Kline, Yes, Yes, No
• 1.2 16V Bosch ME7.H4 K-Line
• 1.2 8V, Marelli, IAW 59F, Kline, Yes, Yes, Yes
• 1.2L Marelli 5SF3.M1 / M2 CAN
• 1.3 JTDM, Marelli, Multijet, Kline, Yes, Yes, Yes
• 1.3 JTDM Marelli Multijet 6SF CAN
• 1.3 JTDM Marelli Multijet K-Line
• 1.3 JDTM Marelli Multijet K-Line
• 1.4 TS, Bosch, M1.5.5, Kline, No, Yes, Yes
• 1.6 16V, Marelli, IAW 49F, Kline, No, Yes, Yes
• 1.6 16V, Marelli, IAW 4EF, Kline, Yes, Yes, Yes
• 1.6 16V, Marelli, IAW 5NF, Kline, Yes, Yes, Yes
• 1.6 TS, Bosch, M1.5.5, Kline, No, Yes, Yes
• 1.6 TS, Bosch, ME7.3.1, Kline, Yes, Yes, No
• 1.8 TS, Bosch, M1.5.5, Kline, No, Yes, Yes
• 1.8 TS, Bosch, ME7.3.1, Kline, Yes, Yes, No
• 1.9 JDTM, Marelli, Multijet, Kline, Yes, Yes, Yes
• 1.9 JTD, Bosch, EDC15C, Kline, Yes, Yes, No
• 1.9 JTD, Bosch, EDC15C5, Kline, Yes, Yes, No
• 1.9 JTD, Bosch, EDC15C7, Kline, Yes, Yes, No
• 1.9 JTD, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 1.9 JTD 16V, Bosch, EDC16C8, Kline, Yes, Yes, Yes
• 1.9 JTD 16V, Bosch, EDC16C9, Kline, Yes, Yes, Yes
• 1.9 JTDM, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 1.9 JTDM, Bosch, EDC16C9, Kline, Yes, Yes, Yes
• 1.9 JDTM Marelli Multijet K-Line
• 2.0 24V, Bosch, ME3.1, Kline, Yes, Yes, No
• 2.0 24V, Bosch, ME7.3.1, Kline, Yes, Yes, No
• 2.0 24V Bosch ME7.H4 K-Line
• 2.0L Bosch ME7.3.1 K-Line
• 2.0 TD, Bosch, EDC5C2, Kline, Yes, Yes, No
• 2.0 TS, Bosch, M1.5.5, Kline, No, Yes, Yes
• 2.0 TS, Bosch, ME7.3.1, Kline, Yes, Yes, No
• 2.0 JTD Bosch EDC15C K-Line
• 2.2 TD, Bosch, EDC5C2, Kline, Yes, Yes, No
• 2.3 JTD Bosch EDC15C K-Line
• 2.4 JTD, Bosch, EDC15C, Kline, Yes, Yes, No
• 2.4 JTD, Bosch, EDC15C7, Kline, Yes, Yes, No
• 2.4 JTD, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.4 JTD 20V, Bosch, EDC16C8, Kline, Yes, Yes, Yes
• 2.4 JTD 20V Bosch EDC16C9 K-Line
• 2.4 JTDM, Bosch, EDC16C9, Kline, Yes, Yes, Yes
• 2.8 JTD Bosch EDC15C K-Line
• 3.0 TS, Bosch, M1.5.5, Kline, No, Yes, Yes
• 3.0 V6, Bosch, ME7.3.1, Kline, Yes, Yes, No
• 3.0 V6 24V, Bosch, ME3.1, Kline, Yes, Yes, No
• 3.2 24v, Bosch, ME7.3.1, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

BMW

• 1.9L, Bosch M5.2, Kline, Yes, Yes, No
• 1.9L, Bosch M5.2.1, Kline, Yes, Yes, No
• 2.0 u 2.8, Siemens, MS41, Kline, Yes, Yes, No
• 2.0 / 2.8, Siemens, ms42, Kline, Yes, Yes, No
• 2.0D, Bosch, EDC16C31, Kline, Yes, Yes, Yes
• 2.0D, Bosch, EDC16C35, Kline, Yes, Yes, Yes
• 2.0D, Bosch, DDE3.0, Kline, Yes, Yes, No
• 2.0L, Siemens, MS41, Kline, Yes, Yes, No
• 2.0L, Siemens, ms42, Kline, Yes, Yes, No
• 2.2L, Siemens, MS43, Kline, Yes, Yes, No
• 2.2L Siemens MS42 K-Line
• 2.3L, Siemens, MS41, Kline, Yes, Yes, No
• 2.3L, Siemens, ms42, Kline, Yes, Yes, No
• 2.5D, Bosch, DDE4.0, Kline, Yes, Yes, Yes
• 2.5D Bosch EDC16C31 K-Line, Yes, Yes, Yes
• 2.5L Siemens MS41 K-Line
• 2.5L Siemens MS42 K-Line
• 2.5L, Siemens, MS43, Kline, Yes, Yes, No
• 2.8L, Siemens, MS41, Kline, Yes, Yes, No
• 2.8L, Siemens, ms42, Kline, Yes, Yes, No
• 3.0D, Bosch, EDC16C31, Kline, Yes, Yes, Yes
• 3.0D, Bosch, EDC16C35, Kline, Yes, Yes, Yes
• 3.0D, Bosch, DDE4.0, Kline, Yes, Yes, Yes
• 3.0L, Siemens, MS43, Kline, Yes, Yes, No
• 3.0L, Siemens, MSS52, Kline, Yes, Yes, No
• 3.2 E46, Siemens, MSS52, Kline, Yes, Yes, No
• 3.2 E46 Siemens MSS54 K-Line
• 3.2 Evo, Siemens, MSS50, Kline, Yes, Yes, No
• 3.8L V8, Bosch, M5.2, Kline, Yes, Yes, No
• 3.8L V8, Bosch, M5.2.1, Kline, Yes, Yes, No
• 4.0 / 4.4 V8, Bosch, M5.2, Kline, Yes, Yes, No
• 4.0 / 4.4 V8, Bosch, M5.2.1, Kline, Yes, Yes, No
• 4.4 / 4.6L V8, Bosch, ME7.2, Kline, Yes, Yes, No
• 4.4L / 4.6L, Bosch ME7.2, Kline, Yes, Yes, No
• 4.4L, Siemens, MSS52, Kline, Yes, Yes, No
• 5.0L V8 M5, Siemens, MSS52, Kline, Yes, Yes, No
• 5.0L V8 Siemens MSS54 K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

CHRYSLER

• 2.2l CRD, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.2L CRD Bosch EDC16C2-9 K-Line / CAN
• 2.5l CRD, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.7l CRD, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.8l CRD, Bosch, EDC15C2, Kline, Yes, Yes, No
• 3.0l CRD, Bosch, EDC16CP31, Kline / Can, Yes, Yes, Yes
• 3.0l CRD, Bosch, EDC16CP31-8, Kline / Can, Yes, Yes, Yes

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

CITROEN

• 1.4 16v HDI, Delphi, DDCR, Kline, Yes, Yes, No
• 1.4 HDI, Bosch, EDC16C3, Kline, Yes, Yes, Yes
• 1.6 HDI, Bosch, EDC16C3, Kline, Yes, Yes, Yes
• 1.6 VTR, Bosch, MP7.4.4, Kline, Yes, Yes, No
• 2.0 HDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.2 HDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.2 HDI Bosch EDC15C
• 2.8 HDI Bosch EDC15C K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

FERRARI

• Bosch ME7.3H4 K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

FORD

• 1.6 TDI, Bosch, EDC16C3, Kline / Can, Yes, Yes, Yes
• 1.6 TDI, Bosch, EDC16C34, Kline / Can, Yes, Yes, Yes
• 1.6 TDCI Bosch EDC16C3 K-LineCAN
• 1.6 TDCI Bosch EDC16C34 K-LineCAN
• 1.9 TDI, Bosch, EDC15C, Kline, Yes, Yes, No
• 2.5 T, Bosch, ME9.0-CAN, Can, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

HONDA

• 1.5 CDI, Bosch, EDC15C7, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

HYUNDAI

• 1.5 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.0 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.2 CDTi Bosch EDC16C7 K-Line
• 2.2 CDTi Bosch EDC16C2-4 K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

IVECO

• 2.3 29 L 10, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.3 29 L 12, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.3 35 C 9, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.3 35 C 10, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.3 35 C 12, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.3 35 S 10, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.8 35 C 13, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.8 35 C 14, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.8 35 C 15, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.8 35 S 13, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.8 40 C 15, Bosch, EDC16C, Kline, Yes, Yes, Yes
• 2.8 60 C 15 Bosch EDC16C K-Line
• 3.0 35 C 17, Bosch, EDC16C, Kline, Yes, Yes, Yes

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

ISUZU

• D-Max 3.0L DT Bosch EDC15M K-Line
• 2.5L DT Bosch EDC15M K-Line

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

KIA

• 2.0 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.5 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

LAND ROVER

• 2.0 CDT, Bosch, DDE4.0, Kline, Yes, Yes, Yes
• 2.5 T, Lucas, Mems3, Kline, Yes, Yes, No
• 2.5 TD5 Lucas Mems3 K-Line
• 3.0 TD6, Bosch, DDE4.0, Kline, Yes, Yes, Yes
• 4.4 / 4.6L V8, Bosch, ME7.2, Kline, Yes, Yes, No

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

MMC SMART

• 600cc Bosch, MEG1.0, Kline, No, Yes, No
• 700cc Bosch, MEG1.1, Kline, No, Yes, No
• 800cc Bosch, EDG15C5, Kline, Yes, Yes, No
• 1.5l Cdi, Bosch, EDG16C33, Kline / Can, Yes, Yes, Yes

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

MERCEDES

• 1.7 CDI Bosch EDC15C2 K-Line
• 2.0 CDI, Bosch, EDC15C6, Kline, Yes, Yes, No
• 2.0 CDI Bosch EDC15C5 K-Line
• 2.0 CDI Bosch EDC16C2 / 3/4 K-Line / CAN
• 2.0 CDI Bosch EDC16C31 K-Line / CAN
• 2.0 CDI Bosch EDC16C32 K-Line / CAN
• 2.2 CDI Bosch EDC15C5 K-Line
• 2.2 CDI, Bosch, EDC15C6, Kline, Yes, Yes, No
• 2.2 CDI, Bosch, EDC15C2, Kline, Yes, Yes, No
• 2.2 CDI, Bosch, EDC15C6, Kline, Yes, Yes, No
• 2.2 CDI, Bosch, EDC16C2 / 3/4, Kline / Can, Yes, Yes, Yes
• 2.2 CDI, Bosch, EDC16C31, Kline / Can, Yes, Yes, Yes
• 2.2 CDI, Bosch, EDC16CP31, Kline / Can, Yes, Yes, Yes
• 2.7 CDI, Bosch, EDC15C6, Kline, Yes, Yes, No
• 2.7 CDI Bosch EDC16C2 / 3/4 K-Line / CAN
• 2.7 CDI Bosch EDC16C31 K-Line / CAN
• 2.8 CDI Bosch EDC16C2 / 3/4 K-Line / CAN
• 2.8 CDI Bosch EDC16C31 K-Line / CAN
• 3.0 CDI, Bosch, EDC15C6, Kline, Yes, Yes, No
• 3.0 CDI Bosch EDC16C31 K-Line / CAN
• 3.0 CDI, Bosch, EDC16CP31, Kline / Can, Yes, Yes, Yes
• 3.0 CDI Bosch EDC16C2 / 3/4 K-Line / CAN
• 3.2 CDI, Bosch, EDC15C6, Kline, Yes, Yes, No
• 3.2 CDI Bosch EDC16C2 / 3/4 K-Line / CAN
• 3.2 CDI Bosch EDC16C31 K-Line / CAN
• 3.2 CDI Bosch EDC16CP31 K-Line / CAN
• 4.2 V8 CDI Bosch EDC16CP31 K-Line / CAN

ENGINE, PROD, ECU, ECU TYPE, CONNECTION, READING, WRITE, CHECKSUM

MG

• 2.0 CDTI, Bosch, DDE4.0, Kline, Yes, Yes, Yes

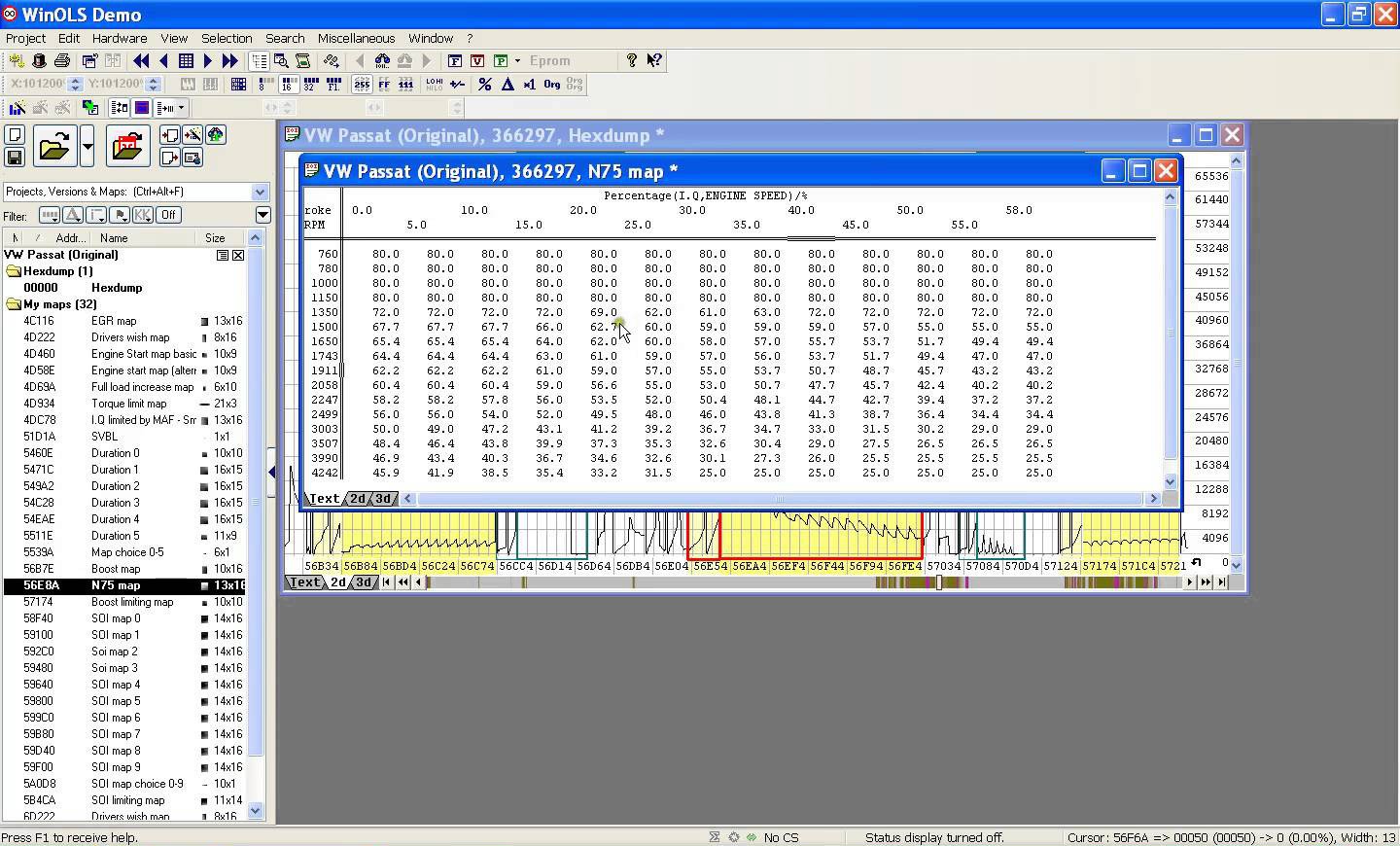

SCREENSHOTS OF EXAMPLES PROGRAMS

PACKAGE CONTENTS

• MPPS V13 chip tuning interface
• DVD
• Polish manual and lifetime technical support
• Powerful base of charges
